Holybro PM03D Power Module with I2C Digital Power Monitoring

The Holybro PM03D Power Module is a high-precision digital power management unit designed for Pixhawk 5X, 6X, and other flight controllers that support I2C-based power monitoring. By using I2C digital communication instead of analog voltage sensing, the Holybro PM03D Power Module provides cleaner, more accurate current readings, stable voltage telemetry, and improved noise immunity for advanced drone builds. It is not compatible with analog-based systems such as Pixhawk 4, Pixhawk 6C, Pix32 v5, Durandal, or their Mini versions.

Engineered for multirotors like the X500 V2, this module includes preinstalled XT-60 and XT-30 connectors for straightforward integration with batteries, ESCs, and peripherals. The onboard regulators offer two independent 5.2V BEC outputs plus a selectable 8V/12V output, making it ideal for powering companion computers, GPS units, cameras, and other mission-critical electronics. With a current sensing capability up to 164A and durable 12AWG XT60 wiring, the Holybro PM03D Power Module ensures reliable power delivery for demanding aerial platforms.

This module is fully plug-and-play with QGroundControl and Mission Planner, reducing setup time and eliminating configuration errors. Whether you are upgrading an existing aircraft or building a new system, the Holybro PM03D Power Module provides stable power, accurate telemetry, and dependable performance.

Note

• The full setup guide can be found here.

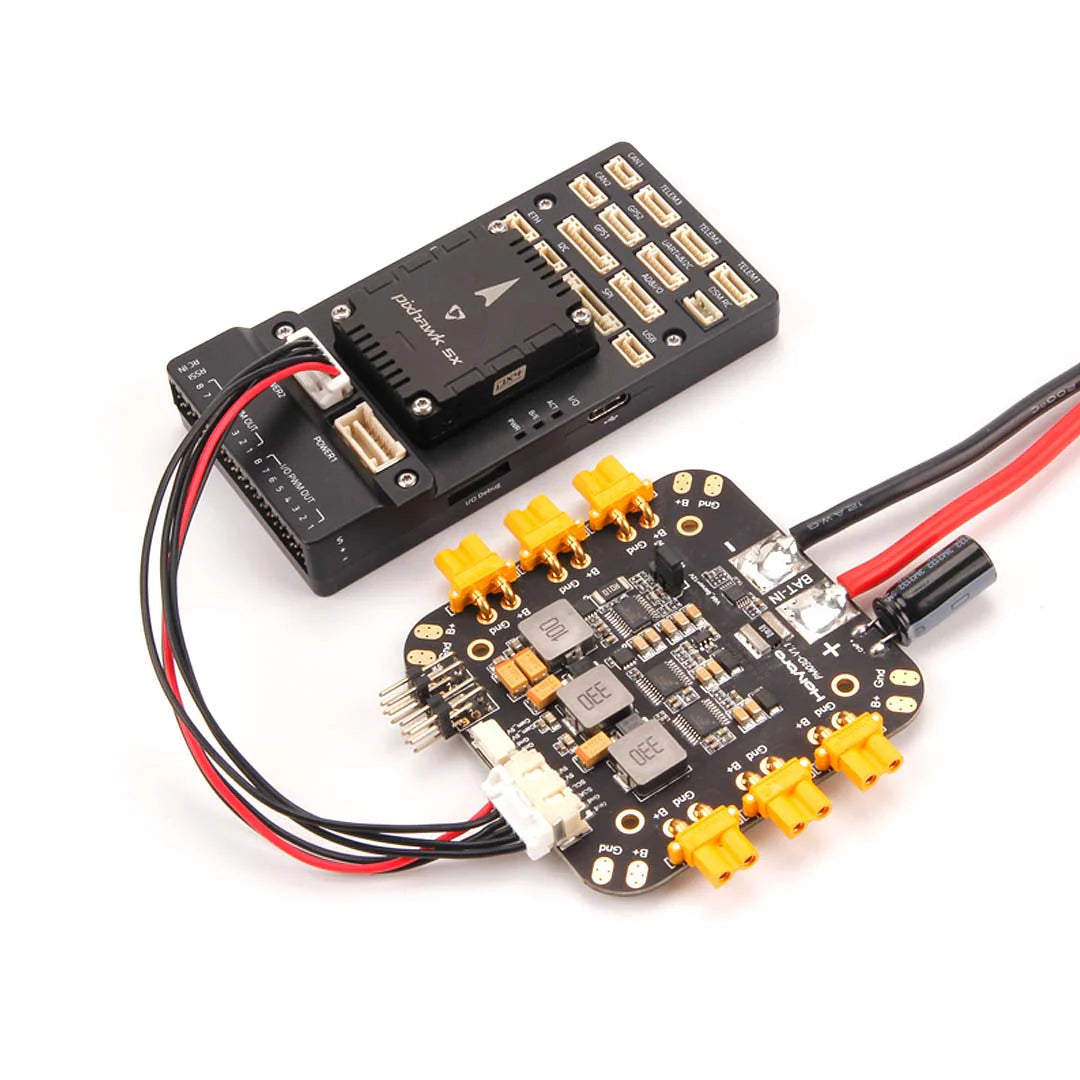

• This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series.
  • NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
• Power Module Comparison Table

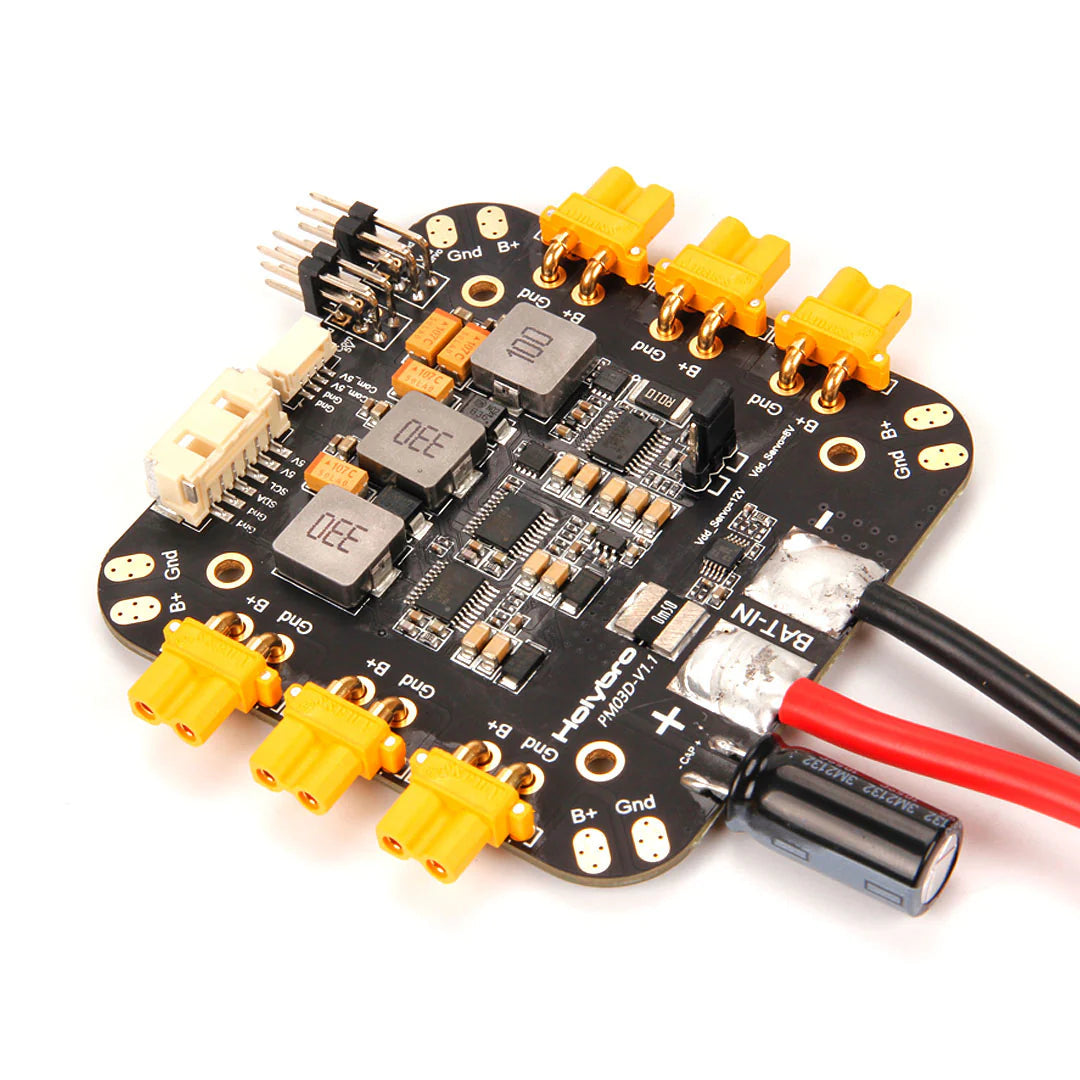

Features

•    Plug & play, no additional setup required for QGroundcontrol & Mission Planner
•    XT-30 connectors and solder pads for easy motor ESC connection
•    Onboard voltage regulators: two 5.2V & one selectable 8V/12V
•    5V/A ports for powering companion computer or peripheral devices
•    Selectable 8V or 12V triple row pin header for powering peripheral device

Technical Specification

• Maximum input voltage: 6S battery

• Rated current: 60A

• Max current: 120A (<60 Sec)

• Max current sensing: 164A

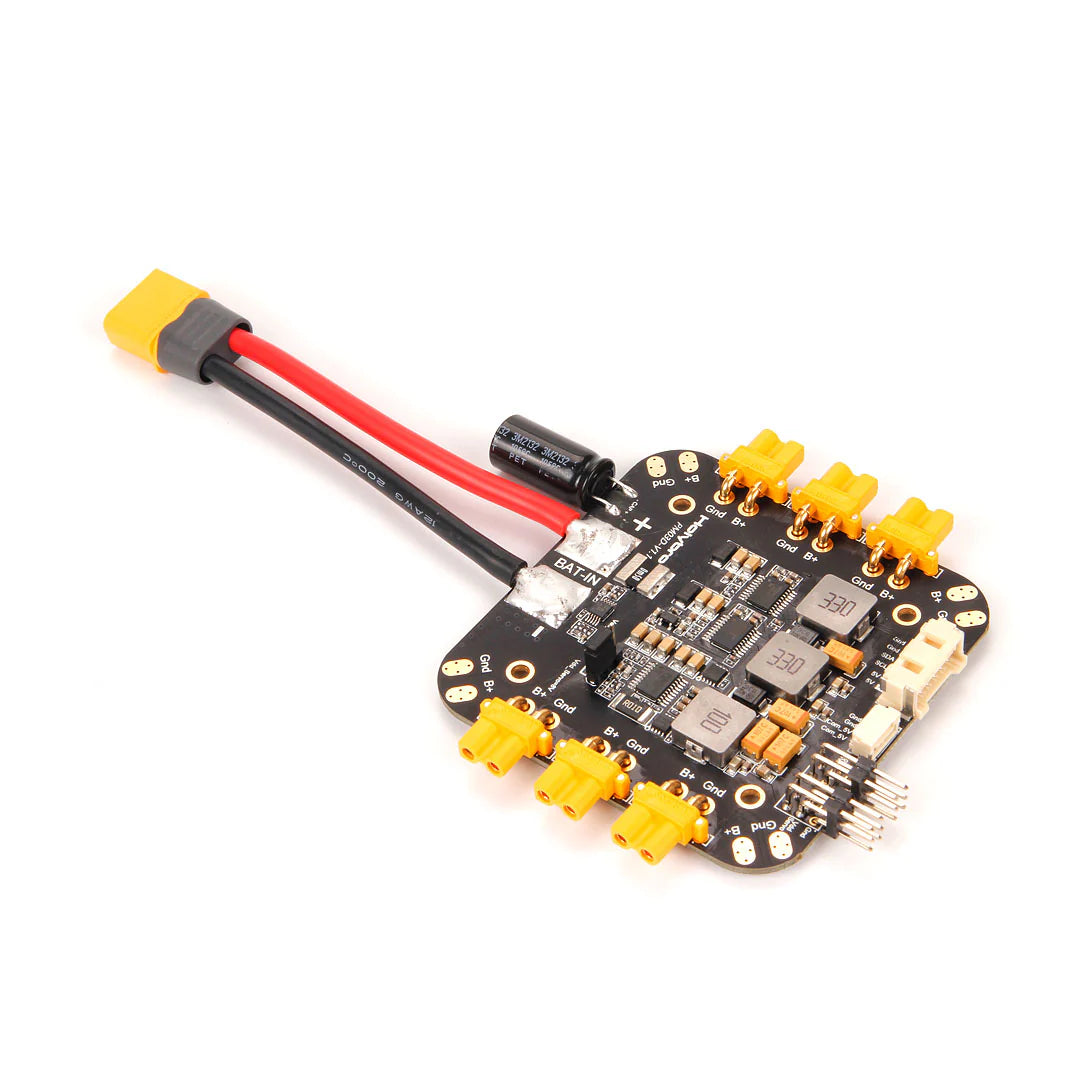

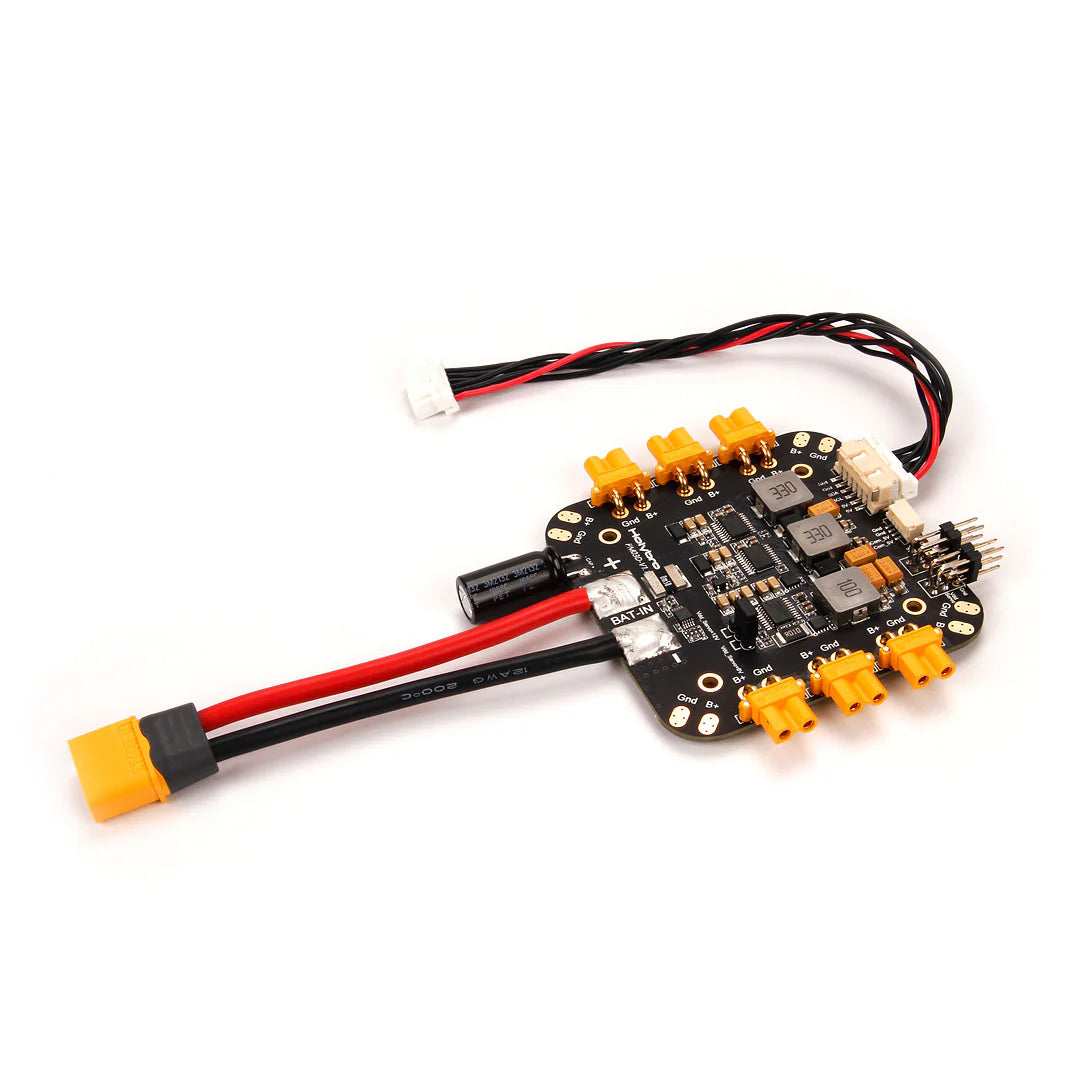

• Connections

  • XT-60 for battery

  • XT-30 for motor & peripheral device (battery voltage)

  • Solder pads in each corner (battery voltage)

  • CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)

  • JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)

  • 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)

  • 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)

• Dimension: 84*78*12mm (excluding wires)

• Mounting: 45*45mm

• Weight: 59g

The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

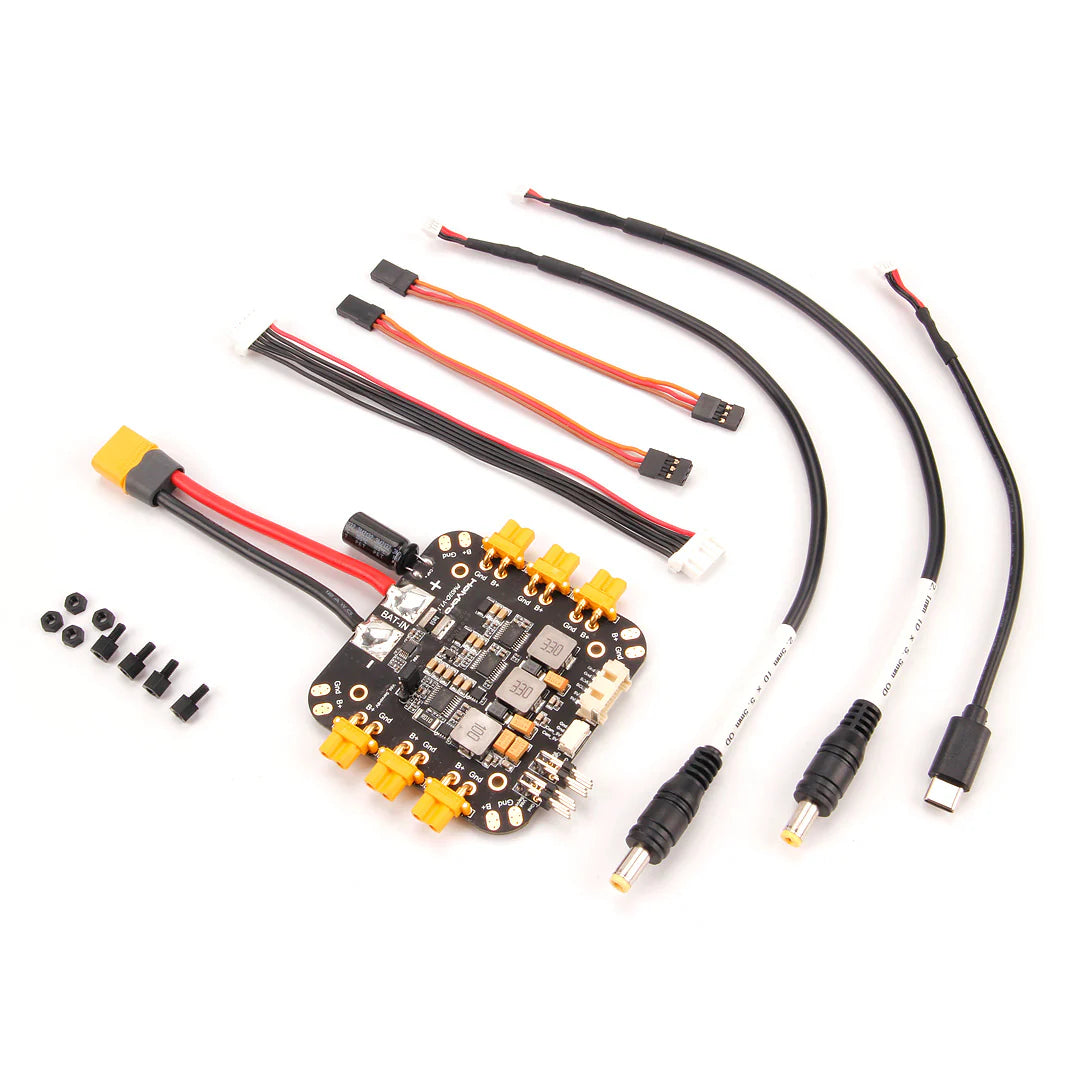

Package Includes

• 1x PM06 board

• 1x 80mm XT60 connector wire (pre-soldered)

• 1x Electrolytic capacitor: 220uF 63V (pre-soldered)

• 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)

• 4pin JST GH to USB Type C

• 4pin JST GH to barrel plug (2.1*5.5mm)

• 4pin JST GH to barrel plug (2.5*5.5mm)

• 4pin Pin Dupont Cable (2pc)

• Nylon standoffs & nuts

Downloads:

PM03D Manual
