Skyzone SKY04X Pro FPV Goggle Overview

The Skyzone SKY04X Pro goggles are the upgraded version of the SKY04X, featuring new optics and a new OLED panel for a more immersive FPV experience. With a 52-degree field of view, 1920×1080 resolution, and a 100FPS frame rate, these FPV goggles are designed to deliver a sharper, smoother view when using a digital VRX system. The new black matte finish helps avoid fingerprints and reduce glare for a cleaner look in use.

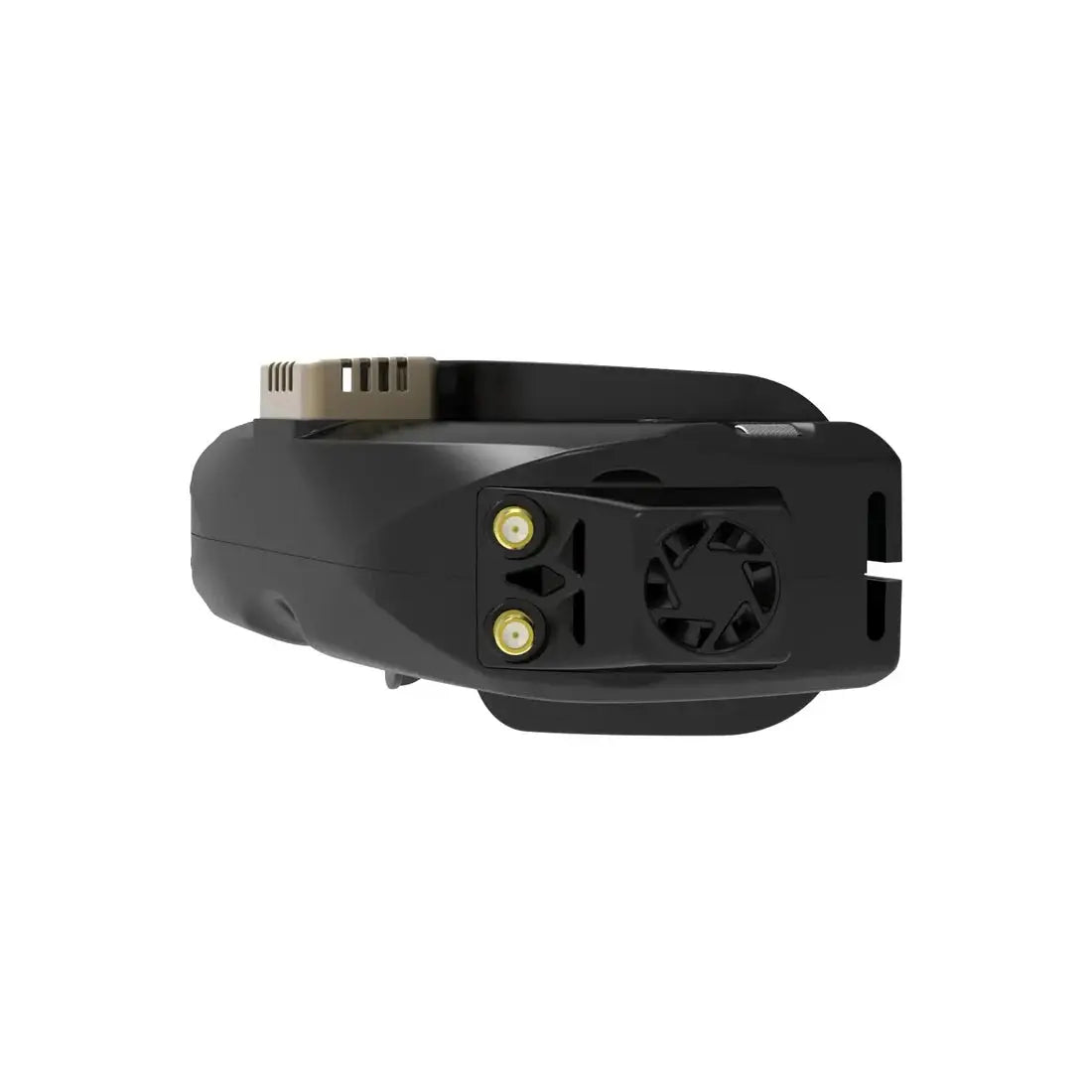

To cool the high-performance OLED panel, the right-side bay includes a cooling fan, so the SKY04X Pro does not support quadversity mode.

Key Specifications

Screen: OLED
Resolution: 1920*1080
FOV (Diagonal): 52°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable
Interpupillary distance (IPD): 58-71mm

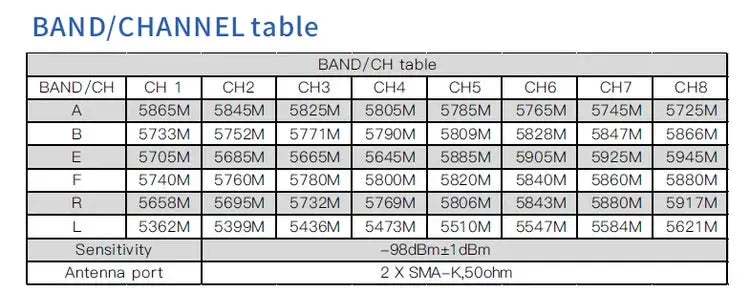

Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
DVR: H264, 60fps
Voltage Input: 2~6S LiPo
HDMI IN: 720P 100FPS
Head Tracker: 3-axis accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

Skyzone SKY04X Pro Steadyview receiver update version

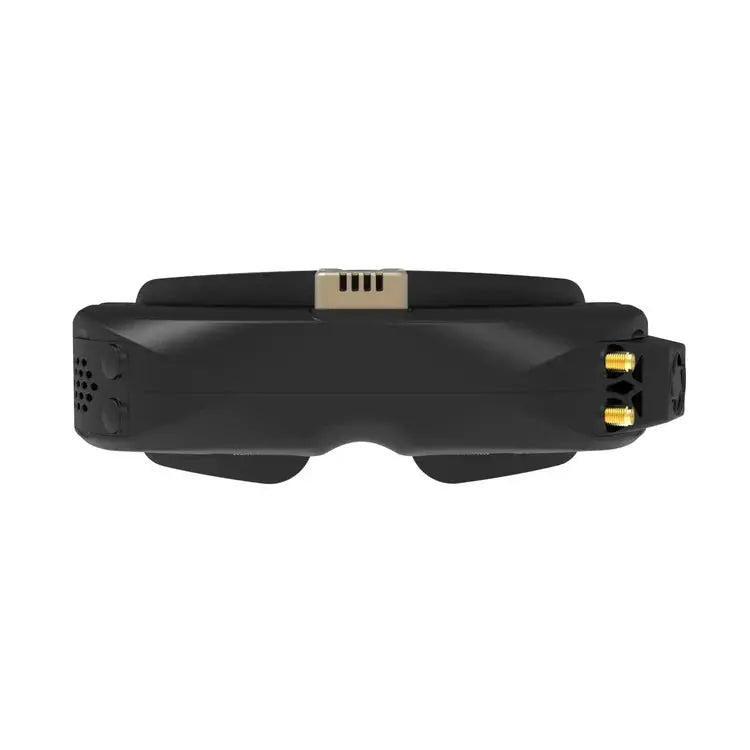

Skyzone SKY04X Pro FPV goggles front view with black matte finish
Skyzone SKY04X Pro goggles product image

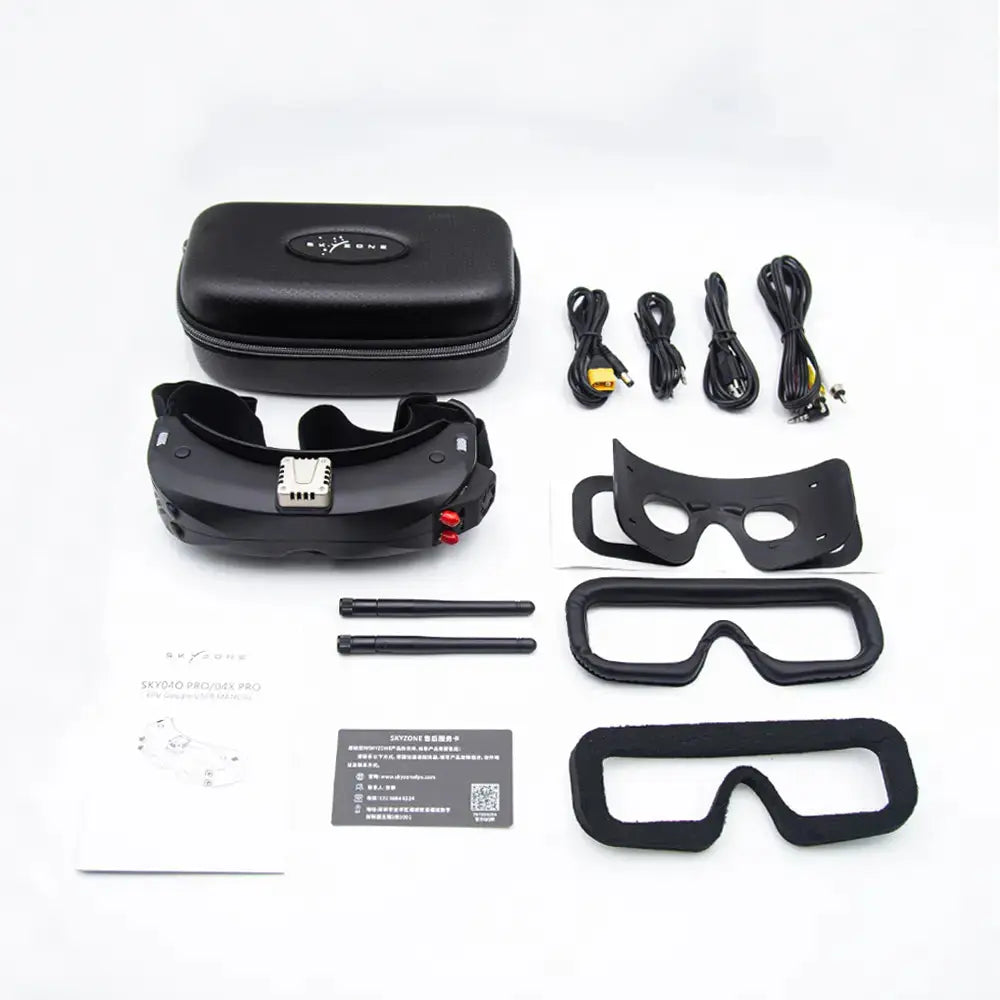

Package Included

1x SKY04X Pro Goggles
1x Steadyview V3.3 Receiver Module
2x Faceplate (wide and narrow)
1x Sponge with Velcro
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8GHz 2dB antennas
1x Video/Audio Cable
1x USB-C Cable
1x SKY04X Pro User Manual


Skyzone SKY04X Pro goggles feature detail 2
Skyzone SKY04X Pro goggles feature detail 3
Skyzone SKY04X Pro goggles feature detail 4
Skyzone SKY04X Pro goggles feature detail 5
Skyzone SKY04X Pro goggles feature detail 6
Skyzone SKY04X Pro goggles feature detail 7
Skyzone SKY04X Pro goggles feature detail 8
Skyzone SKY04X Pro goggles feature detail 9
Skyzone SKY04X Pro goggles feature detail 10
