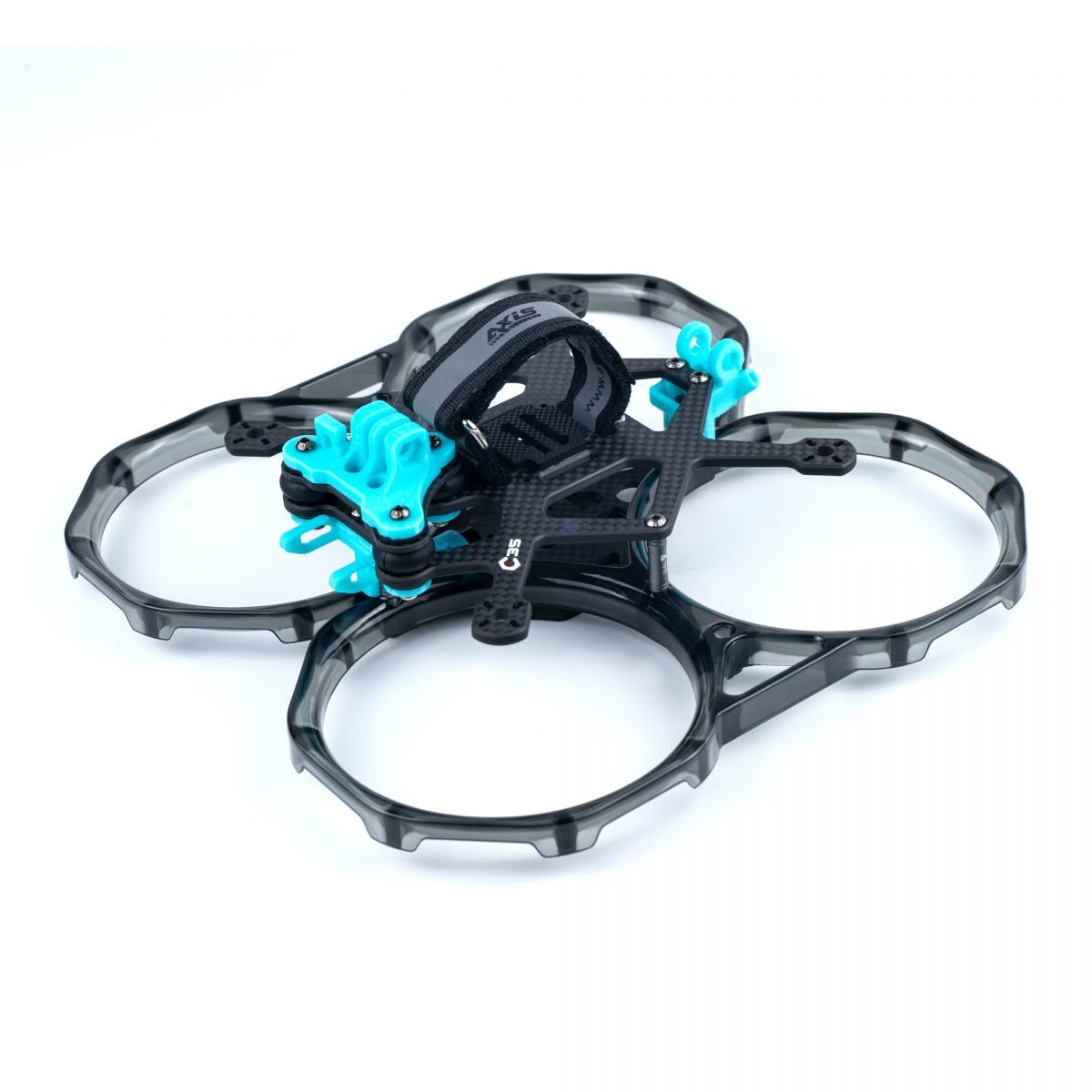

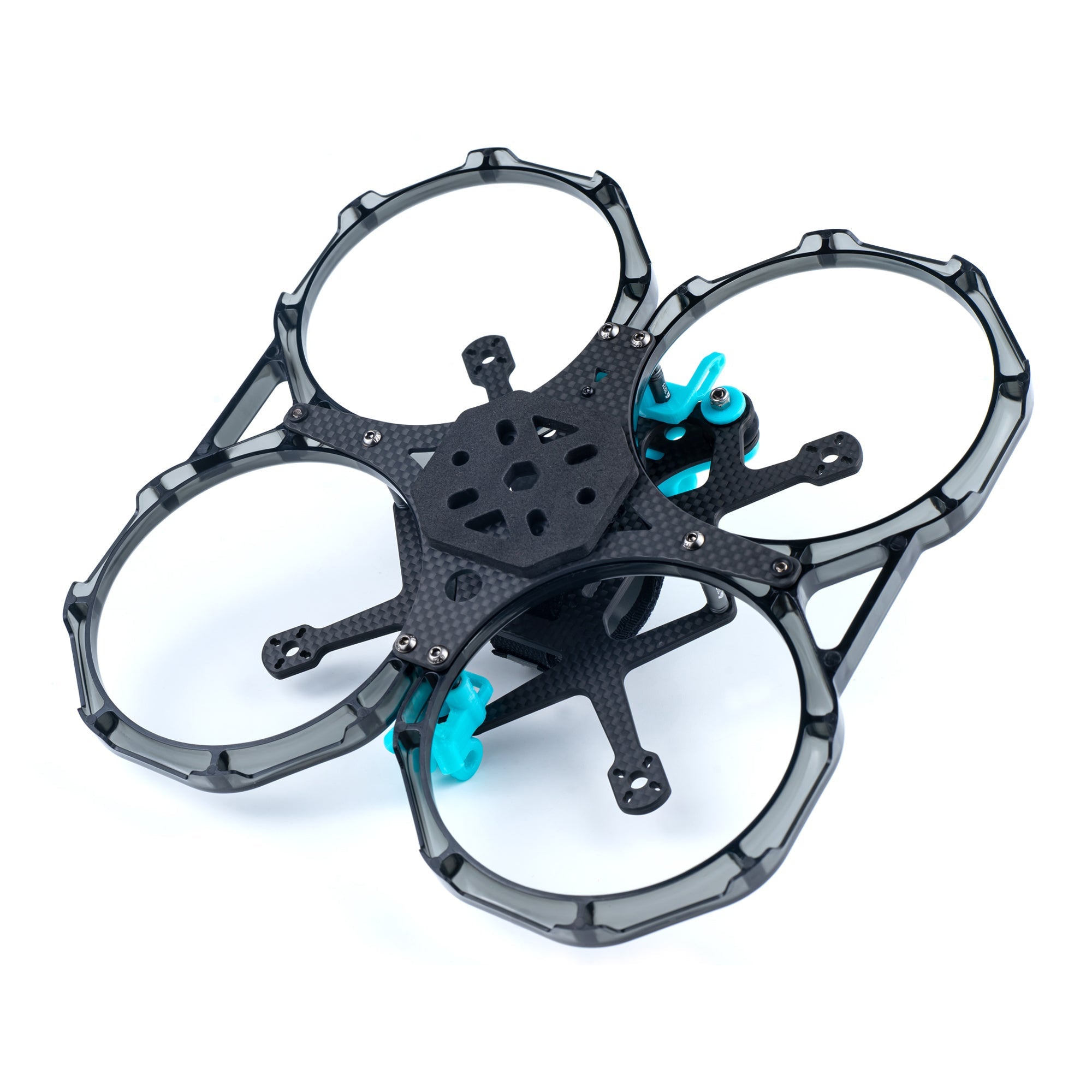

Axisflying Cinewhoop CineON series C35/3.5inch frame Kit
*Forword
- CINEON series are born for cinematic. C35 cinewhoop drone designes for cinematic indoor and outside shooting. Axisflying researched cinewhoop marketing and discussed with some pilots. We spent some months to develop different guard's structure and release innovation quick-release guard finally.
- C35 drone has very good performance, stable flying feel, low noise, and get about 9mins flying time
*Feature
- 1 mins fast disassembly of theguards- New quick release guard design
- Better wind resistance for smoother footage - C224 Motor, more torque and power
- Provide adequate security for the whoop - High performance 40A/F722 AIO
- No jello for more stable footage - Triangular shock-absorbing gimbal
- The strength has been improved ,don't worry about crash - The frame is fixed with 6 customized M3-7075 standoffs
- Reducing the risk of lost drone - Thedrone and theframe kit are equipped withbeeper as standard
- Newly designed ducted aerodynamic layout to effectively reduce flight noise
- Independent receiverstorage, convenient for binding
- Support 12mm/9mm motor mounting
- 27mm height, compatible with most VTX

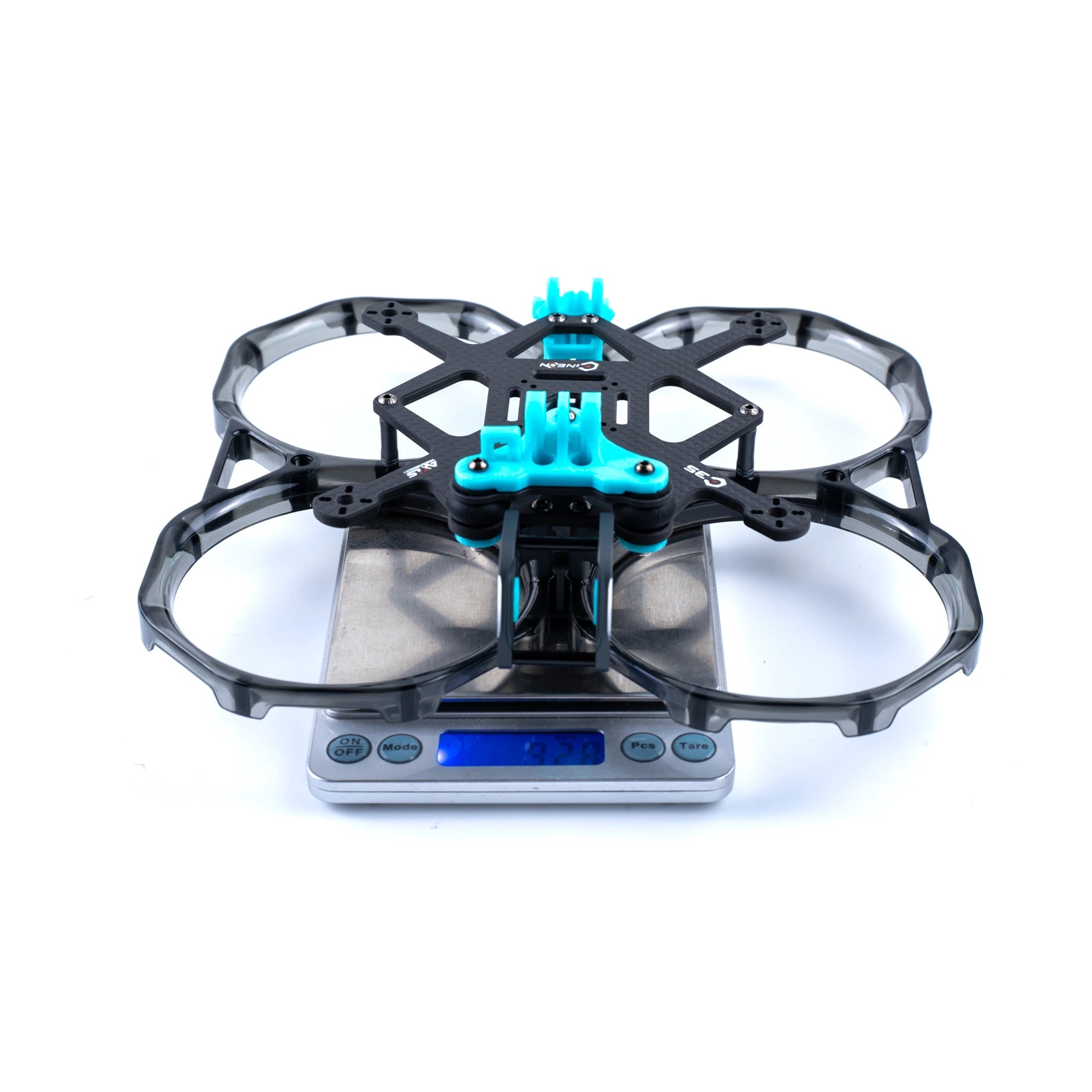

- Wheelbase :152mm / Weight: 140.7g (with all TPU) / Carbon Fiber: T700 / Props: Max 3.5inch
*Recommended Configuration
- MOTORS: Axisflying C224-1900KV or C206-1960KV @6S / 3500KV @4S
- Lipos: Tattu / GNB 1050mah - 1500mah
- AIO: Over 35A / F722
- Propellers: Gemfan D90-3 and HQ DT90-3
- Flying time: 7'10" with GoPro 10 / 8' with GoPro 8 / 9'30" with DJI Action 2
