This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.
Here are details about the Darwin ELRS2.0 F411 15A Bluejay AIO:

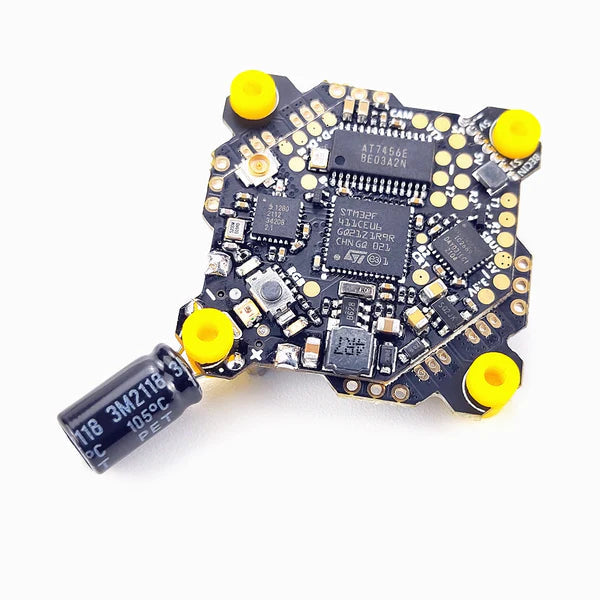

FC MCU: STM32F411CEU6(100MHz)
IMU: ICM-20689(SPI)
OSD: Betaflight OSD AT7456E
RF: SX1280(2.4GHz)
BEC output: 5V/2A & 3.3V/0.2A
Firmware target:betaflight_4.3.0_BETAFPVF4SX1280

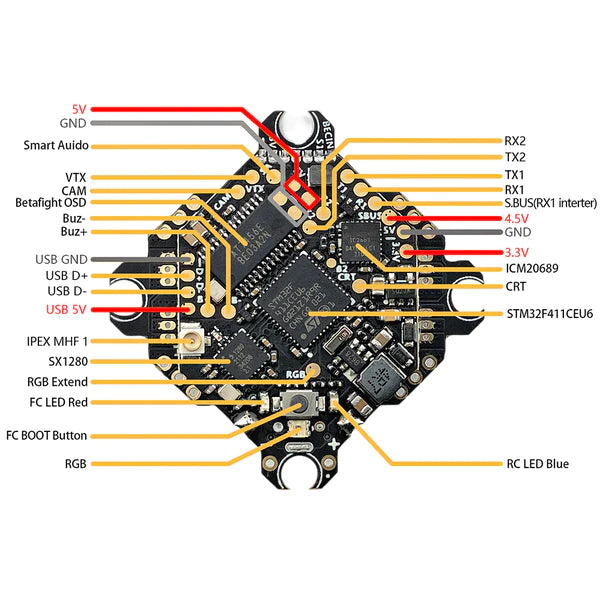

2x Uarts(1,2)
1x SBUS(RX1 inverter)
1x Softserial_TX option
1x External USB solder pad
1x CRT(Current)
1x BUZZ
1x RGB

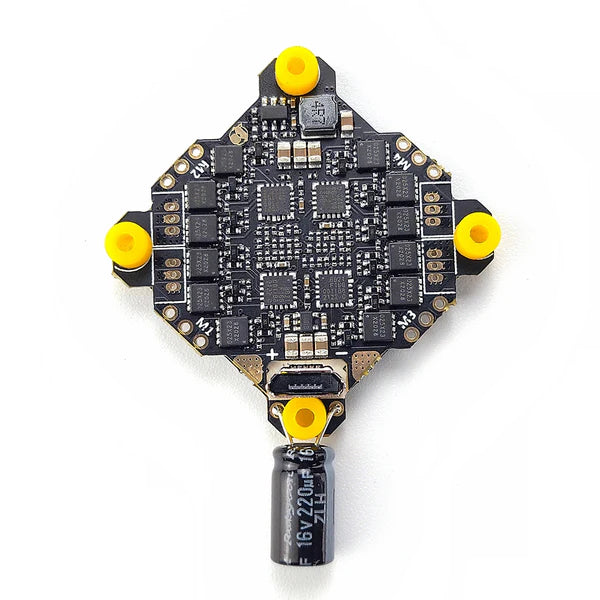

ESC MCU: EFM8BB21F16G
Input Voltage: 1-3S LiPo
Continuous current: 15A
MAX current (5seconds): 17A
ESC Traget: Bluejay_S_H_50_48_v0.14
Size: 37x36x10.8mm
Installing Hole:25.5x25.5mm(M2)
Weight:5.0g
Learn about ExpressLRS:
ExpressLRS is an open source Radio Link for Radio Control applications, all of you can find these projects on GitHub.
it is based on the fantastic Semtech SX127x/SX1280 LoRa hardware combined with an Espressif or STM32 Processor. Using LoRa modulation as well as reduced packet size it achieves best in class range and latency. It achieves this using a highly optimized over-the-air packet structure, giving simultaneous range and latency advantages. It supports both 900 MHz and 2.4 GHz links, each with their own benefits. 900 MHz supports a maximum of 200 Hz packet rate, with higher penetration. Under 2.4GHz frequency bands,OpenTX system supports amazing 500Hz.
The Vantac ELRS Lite TX Module
Darwin Vantac ELRS Lite TX Module is based on open source project.
2.4G transmit module， the aim of the ExpressLRS 2.4G aims to achieve comprehensive performance in speed, latency and range. In addition, a convenient feature of this module is the built-in WiFi module, which enables wireless connection to upgrade firmware. Darwin Vantac ELRS Lite TX Modules are compatible with remotes with lite-style module bays.
The specifications of the TX Module:
Packet refresh rate: 50HZ/100HZ/150HZ/250HZ/500HZ
RF output power:10mW/25mW/50mW/100mW/250mW/500mW
Frequency bands: 2.4GHz ISM
Input voltage: 5V~12V
USB port: Type-C
Darwin ELRS 2.4G TX Module use lite-style TX Module bays and it is compatible with the following remote control:
