OpenVTx aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx.
Main Features
OpenVTX firmware preload
Smartaudio / Tramp ready
Specifications
Brand Name:NameLessRC
Item Name: OP400 VTX
Transmitting Power: 0/RCE/25mw/100mw/400mw
BAT: 5V
Frequency: 5.8G 48CH
Antenna: IPEX

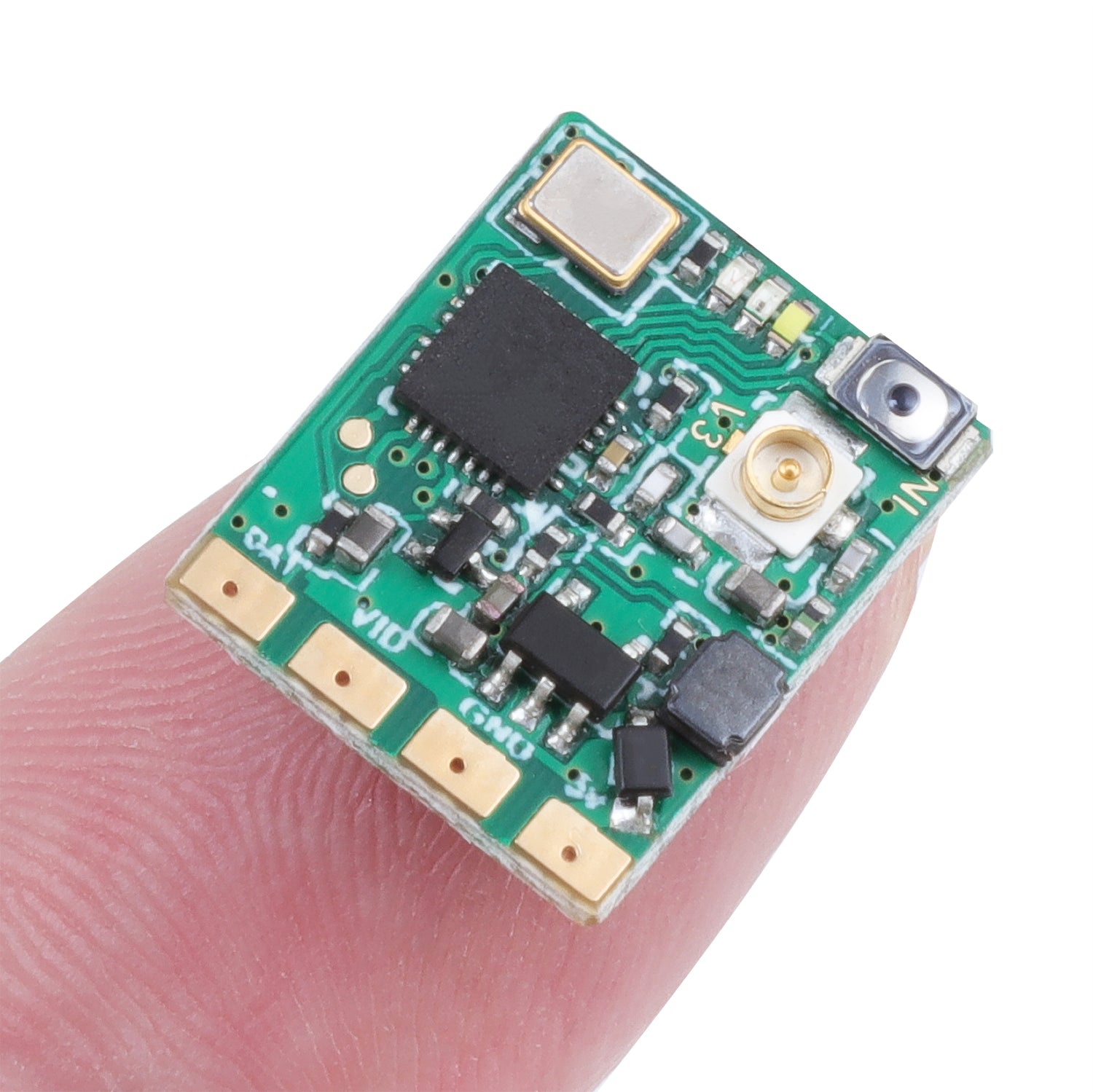

Size: 12.5MM*15MM*3.5MM

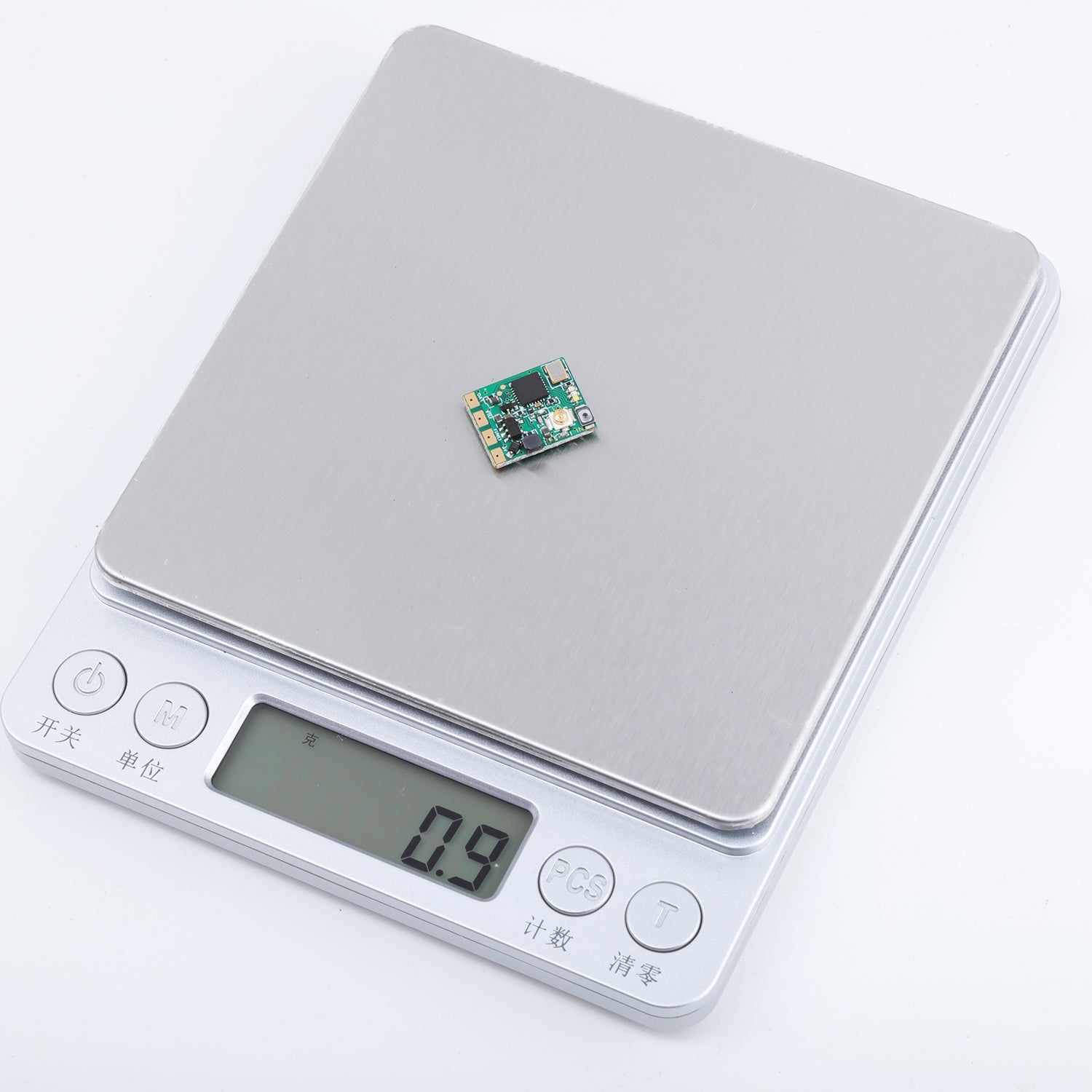

Weight: 0.9g
Copy and paste your choice of protocol VTx table into the Betaflights CLI.
-------------------------------------------------------------------------------------------- # SMARTAUDIO # vtxtable vtxtable bands 6 vtxtable channels 8 vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945 vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613 vtxtable powerlevels 5 vtxtable powervalues 1 2 14 20 26 vtxtable powerlabels 0 RCE 25 100 400 save -------------------------------------------------------------------------------------------- # TRAMP # vtxtable vtxtable bands 7 vtxtable channels 8 vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945 vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 LOWRACE L CUSTOM 5333 5373 5413 5453 5493 5533 5573 5613 vtxtable band 7 IMD6 I CUSTOM 5732 5765 5828 5840 5866 5740 0 0 vtxtable powerlevels 5 vtxtable powervalues 1 2 25 100 400 vtxtable powerlabels 0 RCE 25 100 400 save
