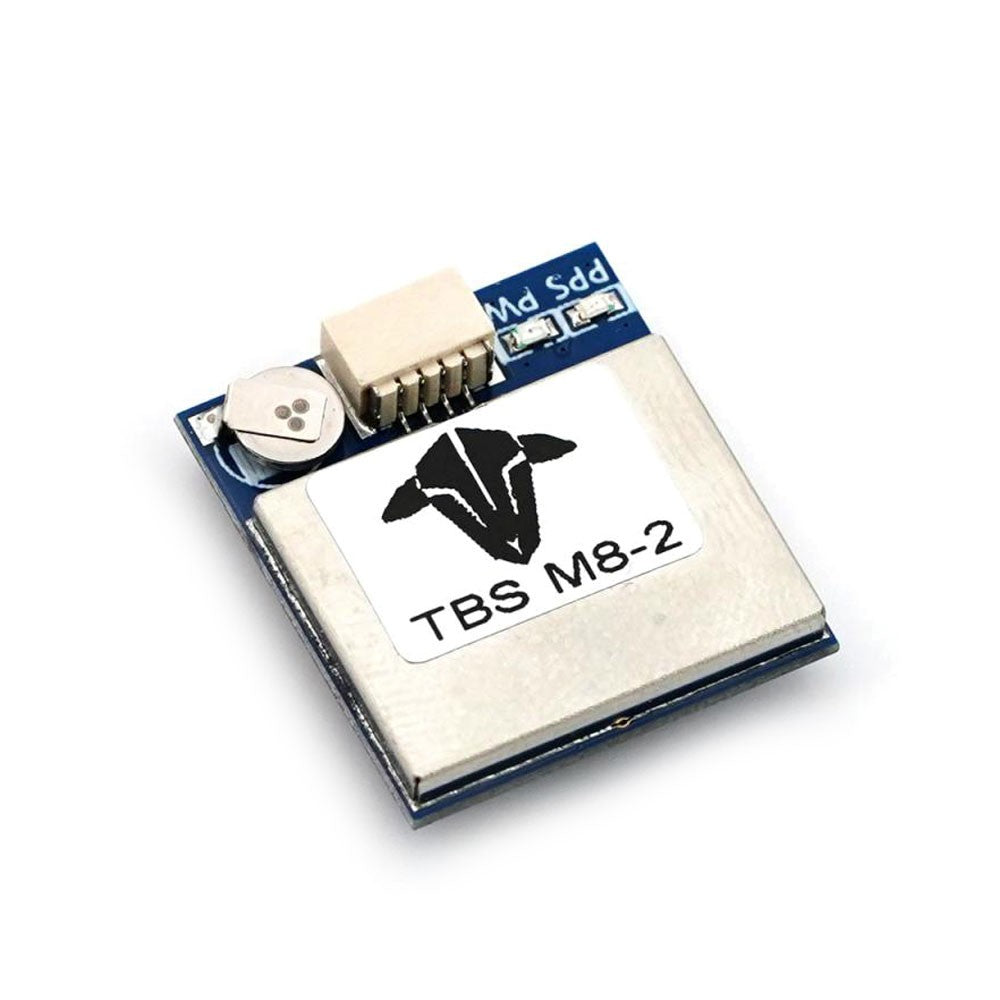

Precision GPS / Glonass module for betaflight or pixhawk.

SPECIFICATION

  • Chipset - ublox UBX-M8030
  • Flash memory for saving configuration.
  • Frequency - L1, 1575.42MHz ; L2,1561.10MHZ;L3,1602.00MHZ
  • Baud Rate - 4800bps-921600bps (Default - 9600bps)
  • Channel - 72ch
  • Sensitivity - (Tracking: -164dBm) | (Capture: -159dBm) | (Cold Start - 147dBm)
  • Cold start - Average 26 seconds
  • Warm start - Average 24 seconds
  • Hot start - Average 1 second
  • Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
  • Maximum height - 50000m
  • Maximum speed - 500 m/s
  • Maximum acceleration - ≦ 4G
  • Refresh Rate - 1-10 Hz
  • Size - 20 x 22 x 6 mm
  • Weight - 5.2g
  • Input Voltage - 3.3V-5V

    Customer Reviews

    Based on 12 reviews
    75%
    (9)
    8%
    (1)
    17%
    (2)
    0%
    (0)
    0%
    (0)
    J
    JoeE
    works well for me

    have used on a couple quads and had no major issues, once I figured out how to wire it correctly. Yes the GPS lock takes longer than I would like at times, but it wasn't noticably better or worse with two other gps models.

    J
    JORGE
    GREAT

    I PUT THEM ON A 4 INCH AND IT WORKS AMAZING WITH 6SBATTERIES

    Reviewer avatar
    wrong17
    I have mixed feelings about these

    It could be just my luck, but it seems like they either work or then don't. I have used a few of them and various builds and sometimes they just do not work. Meaning, I would finish a new build, and when I test the GPS, I would not get any signal for a LONG time. Then I would switch the GPS out for another one (on the same quad) and it would work perfectly. I kind of gave up on these budget GPS and went with some more expensive Matek M8Q-5883.

    S
    Simon Saucy
    Nice little GPS

    works great and gets RX and gets fast GPS

    G
    Gabe
    Works fine

    Only reason this is 3 stars is that maybe every 1/10 flights the home position moves around like crazy with more than 7 sats. Also this GPS takes a minute or two to get a descent fix every arm
