    BetaFPV F4 1S AIO Brushless Flight Controller 12A ELRS 2.4G


     F4 1S 12A AIO Flight Controller - A 1S 12A FC for building lightweight 3" toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. If you want to try a bigger FPV drone than 65mm/75mm on 1S power, and still want smooth and powerful flying actions, this FC that integrates 1S 12A ESC is definitely your best choice.

    ExpressLRS items are available now!

    F4 1S 12A AIO Brushless Flight Controller ELRS2.4G Banner

    Bullet Point

    • F4 1S 12A AIO Flight Controller is the best choice for building ultra-lightweight 3" toothpick drones like HX115 SE FPV Quad.
    • Most of the 1S flight controllers on the market come with 5A ESC by now, but this FC especially integrates 1S 12A ESC, it can provide more sufficient power for 3" toothpick drones.
    • Built-in current meter, 2 programmable RGB LEDs, and SPI Frsky receiver. At the same time, all the pads are left for the external receivers with UART1 and UART2, for buzzers, etc.
    • Whoop mounting hole pattern, be compatible with most 1S 3" frames. Large pads are reserved for solder motor cables, this design will make solder easier.

    F4 1S 12A AIO Brushless Flight Controller ELRS2.4 Banner 2

    Specification of FC

    • Item: F4 1S 12A AIO FC (Frsky)
    • Weight: 4.74 g (without power cable and BT2.0 connector)
    • CPU: STM32F411CEU6 (100MHZ )
    • Six-Axis: MPU6000 (SPI connection)
    • Firmware version: betaflight_4.2.0_STM32F411
    • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
    • Receiver: Intergrated SPI Frsky Receiver / Futaba Receiver
    • Motor Pin Connecter: 1.25mm Header Pins
    • Mounting Hole Size: 29mm x 29mm (suitable for whoop pattern mounting hole)
    • USB Port: Type-C

    Specification of 1S 12A ESC

    • Built-in ESC with 12A continuous and peak 25A current
    • Input voltage: 1S Lipo
    • ESC firmware: Z_H_30_REV16_7.HEX
    • Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM

    This new BLHeli_S firmware (named Z_H_30_REV16_7.HEX) is supported by BLHeli Configurator, BLHeliSuite, and Bluejay Configurator.

    F4 1S 12A AIO Brushless Flight Controller ELRS2.4 ESC SETTING

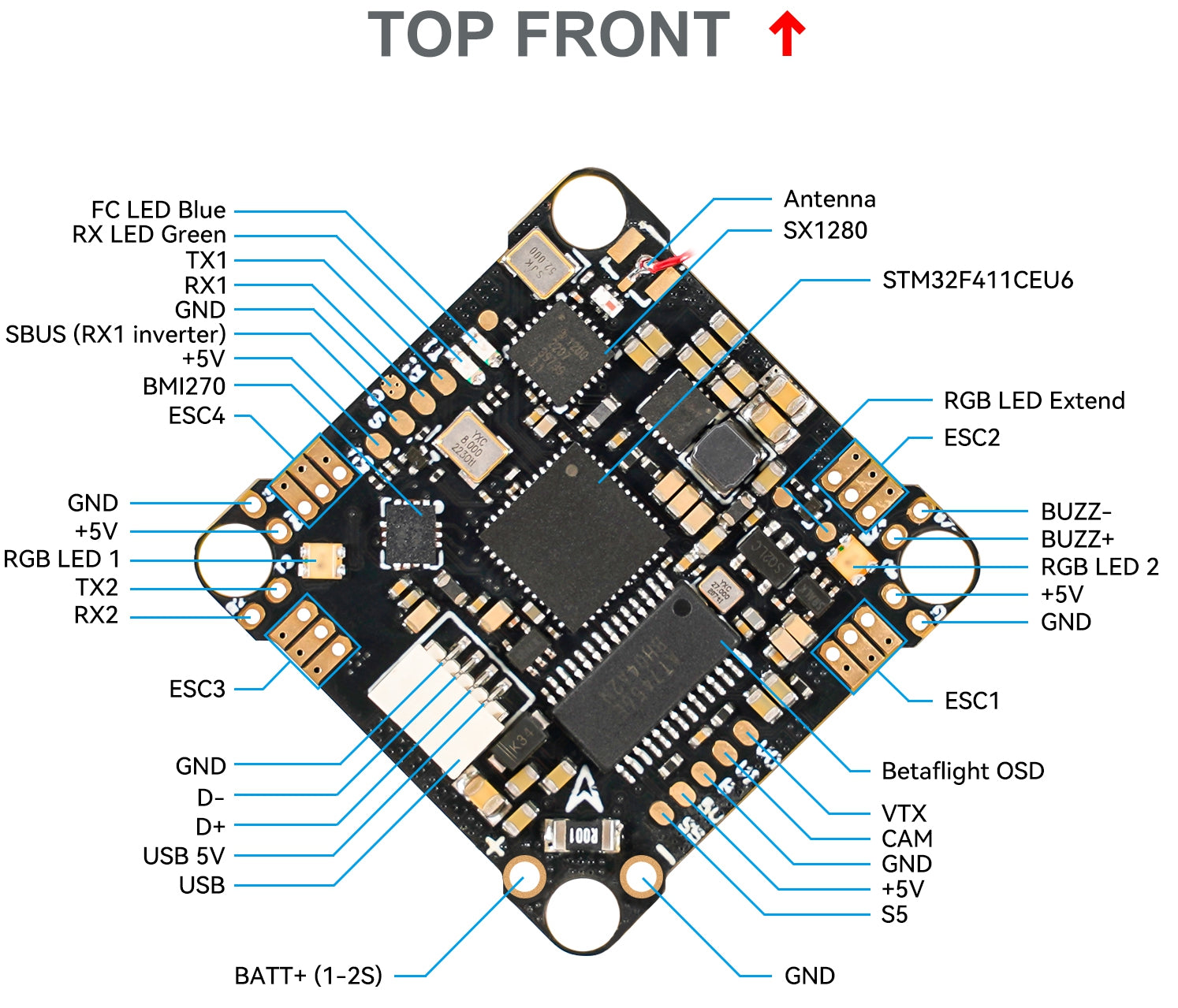

    Diagram for F4 1S 12A AIO FC

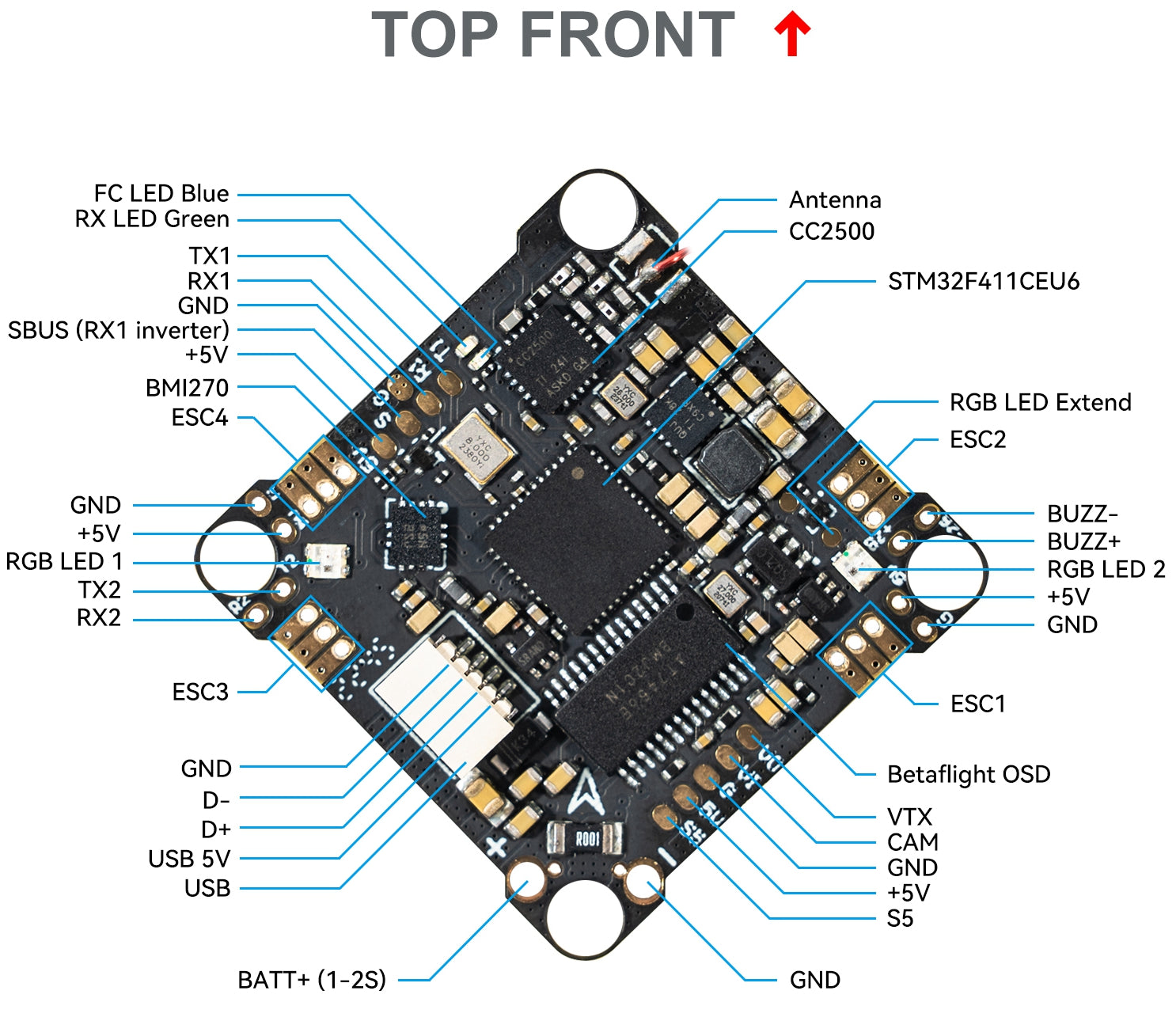

    Below is the diagram for the SPI Frsky version board. UART1, UART2, and SBUS pads are left for external receivers like Frsky XM+, TBS Nano receiver so that a long receiver range is available.

    Buzz pads (BUZZ+ and BUZZ-) are invalid directly. It needs some modification to make it works.

    F4 1S 12A AIO Brushless Flight Controller Wire diagram
    The current meter is integrated on the FC board. Here is the configuration in Betaflight Configurator.

    F4 1S 12A AIO Brushless Flight Controller current sensor setting

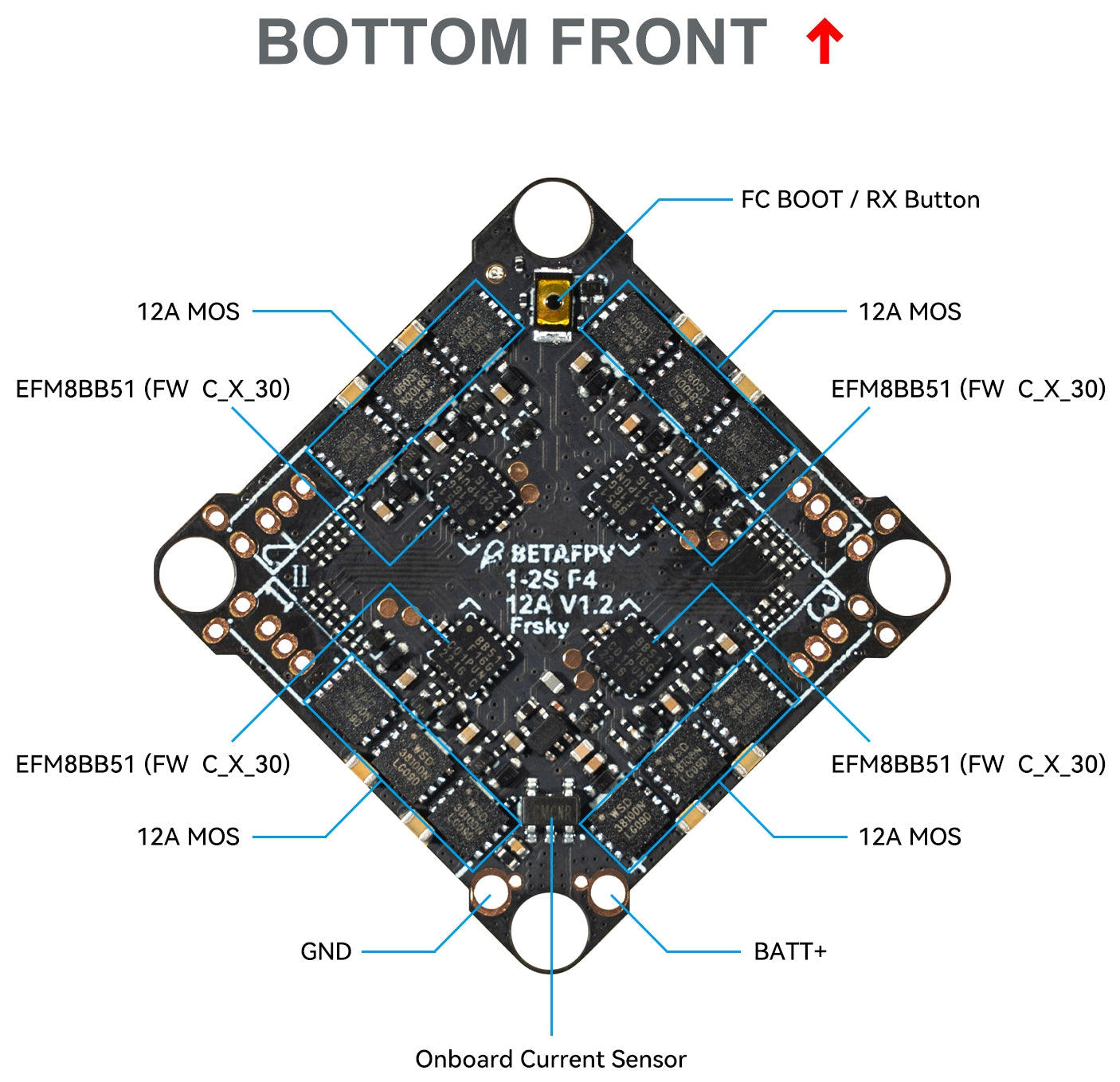

    12A 1S ESC

    Should we really need a 12A ESC for 1S drones? If it is a 65mm or 75mm Whoop drone-like Meteor65, 5A ESC is enough for all actions. But how about with 3" propellers and 1102/1202.5 motors? Still, want smooth and powerful flying actions? The 5A ESC has developed about 3 years ago and was designed for whoop drones with 0603/0802 motors. For the past year, the BETAFPV team has been cooperating with BLHeli author Steffen on the 12A 1S ESC for 3" toothpick drones. Finally, it is here!

    F4 1S 12A AIO Brushless Flight Controller 12A ESC

    It marks "1-2S" on the board, could this FC board support 2S?

    NOT Yet. The motor spins not smoothly in 2S power with the released ESC firmware. We will work on it continuously and make this board support 2S later. If you have any ideas or advice, feel free to contact us.

    ELRS 2.4G RX

    This board integrates the receiver with the most popular radio link ExpressLRS in 2021. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range.  The serial protocol between the receiver and the F411 FC is the Crossfire serial protocol. Know more about the ExpressLRS project on Github or join the discussion in the Facebook Group.




    This board is designed for long-range 3inch ultralight toothpick drones. If you want to try ExpressLRS on 65mm/75mm whoop drones, please stay tuned on our F4 1S FC board with a built-in SPI ExpressLRS receiver.


    Recommend Parts

    If you want to try the popular ExpressLRS receiver version for long-range performance, highly recommend you to check the items for the ExpressLRS series.

    Package

    • 1 * F4 1S 12A AIO FC
    • 4 * Anti-vibration rubber dampers
    • 4 * M2 x 10mm screws
    • 4 * M2 x 10mm screws
    • 8 * M2 screw nut
    • 1 * BETAFPV dipole T antenna (2.4G/46mm, only for ELRS RX version board)
    • 8 * PH-1.25 connector for motor (not soldered, only for ELRS RX version board)
