• Description

The new ultralight Toothpick F405 2-4S AIO 20A FC is finally released! Compared with the V3 version, the new V4 board updates the F411 chip to F405. It can handle 20A of continuous current and up to 4S! Strong performance lets you break through the limits of your quad and explore more possibilities in the flight. Highly recommend using it on Beta95X V3 and Beta95X V3 HD Digital VTX to get a smooth flight

BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Banner

Features

  • Updated the F411 chip to F405, this new 20A AIO board handles a continuous current of 20A and a burst current of 22A, bringing pilots a more stable flight.
  • BETAFPV 12A/20A AIO flight controller reserves the same UART ports layout, UART3 for Rx, UART4 for DJI, UART6 for SmartAudio and the Spare UART1, more convenient for pilots to solder.

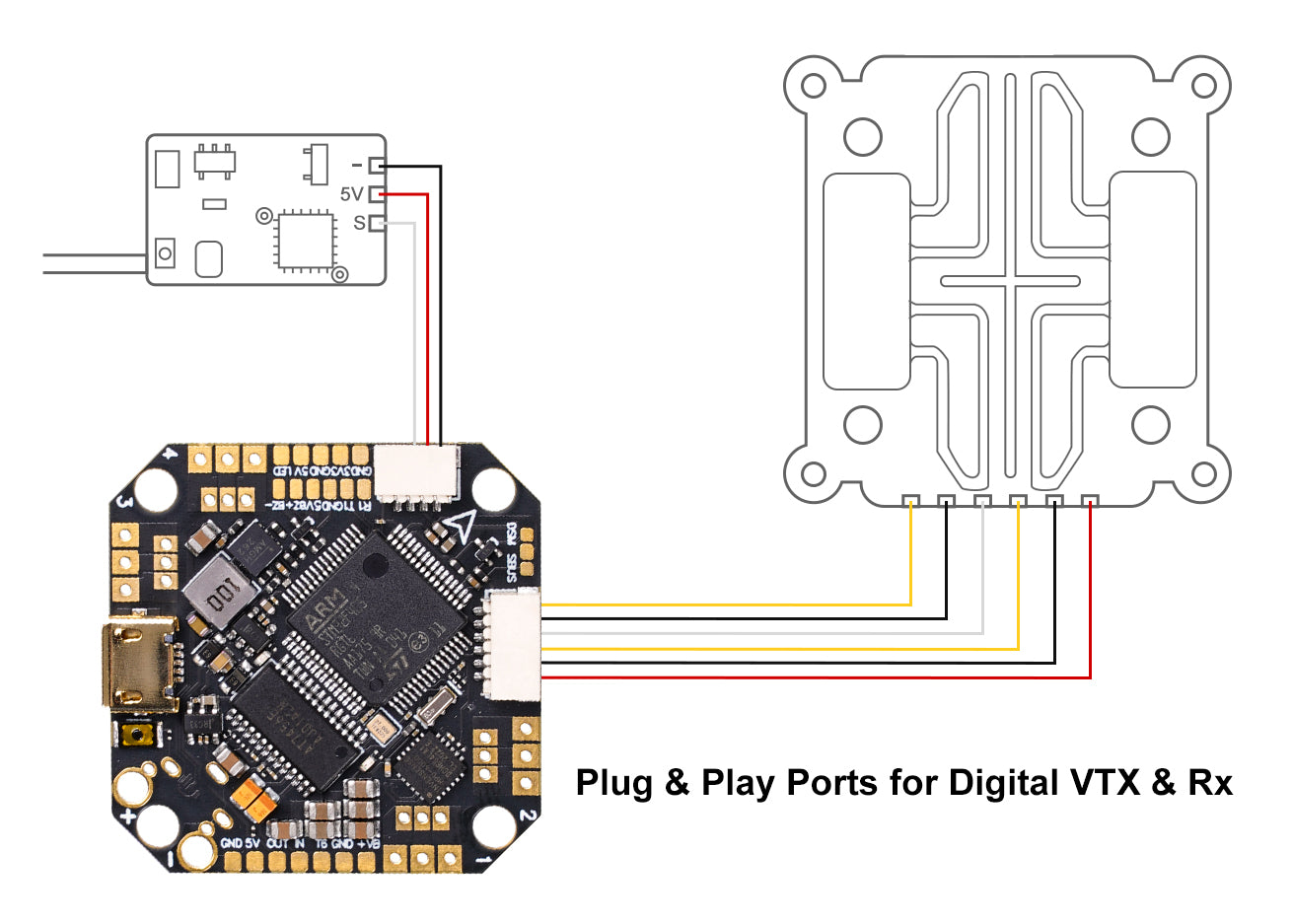

  • Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
  • Come with a 26mm x 26mm whoop mounting pattern, this board can be added to both the toothpick drone and the cinematic whoop quadcopter like Beta95X V3 and Beta95X V3 HD Digital VTX.
BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 DJI Plug and Play PNP

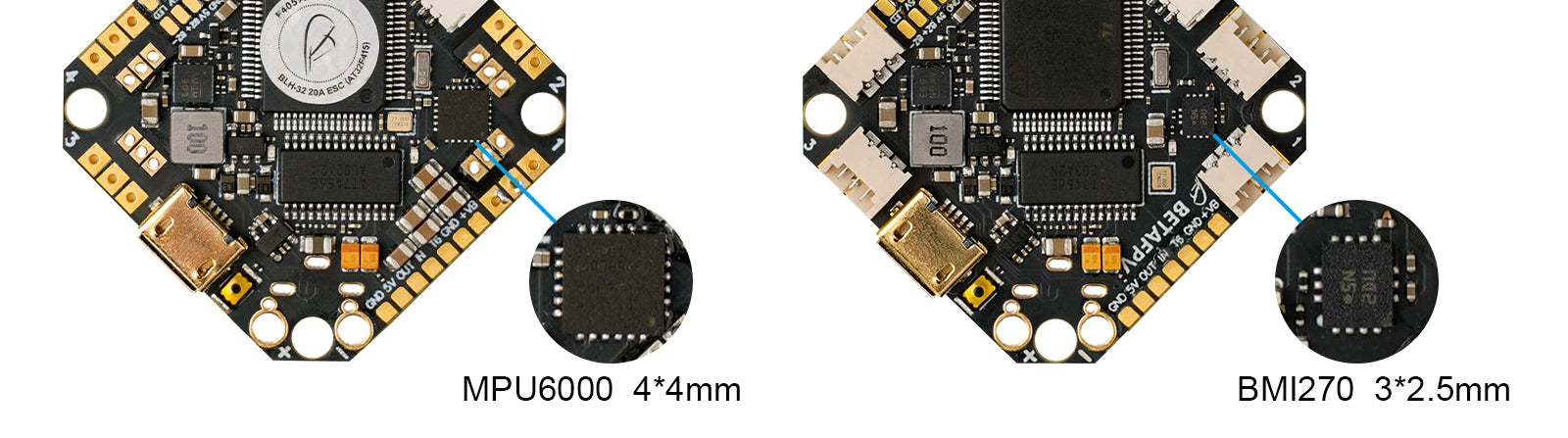

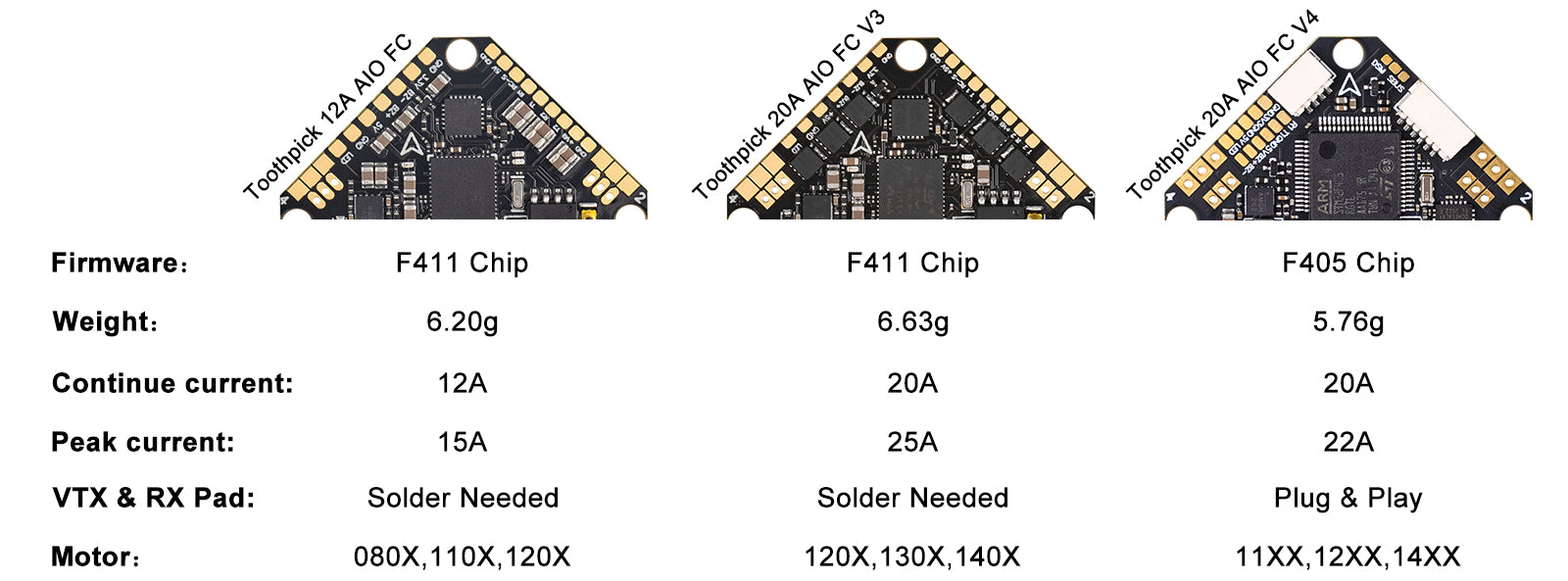

Comparison of Toothpick 12A AIO FC, Toothpick 20A AIO FC and Toothpick F405 20A AIO FC V4



BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Comparison

FC Specifications

    • CPU: STM32F405RGT6
    • Six-Axis: MPU6000
    • Size: 26mm x 26mm, whoop mounting pattern
    • Firmware version: Batefight-BETAFPV405-4.2.X
    • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
    • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
    • Connecter: XT30, it also can be changed to XT60 if pilots needs.
    • Weight: 5.76g

    ESC Specifications

    • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600
    • Input voltage: 2S-4S Lipo
    • Continuous current: 20A
    • Peak current: 22A
    • Firmware: BLHELI-32

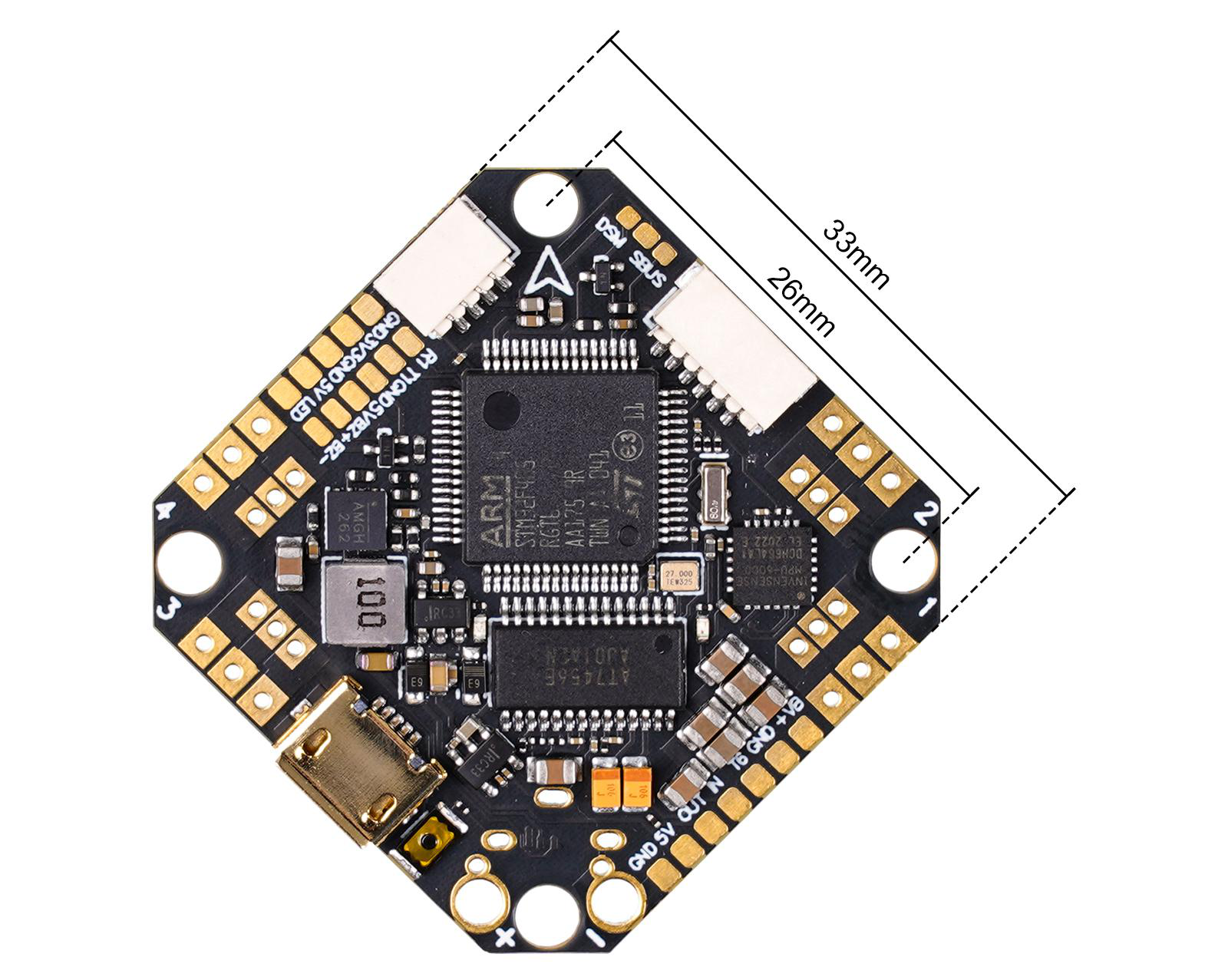

    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Dimensions

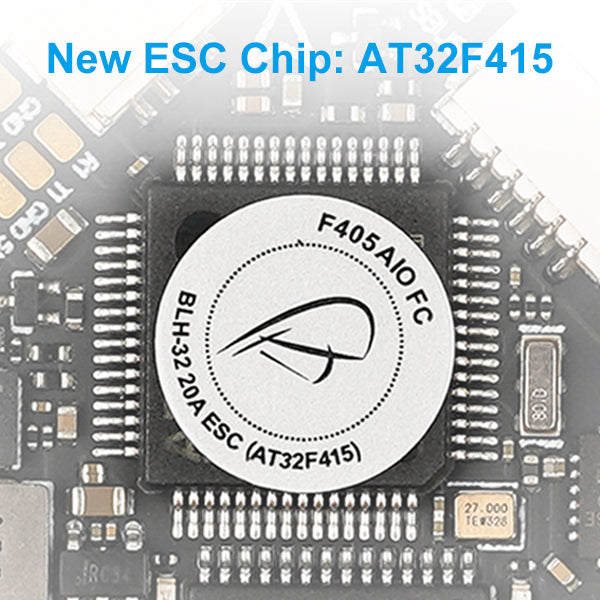

    Please Note: The chip of F405 V4 flight controller's ESC has changed to AT32F415 from STM32F105 due to shortage. While the AT32F415 is applicable to the ESC firmware version BETAFPV_20A_AT32.



    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 New ESC Chip

    Pinout



    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Pinout

    Status LED

    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Status LED

    LED

    Status

    Description

    Power LED ( Red)

    Solid

    Power on

    FC LED ( Blue )

    Solid

    Motor Armed

    Receiver Installation Instructions

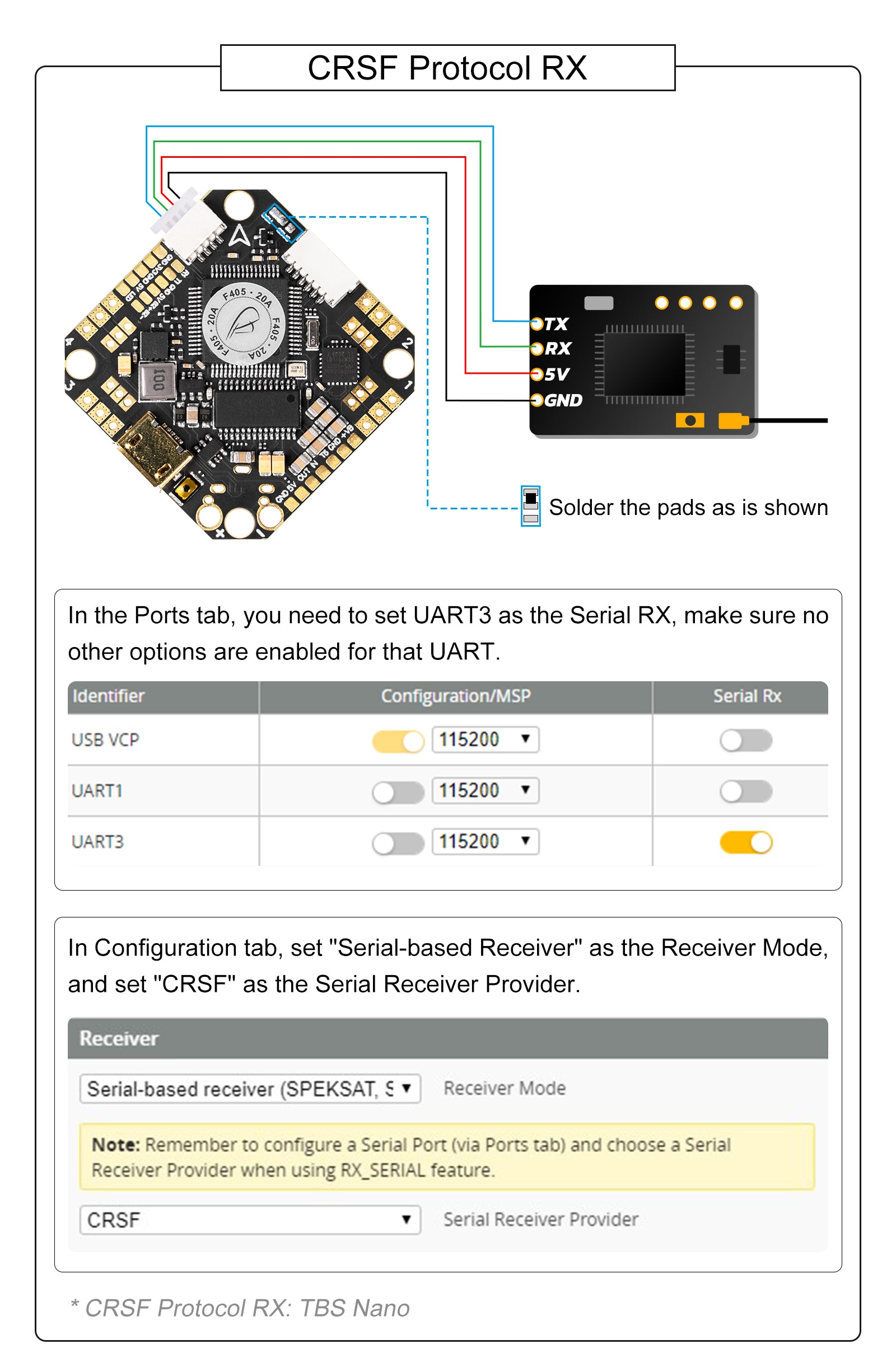

    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Crossfire Installation

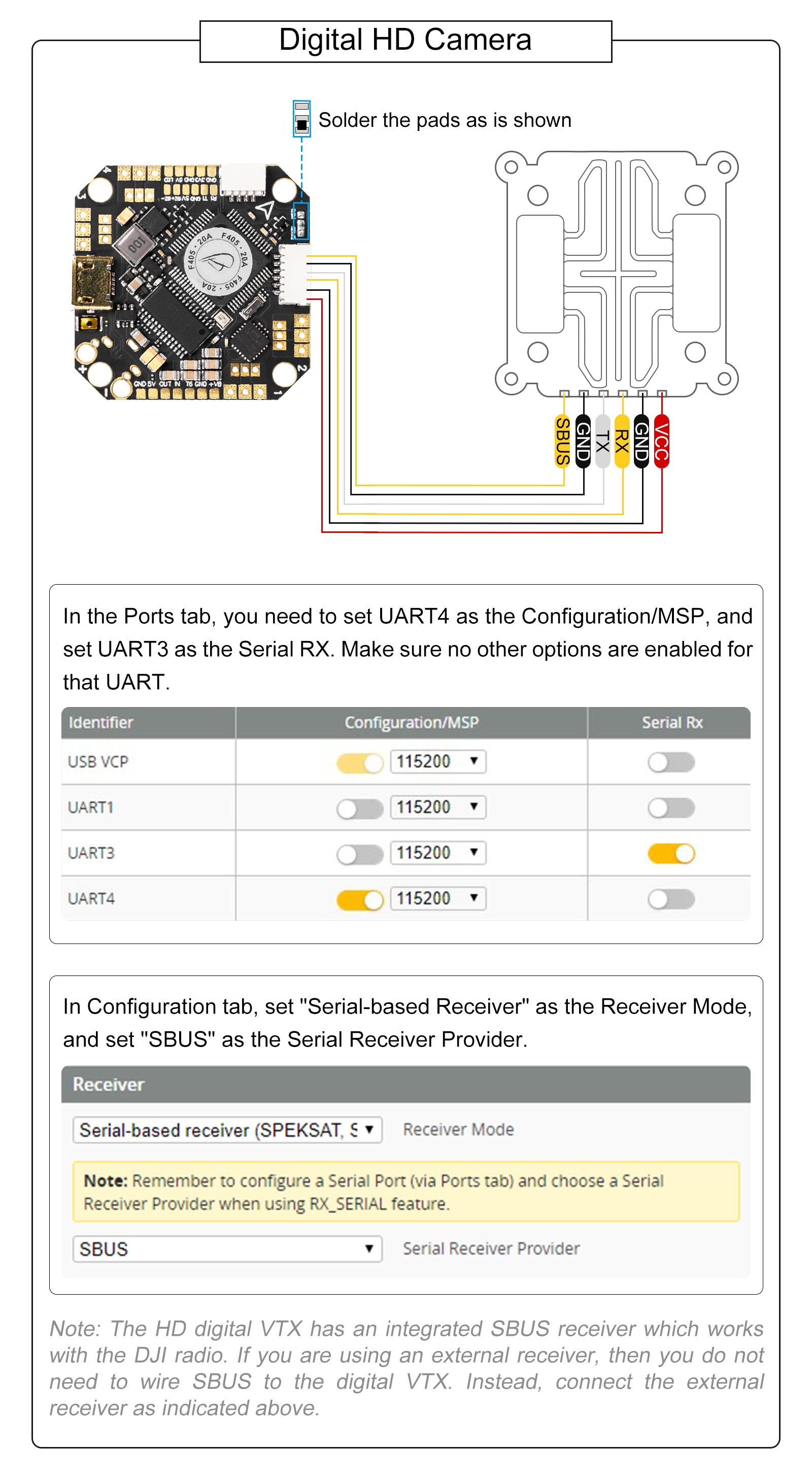

    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 DJI DIgital HD Plug and Play Installation

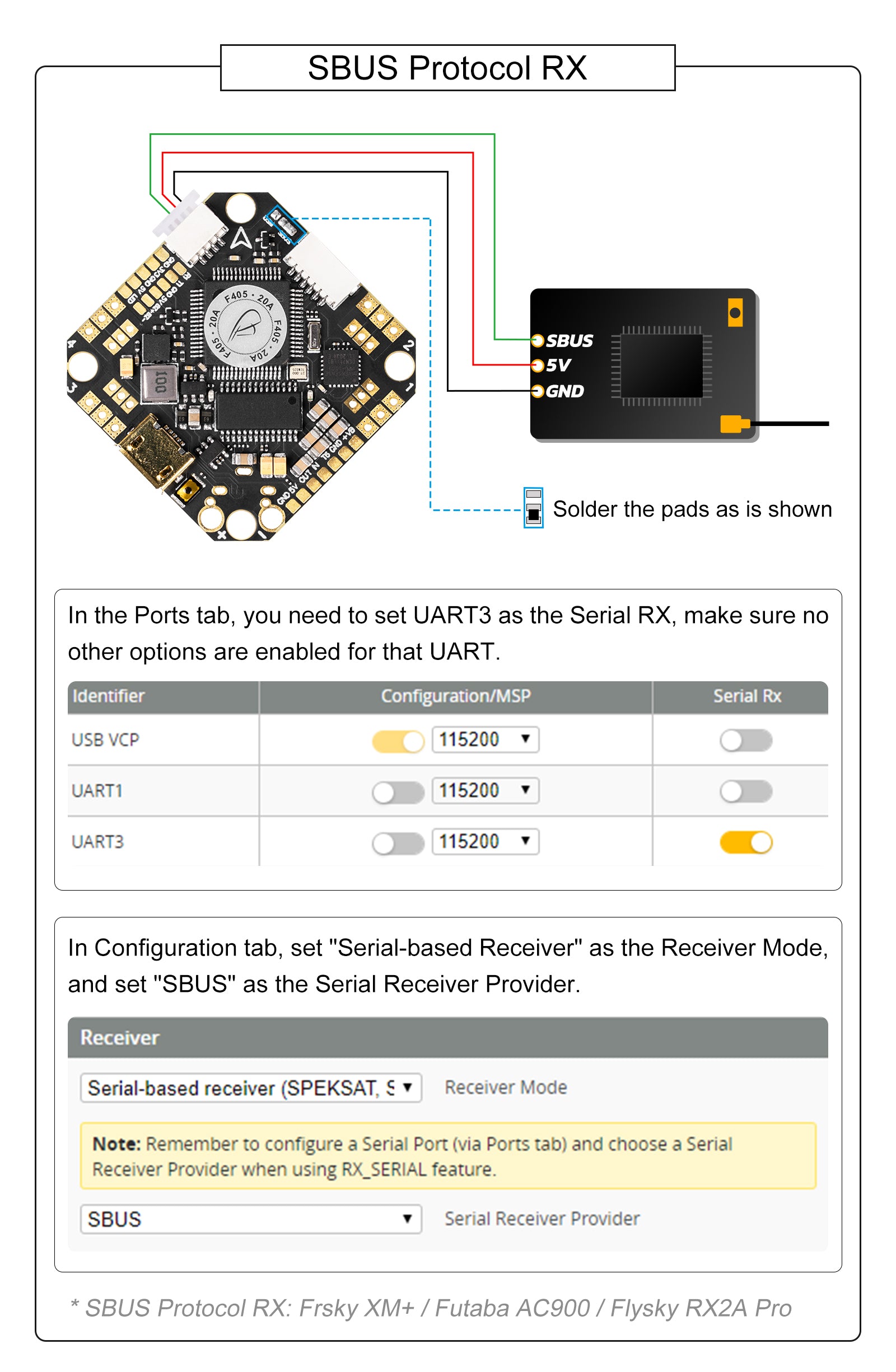

    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 SBUS Installation

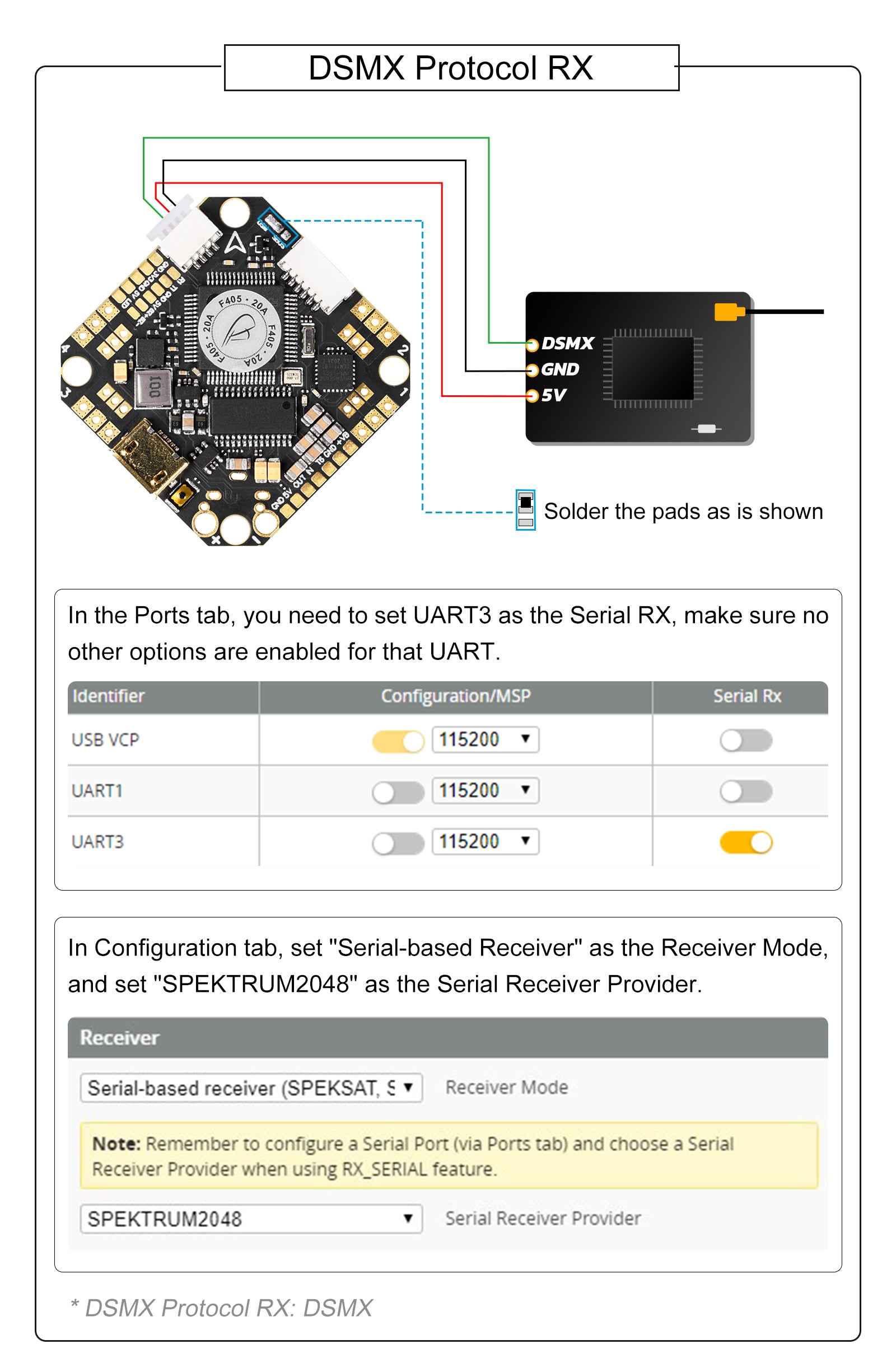

    BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 DSMX Installation

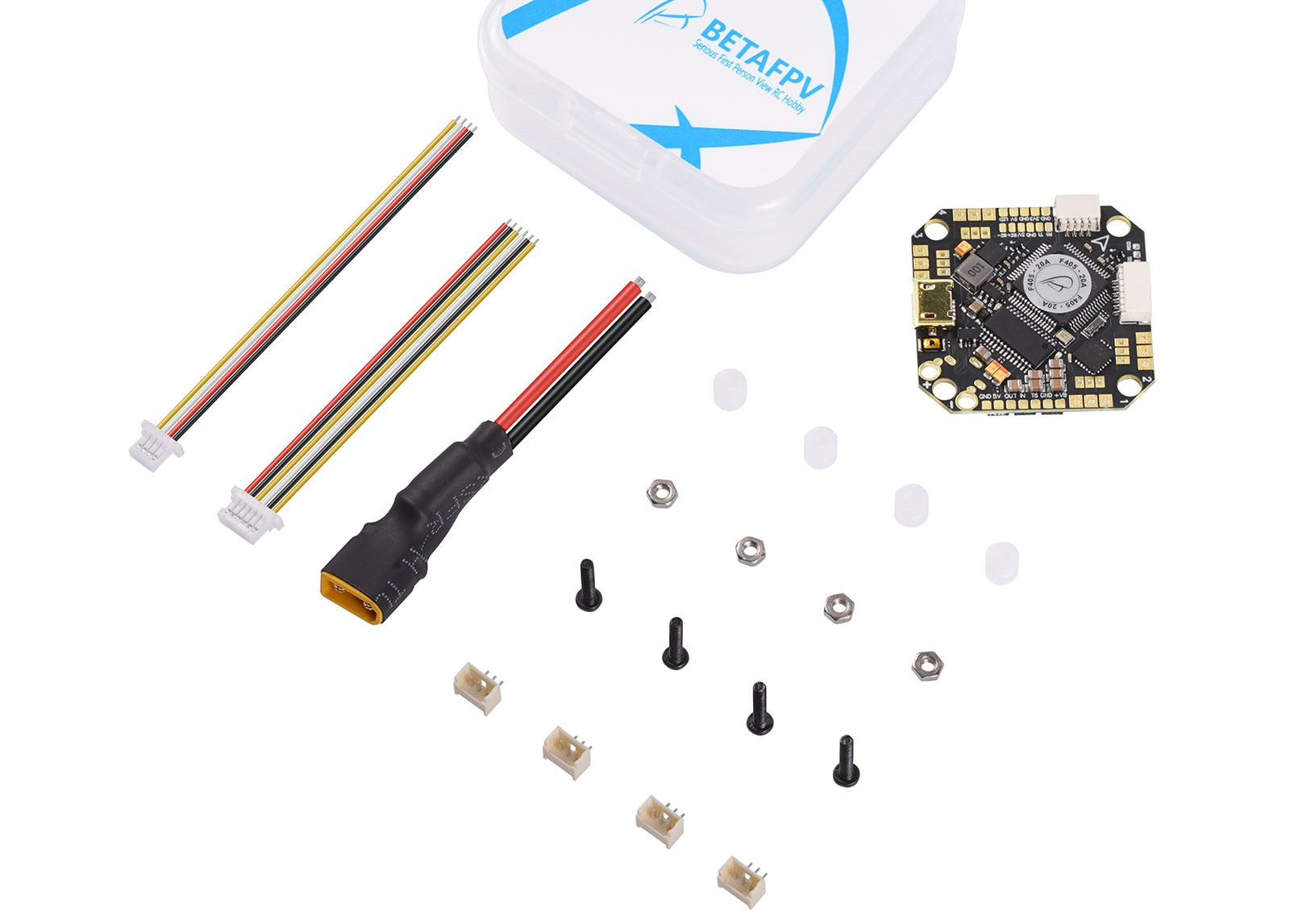

    Package Includes

    • 1 * Toothpick F405 20A AIO FC V4
    • 1 * Cable Pigtail (XT30)
    • 4 * M2x10mm screws
    • 4 * M2 nuts
    • 4 * Anti-vibration rubber dampers
    • 4 * Motor Pluggable Pins
    • * 6-Pin Connector for Digital VTX
    • * 4-Pin Connector for Rx

      Description

      The new ultralight Toothpick F405 2-4S AIO 20A FC is finally released! Compared with the V3 version, the new V4 board updates the F411 chip to F405. It can handle 20A of continuous current and up to 4S! Strong performance lets you break through the limits of your quad and explore more possibilities in the flight. Highly recommend using it on Beta95X V3 and Beta95X V3 HD Digital VTX to get a smooth flight

      BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Banner

      Features

      • Updated the F411 chip to F405, this new 20A AIO board handles a continuous current of 20A and a burst current of 22A, bringing pilots a more stable flight.
      • BETAFPV 12A/20A AIO flight controller reserves the same UART ports layout, UART3 for Rx, UART4 for DJI, UART6 for SmartAudio and the Spare UART1, more convenient for pilots to solder.
      • Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
      • Come with a 26mm x 26mm whoop mounting pattern, this board can be added to both the toothpick drone and the cinematic whoop quadcopter like Beta95X V3 and Beta95X V3 HD Digital VTX.
      BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 DJI Plug and Play PNP

      Comparison of Toothpick 12A AIO FC, Toothpick 20A AIO FC and Toothpick F405 20A AIO FC V4



      BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Comparison

      FC Specifications

        • CPU: STM32F405RGT6
        • Six-Axis: MPU6000
        • Size: 26mm x 26mm, whoop mounting pattern
        • Firmware version: Batefight-BETAFPV405-4.2.X
        • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
        • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
        • Connecter: XT30, it also can be changed to XT60 if pilots needs.
        • Weight: 5.76g

        ESC Specifications

        • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600
        • Input voltage: 2S-4S Lipo
        • Continuous current: 20A
        • Peak current: 22A
        • Firmware: BLHELI-32
        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Dimensions

        Please Note: The chip of F405 V4 flight controller's ESC has changed to AT32F415 from STM32F105 due to shortage. While the AT32F415 is applicable to the ESC firmware version BETAFPV_20A_AT32.



        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 New ESC Chip

        Pinout



        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Pinout

        Status LED

        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Status LED

        LED

        Status

        Description

        Power LED ( Red)

        Solid

        Power on

        FC LED ( Blue )

        Solid

        Motor Armed

        Receiver Installation Instructions



        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 Crossfire Installation
        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 DJI DIgital HD Plug and Play Installation
        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 SBUS Installation
        BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 DSMX Installation

        Package Includes

        • 1 * Toothpick F405 20A AIO FC V4
        • 1 * Cable Pigtail (XT30)
        • 4 * M2x10mm screws
        • 4 * M2 nuts
        • 4 * Anti-vibration rubber dampers
        • 4 * Motor Pluggable Pins
        • * 6-Pin Connector for Digital VTX
        • * 4-Pin Connector for Rx
