• Description

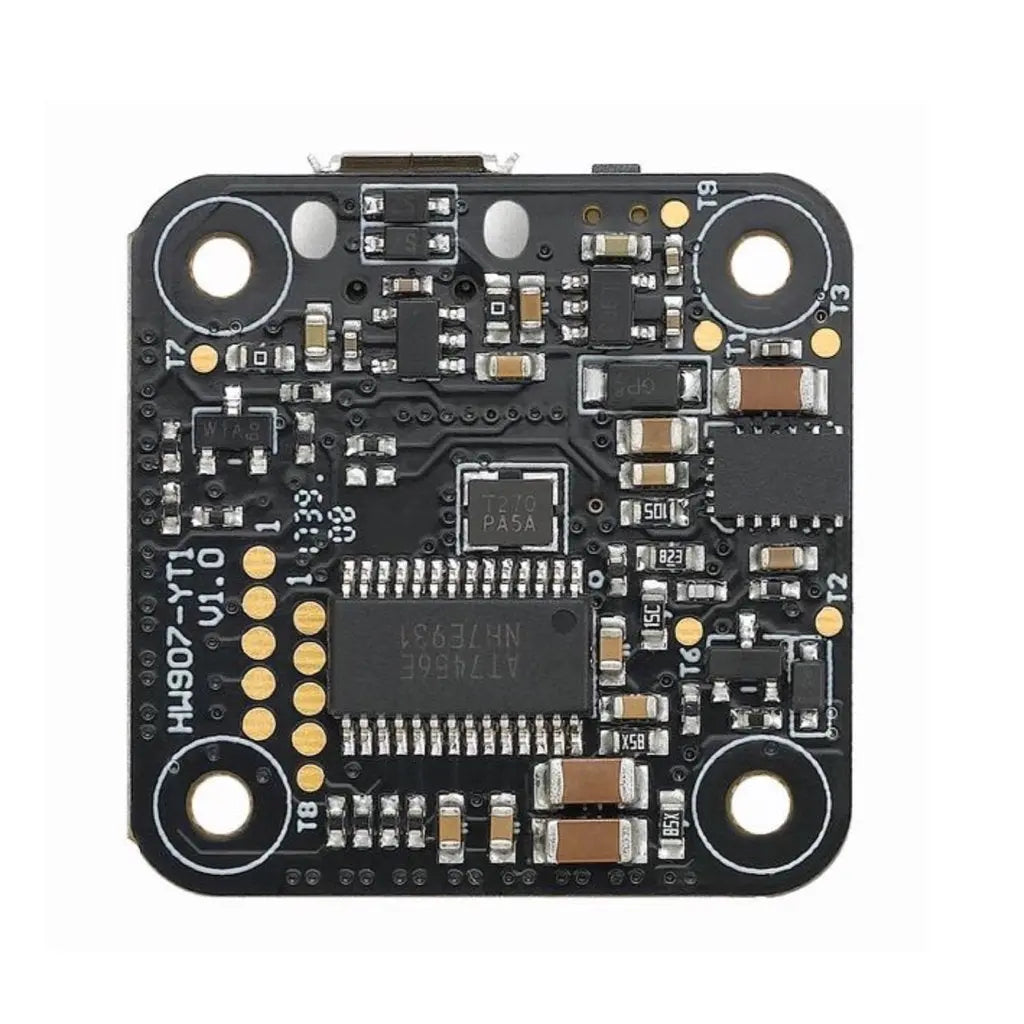

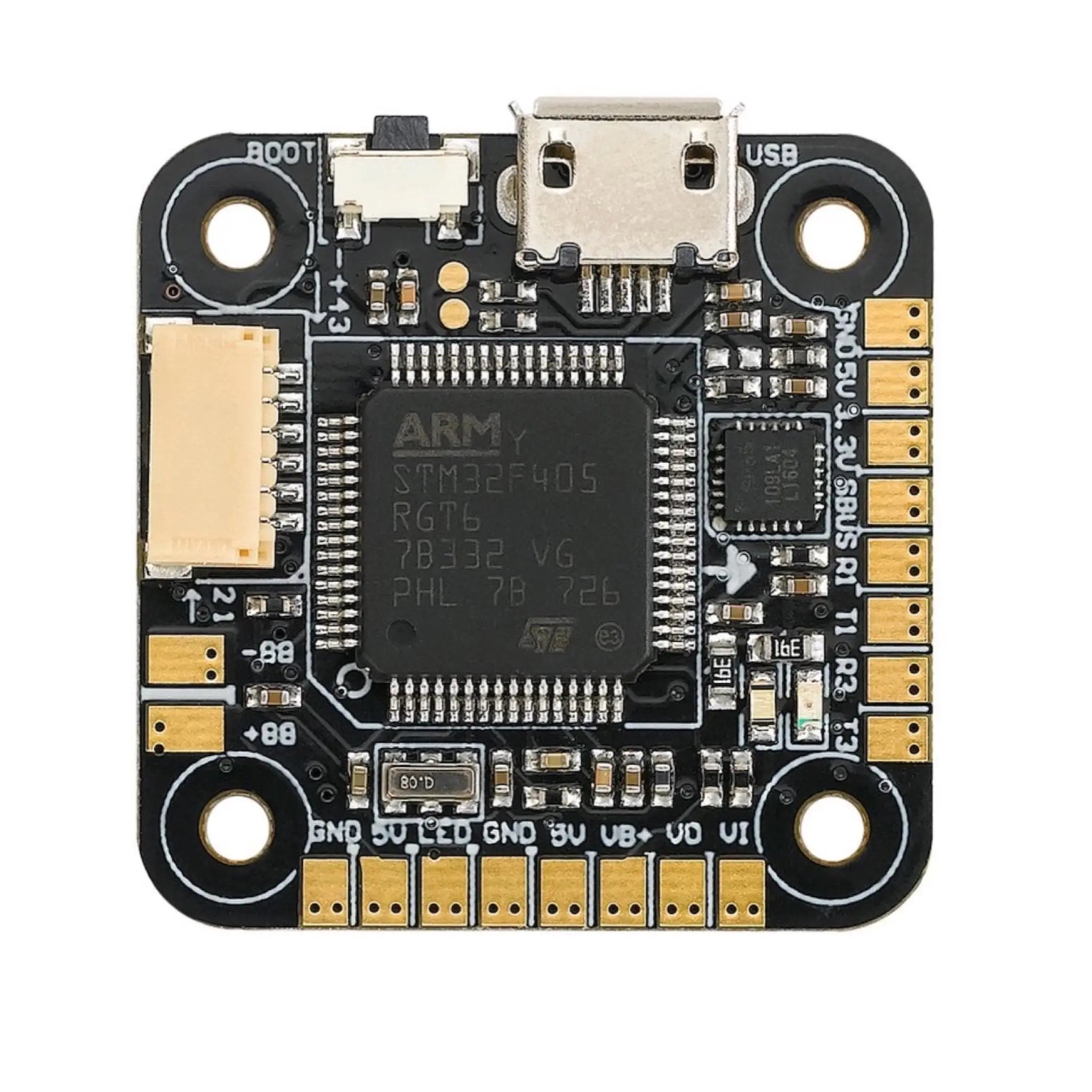

Hobbywing Xrotor F4 Nano Flight Controller

The Hobbywing Xrotor F4 Nano Flight Controller features DJI Plug and Play along with a plug to connect to a 4in1 ESC. These two features reduce the amount of soldering necessary to build a quad plus keeps the overall build cleaner!

Features

  • STM32 F405 MCU allows the FC to run the PID looptime and gyro with higher frequency.
  • SPI Sensor MPU6000 includes an accelerometer and a gyro.
  • Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software. (Note: the OSD is controlled by the F4 MCU.)
  • The FC which supports Betaflight firmware & allows parameter adjustment via Betaflight software is more applicable to FPV race.
  • TF-card which can record and save more flight/black box data allows users to adjust the setup of their aircraft easily.
  • Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM and etc.
  • LED strip signal output port allows users to adjust the color & flash mode of the LED strip via the FC.
  • Volt/Amp monitoring port allows users to check the battery voltage ( VBAT+ port ) and current (CRT port) (extra current meter is needed).
  • Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
  • Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters)



Check out the rest of our Hobbywing flight controllers and ESCs here.

See the manual below for wiring diagrams.



Model
Nano F4 Flight Controller F4
SKU
31001001
Application FPVs with 130 Diagonal Wheelbase or below
FC Programming supported
Programming via
Betaflight/Cleanflight-configurator
Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
Dshot600, Dshot1200, Proshot1000
Compatible with (Transmitters)
PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
OSD Buit-in
Voltage Monitoring Supported
Current Monitoring Supported
External Buzzer Supported
LED Control Supported
BEC 5V @ 1.5A
USB Port MicroUSB
size/ weight 27x27mm / 3.3g
