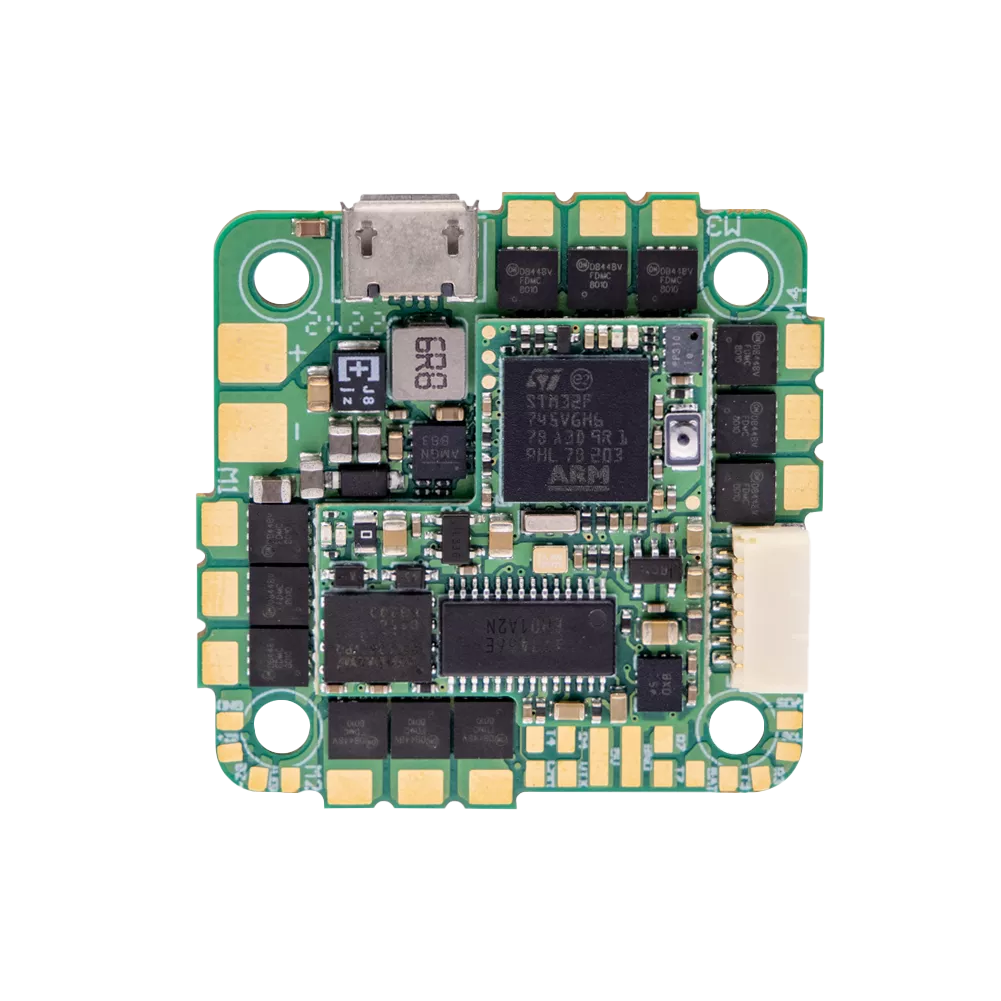

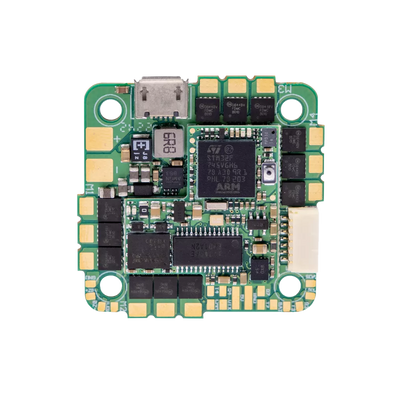

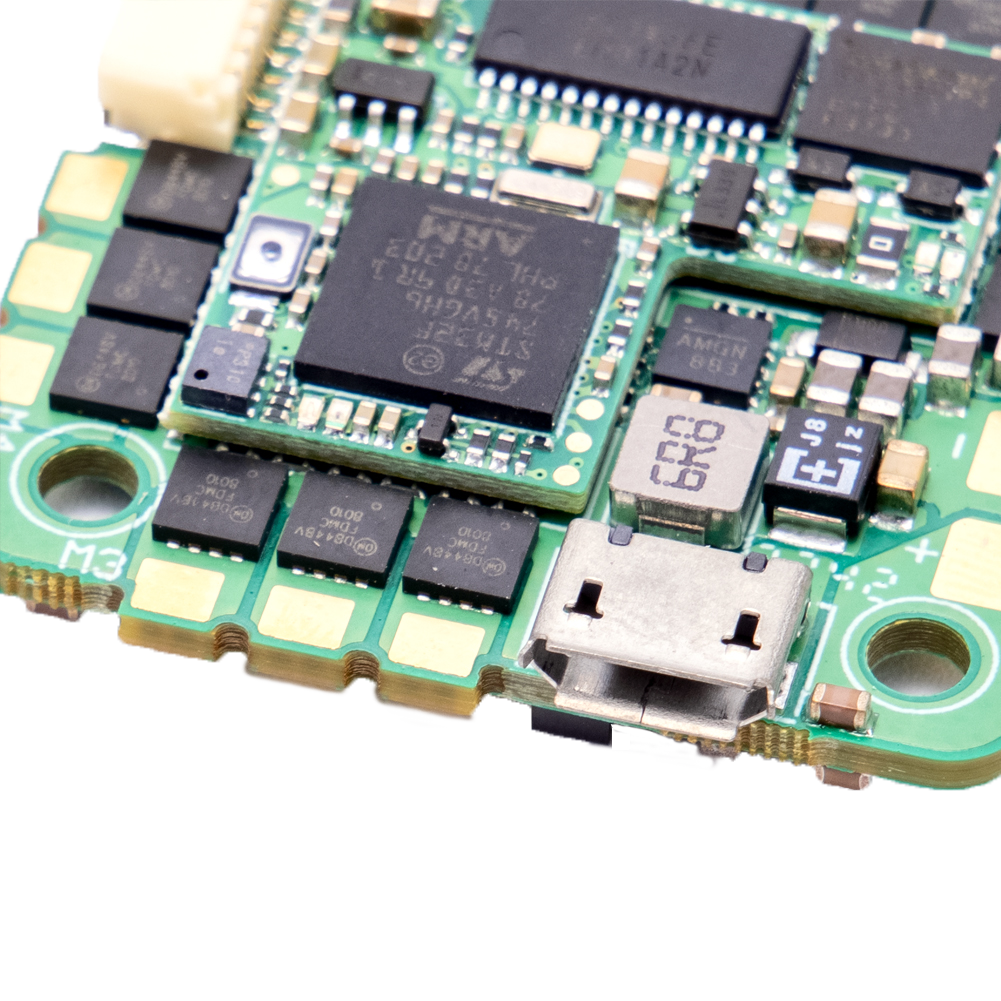

This is our new iFlight BLITZ series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let's go!
Features
Separated Flight Control board to minimize electrical gyro noise
Pass-through DJI O3 and Caddx Vista/Polar Connector
FC PCB can be disassembled from the ESC PCB; Repair allowed!
MCU: BGA-STM32F745, 216MHz
OSD: AT7456E
Blackbox: 16MB Onboard Flash
Gyro: DPS310
FC Specifications
MCU: BGA-STM32F745
Gyro: BMI270
Blackbox: 16MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E）
FC Firmware：IFLIGHT_BLITZ_F7_AIO
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Weight: 8.5g
BEC: 5V 2A / 3A
Input voltage: 2-6S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported

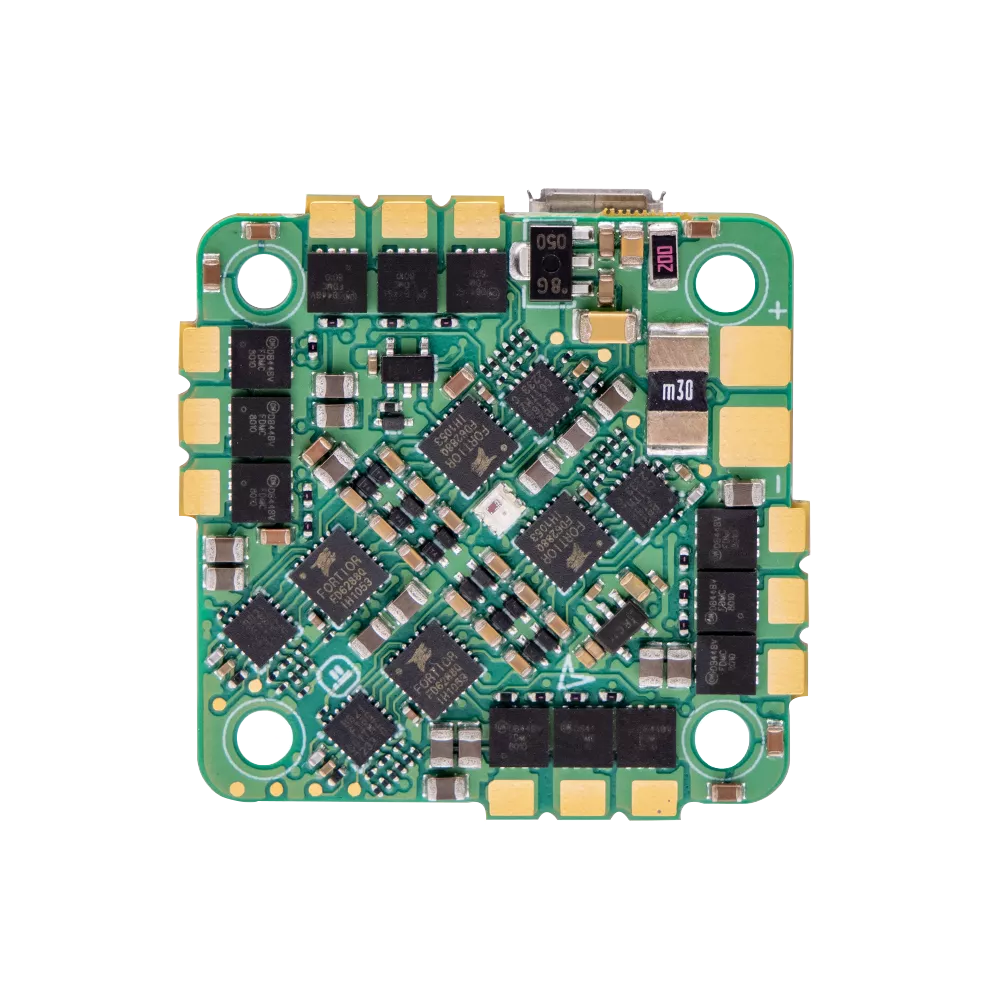

ESC Specifications
ESC MCU: BB21
Driver: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 55A, peak value 65A (10 seconds)
ESC firmware: Q-H-40 - Bluejay, 0.16, 24kHz
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: NO
Bidirectional DShot: Yes (need to use Bluejay firmware)
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
