• Description
MAPLE 5.8Ghz 11dBi RHCP FPV Antenna SMA (KIT)

The 11dBi circularly polarized antenna is a high-gain circularly polarized directional antenna. The overall size of the antenna is 82*42*24mm, SMA MALE interface (internal thread inner needle)/RP-SMA MALE connector (internal thread inner hole).dBi circularly polarized antenna is a high-gain circularly polarized directional antenna. The overall size of the antenna is 82*42*24mm, SMA MALE interface (internal thread inner needle)/RP-SMA MALE connector (internal thread inner hole).
Specification
  • Frequencyrange(MHz) : 5500-5800
  • Impedance(Ω) : 50
  • VSWR<1.5
  • Gain(dBi) : 11
  • Half power beam : 75°H-plane 40°E-plane
  • Front-to-backratio(dB) : >10
  • Max.Powe(W) :10
  • Polarization :Right circular polarization
  • Input : SMA
  • Ambienttemperature(°C) : -40~+6
  • Antenna size(mm) : 82*42*24
  • Net weight(g): 19

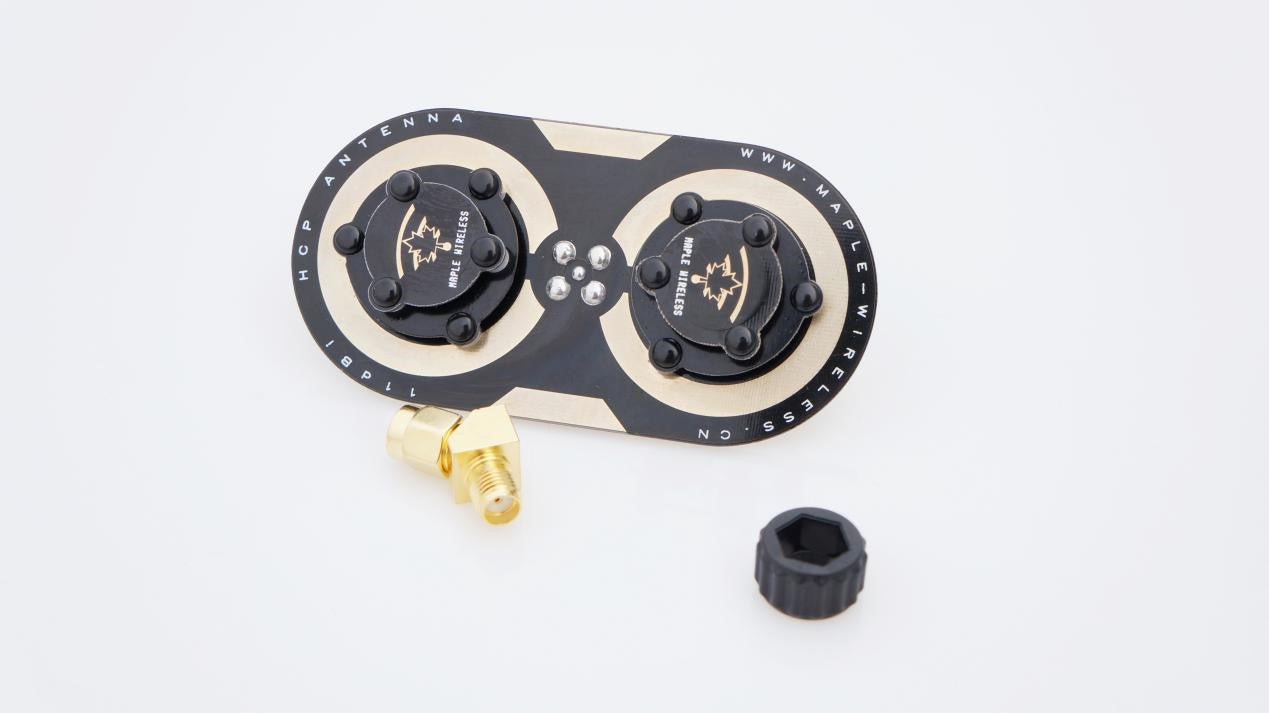

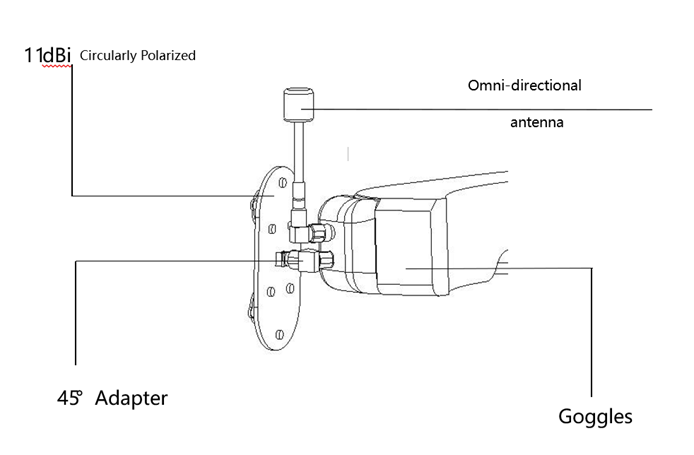

Package Include:
  • 11dBi circular polarization antenna × 1;
  • SMA connector jacket × 1;

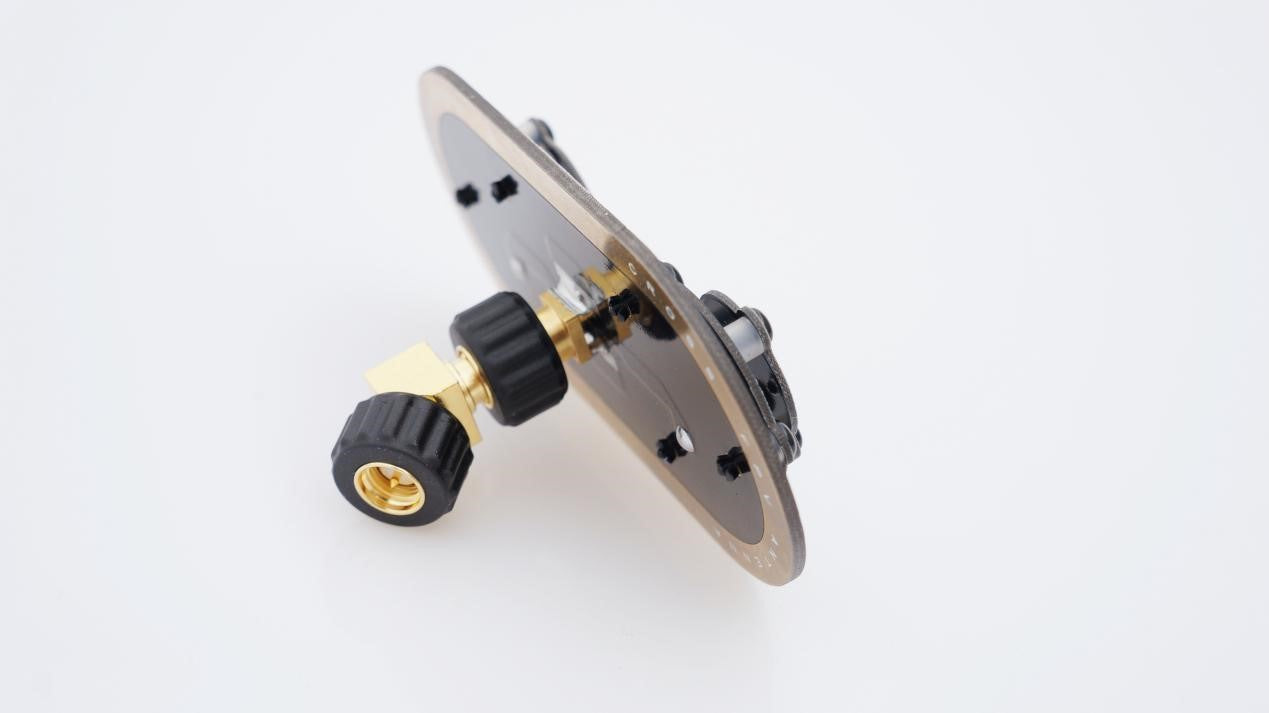

  • 45° adapter × 1;
  • Omni-directional antenna × 1.
Description
MAPLE 5.8Ghz 11dBi RHCP FPV Antenna SMA (KIT)

The 11dBi circularly polarized antenna is a high-gain circularly polarized directional antenna. The overall size of the antenna is 82*42*24mm, SMA MALE interface (internal thread inner needle)/RP-SMA MALE connector (internal thread inner hole).dBi circularly polarized antenna is a high-gain circularly polarized directional antenna. The overall size of the antenna is 82*42*24mm, SMA MALE interface (internal thread inner needle)/RP-SMA MALE connector (internal thread inner hole).
Specification
  • Frequencyrange(MHz) : 5500-5800
  • Impedance(Ω) : 50
  • VSWR<1.5
  • Gain(dBi) : 11
  • Half power beam : 75°H-plane 40°E-plane
  • Front-to-backratio(dB) : >10
  • Max.Powe(W) :10
  • Polarization :Right circular polarization
  • Input : SMA
  • Ambienttemperature(°C) : -40~+6
  • Antenna size(mm) : 82*42*24
  • Net weight(g): 19



Package Include:
  • 11dBi circular polarization antenna × 1;
  • SMA connector jacket × 1;
  • 45° adapter × 1;
  • Omni-directional antenna × 1.
