• Description

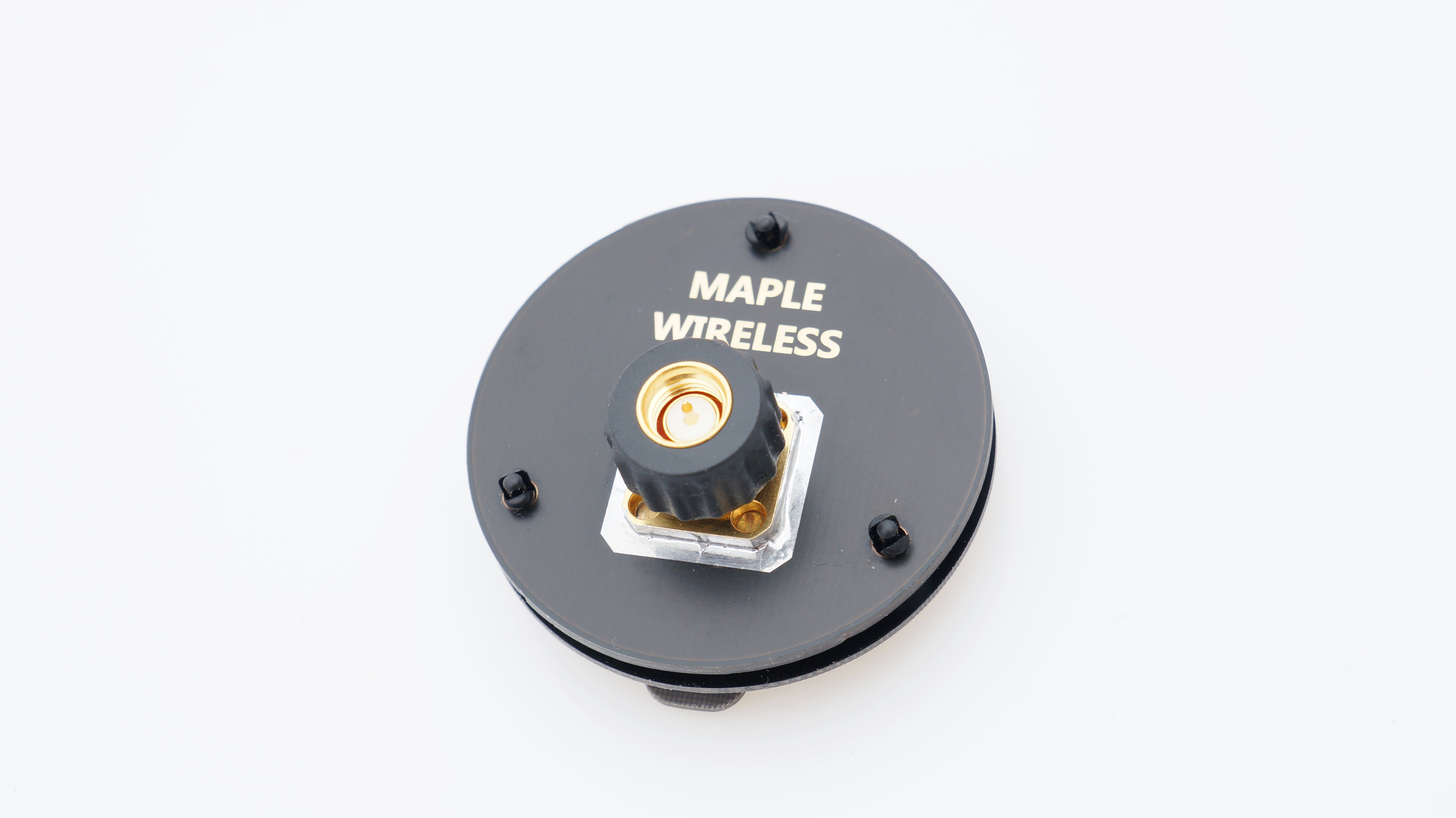

MAPLE 5.8Ghz 8.5dBi RHCP FPV Antenna SMA

Specification

Frequency range(MHz)

5500-5800

Receiving

RX

Gain(dBi)

8.5

Half Power Beam

75°H-plane 75°E-plane

Connector type

SMA-Male  /  RP-SMA

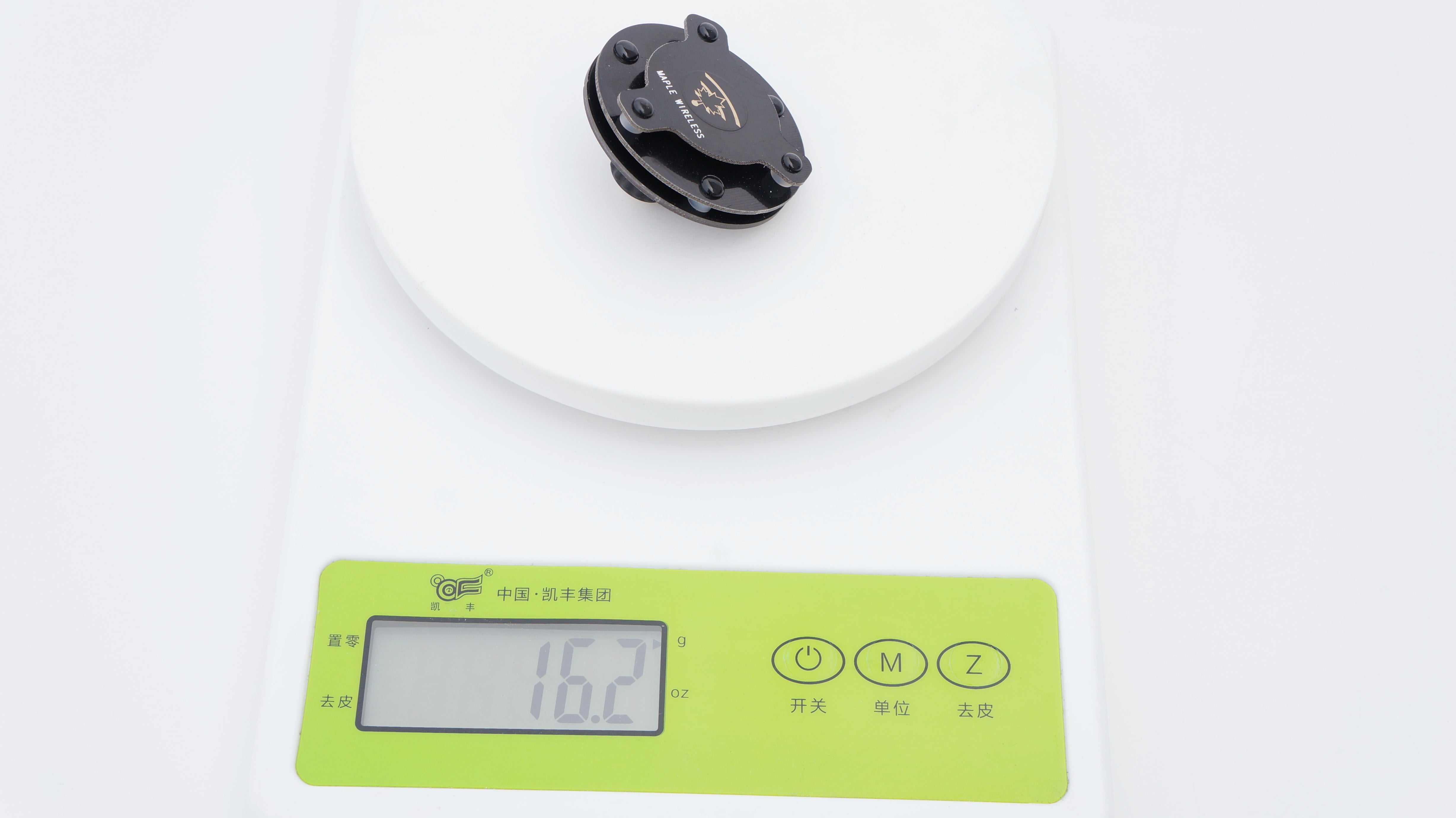

Net weight (g)

16

Antenna Size(mm)

φ44mmx10mm

Package Size(mm)

157*116*43



Antenna Instructions

  • This product is suitable for UAV long-distance cruise flight.

  • When antenna is used,it is recommended to use 5650-5700Mhz working frequency, which has less interference.

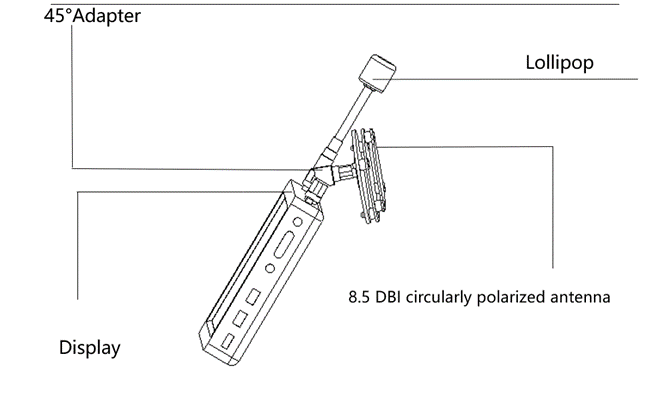

  • When the antenna is used, the UAV should be within the receiving signal range of the antenna (directional antenna).

  • (1) When the UAV is in line of sight, the antenna should be approximately pointed at the UAV.

  • (2) When the UAV is far from the line of sight, the antenna pointing should be adjusted appropriately (the adjustment amplitude should not be too fast or too large) according to the strength of the received signal to make the image stable.

  • Package Included
  • Single antenna: 8.5dBi circularly polarized antenna × 1;

  • SMA connector jacket × 1;
