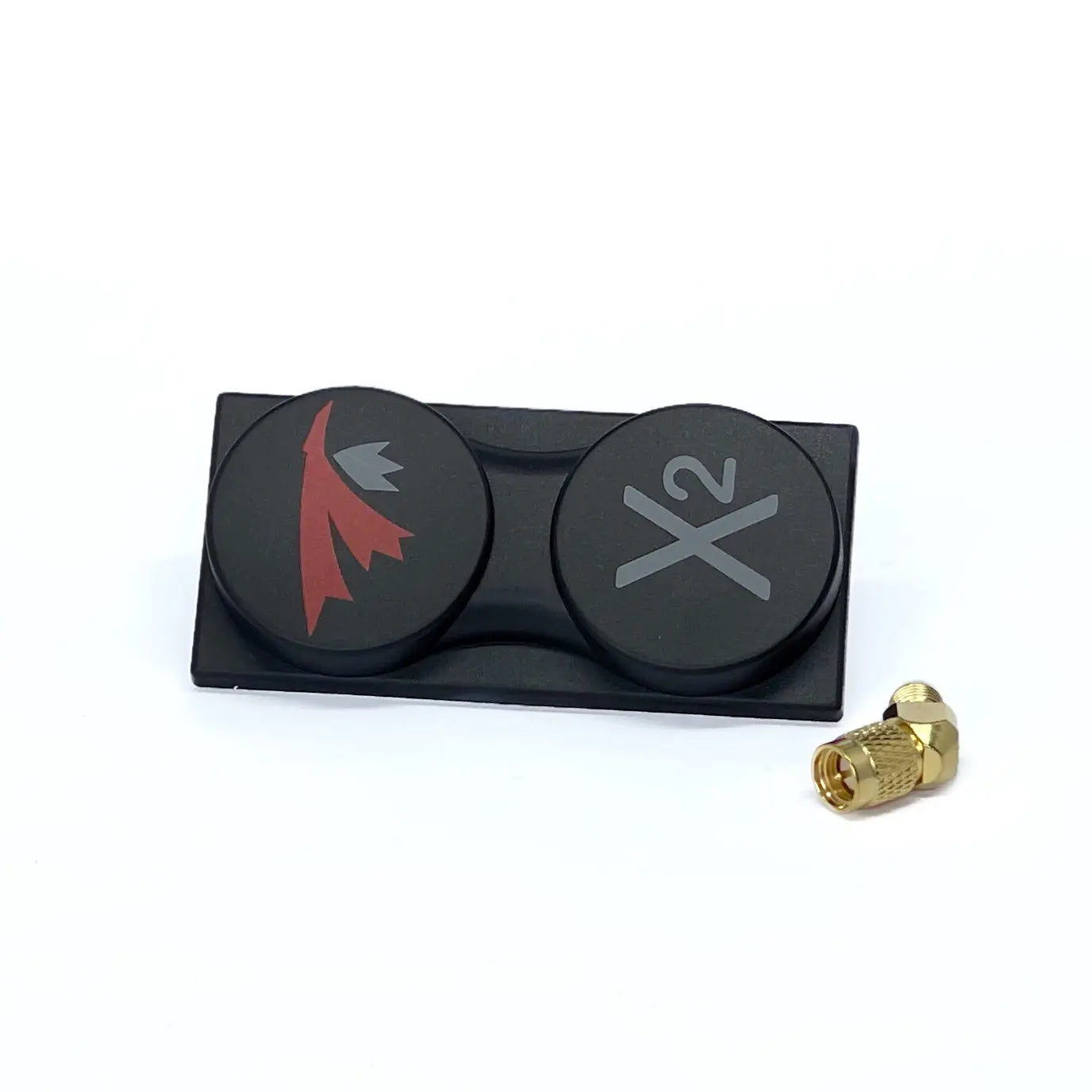

More gain and more convenience! This is the adaptation of the all mighty X²-AIR into a slick low profile face mount for the DJI goggles . Simply peel the included adhesive, stick them on and throw your goggles in your bag ready for a day of flying. Improved 13dBic gain and massive combined beam width of 180deg, yield an amazing flight experience in the toughest conditions. Fill the remaining ports with a pair of included singularity stubby and performances never been so convenient!
Following on the latest improvement of the X-AIR 5.8 MK II, this shrunk down X²-AIR is nothing less than the original beside its size. Bringing the high gain and wide horizontal beam in a new compact and light package.
- Bandwidth: 5.1GHz-7.0GHz
- Gain: 13 dBic
- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 74deg.
- Vert. beam @-3dB**: 34deg.
- Connector: SMA
- Dimension: 72mm x 34mm x 22mm
- Weight: 34g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Flights done with TrueRC Canada’s X²-air 5.8:
These antennas work like a charm! Highly recommend if you wanna have better video penetration or long range flights. TrueRC is a very good antenna designer and most of my antennas from them have worked flawlessly. Highly recommend!
Seems like a nice improvement over the original, I think I get a little better penetration and it’s more compact size makes it less prone to flopping around
