The Runcam Link Phoenix DJI Digital HD air unit system is fully compatible with the DJI Digital FPV ecosystem! The Phoenix HD camera has a 1/2" sensors with a transmitted resolution of 1280x720 @60fps.
FPV pilots fly DJI because of its clear HD image, long ranges, and lack of visible interference. The Runcam Link has an end-to-end latency maximum of 32 ms which provides a great FPV experience!
Specifications

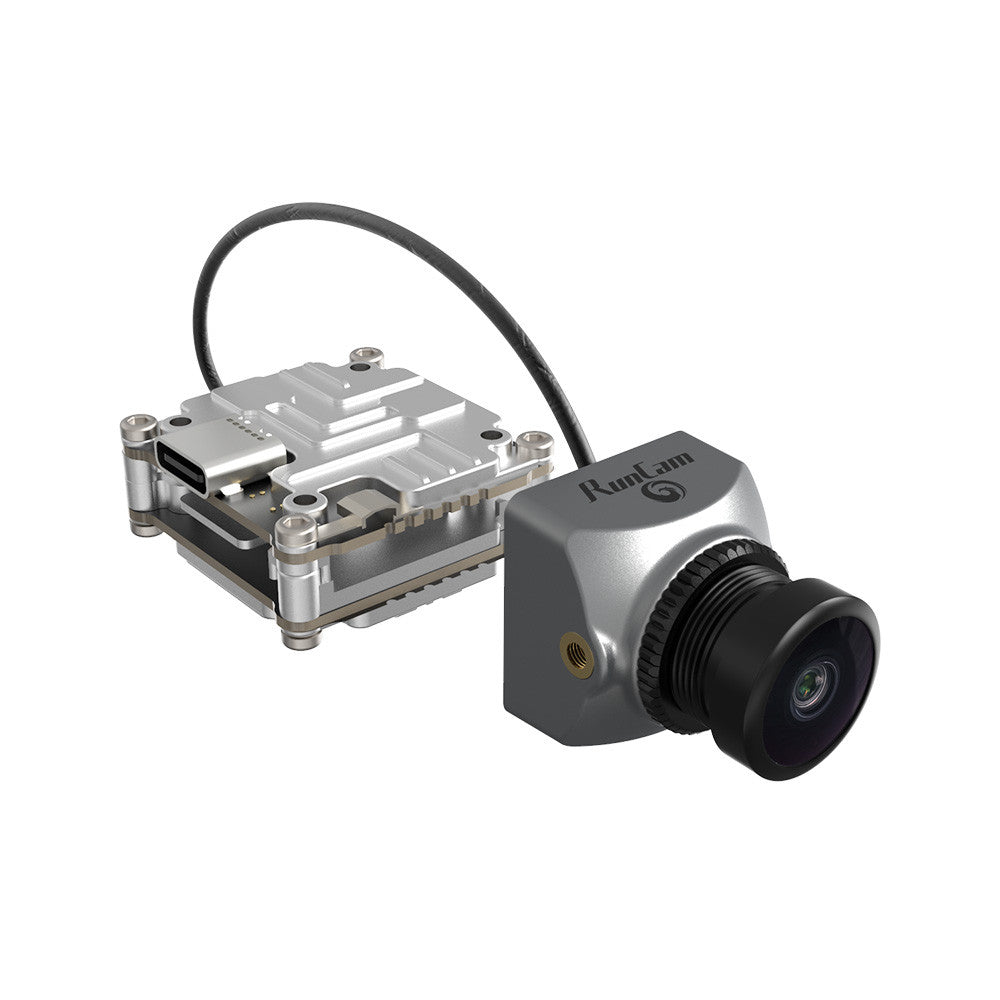

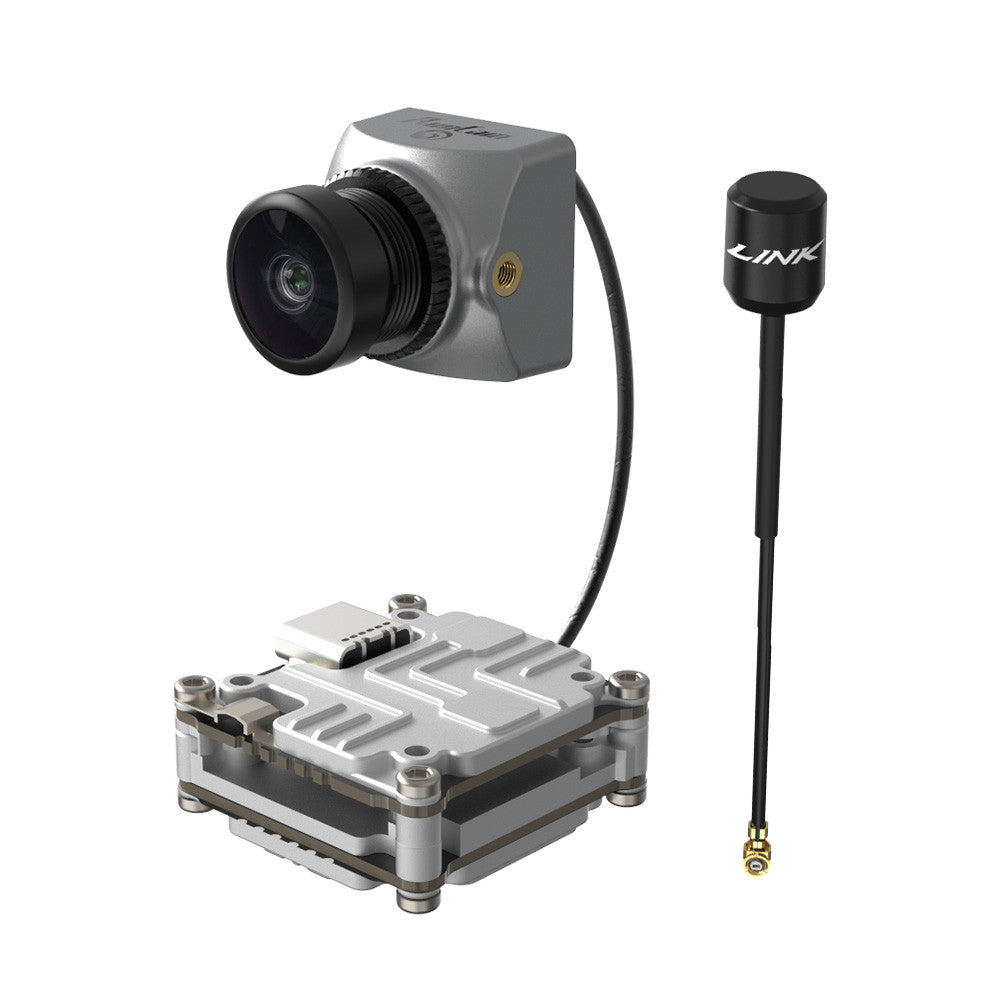

RunCam LINK Phoenix HD Kit
Frequency: 5.725-5.850 GHz
Max. Distance: FCC/SRRC: <4 km & CE: <0.7 km
Power: 7.4-26.4 V@ 4-9W
Dimensions: 29×29×13 mm
Net Weight: 19.5 g

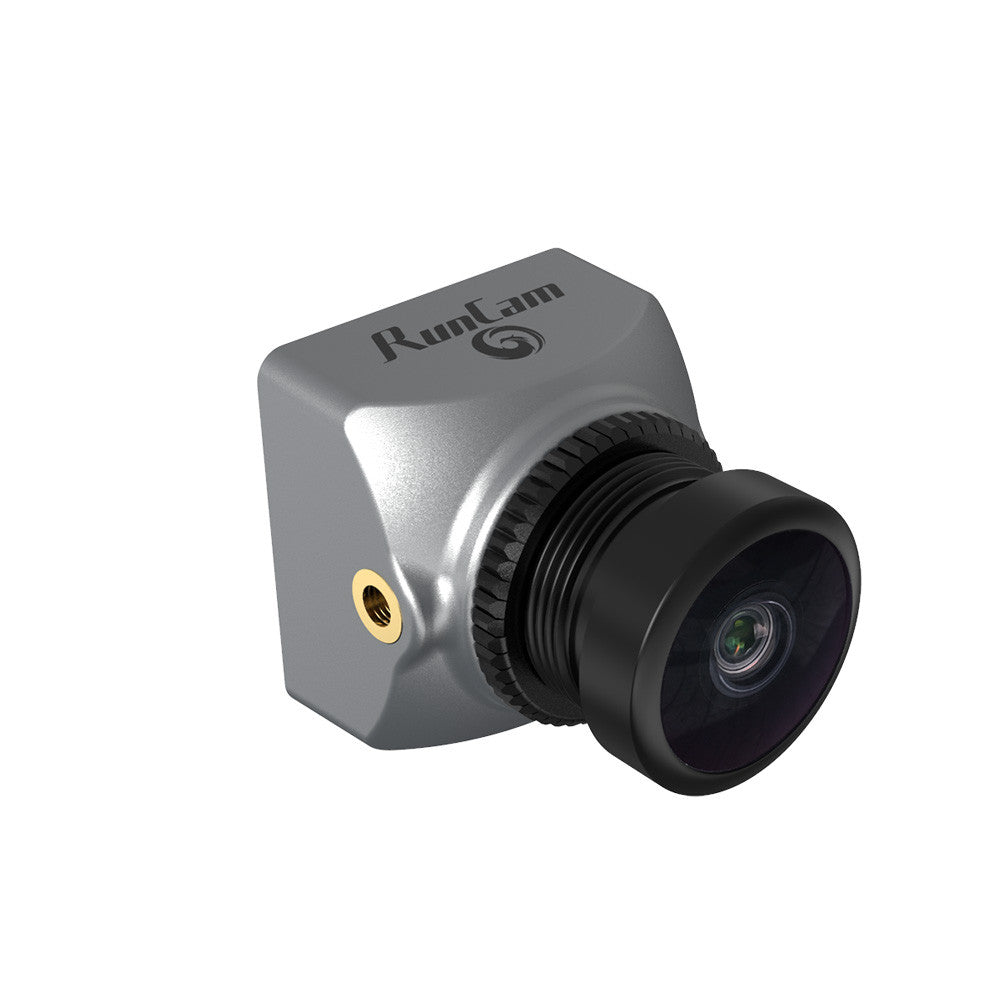

RunCam Phoenix HD Camera
Image Sensor: 1/2”
Resolution: 1280*720@60fps
LENS: FOV D:157° H:133° V:72°
Shutter: Rolling Shutter
Coaxial Cable: 120 mm
Dimensions: L19mm*W19mm*H23.5mm
Net Weight: 7.5g
PACKAGE INCLUDES:
1 x RunCam Link Phoenix HD Air Unit And Phoenix HD Cam
Very happy with this DJI vtx. I set it up on my 7" to replace my analog phoenix and the video upgrade can not be talked about enough. once I went digital, I just can't use analog anymore.
E
Edward Sanders
Love the Runcam link.
Great camera. Need to get it back in stock
J
JoeE
Good image
First time using digital video. Put this in a Armattan Gecko 4" with a Lumenier MiniF7 FC/ESC stack, and powered with a small 12V BEC/regulator.
Great image quality, but didn't survive a head on hit to the edge of a basketball backboard on my first test flight! OOF! I hit hard enough that I also bent the gecko's titanium cage and the quad tumbled a few dozen feet, so no surprise that the camera was shattered too, but that was my fault!
The runcam link unit survived and will be replacing the camera. All other components survived except the camera cage. Will be comparing the digital phoenix and wasp cameras soon.
D
Dan Sullinger
Nope, bad low lighting, contrast way off
The Caddx Polar system blows this away, in low light and on proper contrast. Big Runcam fail here.
Handy as a second transmitter for travel, tiny whoops, etc
Surprisingly good for the price especially with ELRS. It has just enough switches that I can do most of what I can with the TX16S, and it's so much easier to throw in a bag and go. My only wish is that I could put the thumb-grippies style of stick ends on it easily (and still remove them for storage), but maybe someone will come up with an adapter or similar. Next step is to try a Gemini ELRS nano module and see what kind of range is possible on that.
