The GEPRC team specially designed a new case for Naked Camera GP9/10/11. The front case is processed by high-precision CNC, and the surface is sandblasted and oxidized. The texture is high-grade and beautiful. Sun grain treatment, comfortable and delicate touch.

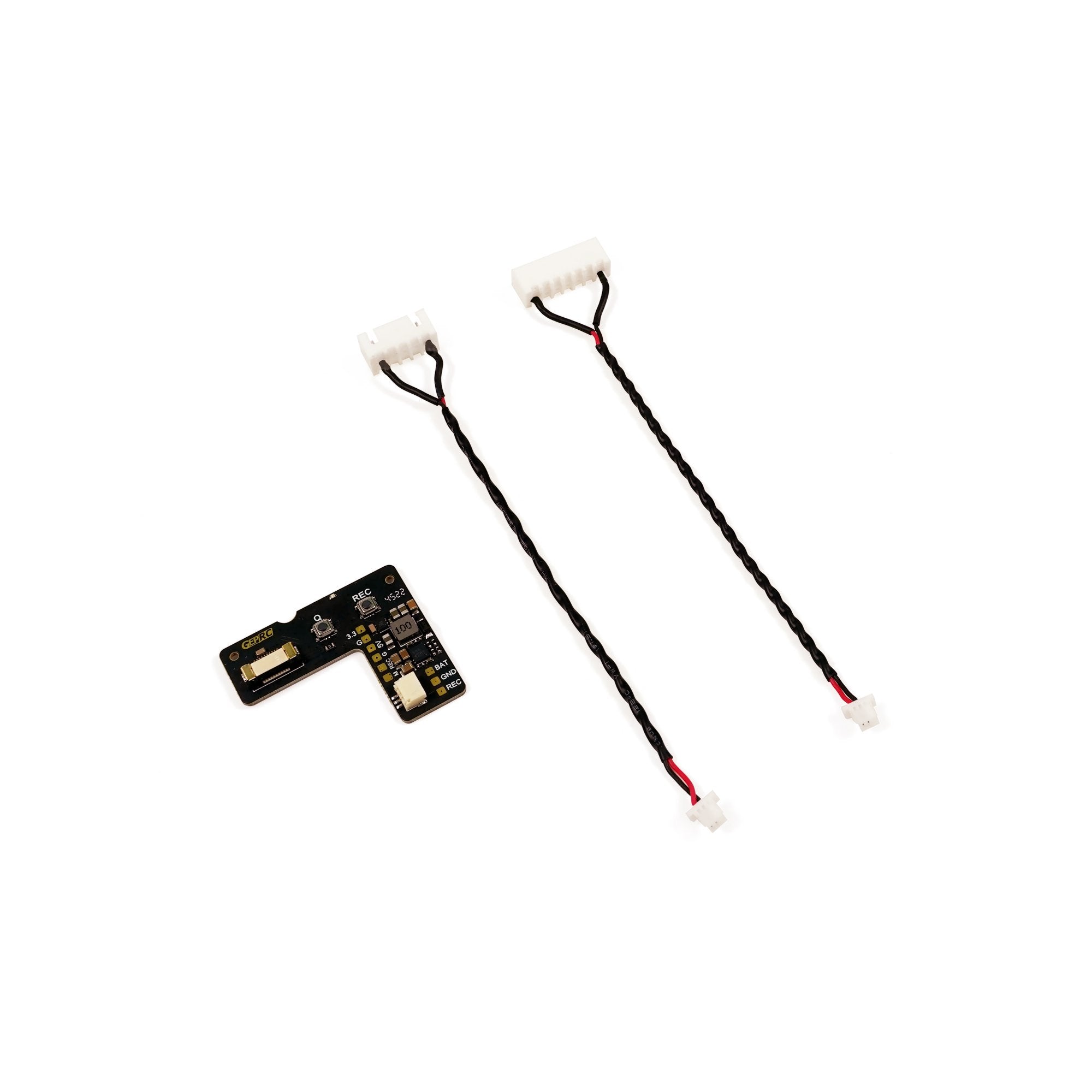

The connection between the BEC module and the main board adopts a reliable and stable FPC flexible cable connection to prevent poor contact. The module adds a 3.3V power supply and is assembled with a cooling fan. BEC supports 2S-6S LiPo battery voltage input, which perfectly matches Naked Camera GP9/ 10/11 motherboard, easy and fast installation. The installation spacing of the base is 24.5mm, suitable for Cinebot series, CineLog series, Crocodile series, Rocket series, Crown series and other models.
Specifications
Model: GEPRC Naked Camera GP9/GP10/GP11 Kits
Brand: GEPRC
Color: Titanium\Black Color
BEC Input : 2S-6S Lipo battery
BEC Output:5V-2.5A@3.3V-500mA
BEC Connector: SH 1.0 3P connector
Protective glasses: UV Protective Glasses

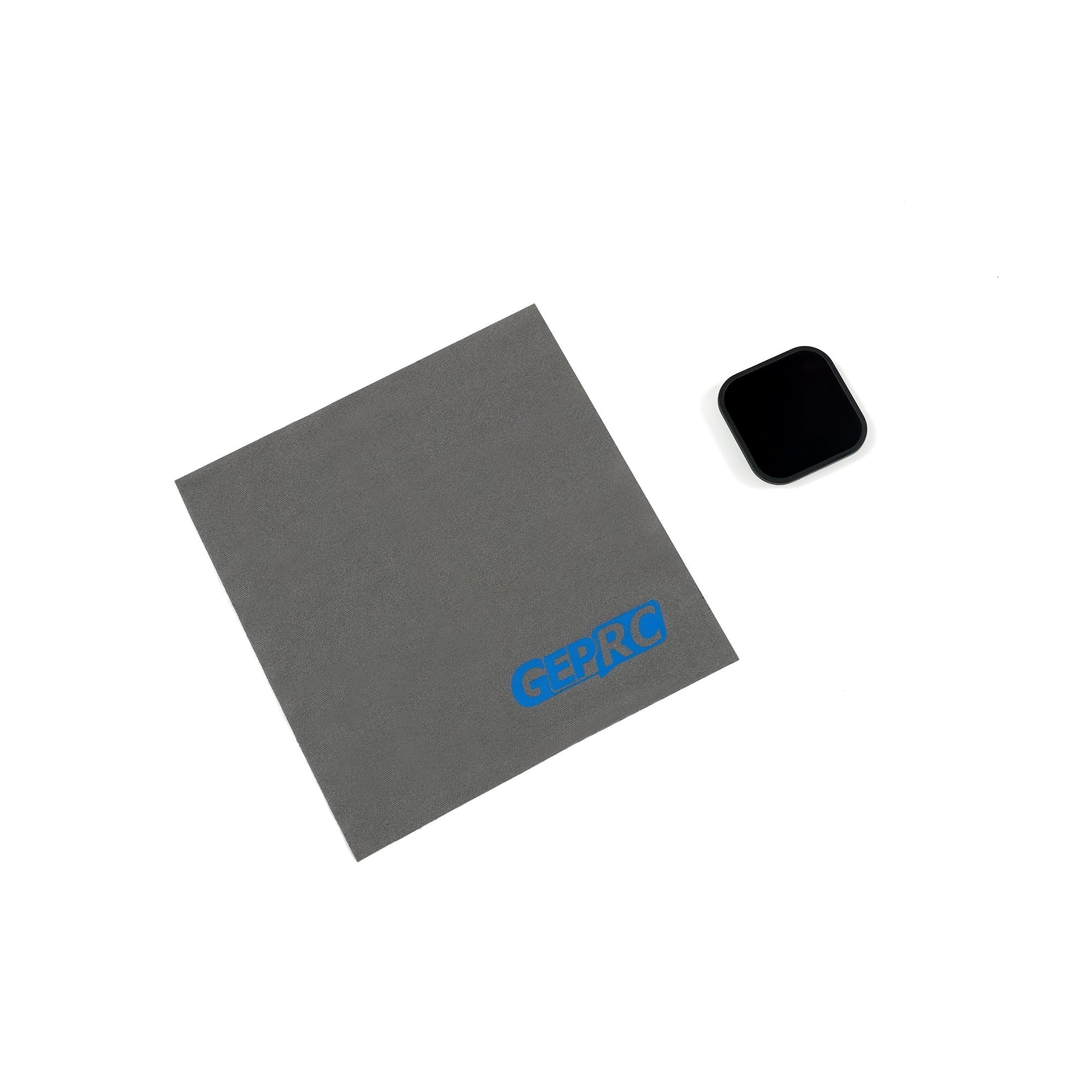

Filter: ND16
Front Case material : Aluminum #7075-T6 (CNC)
Rear Case material :#ABS
Naked Camera Kit weight: 29.6g
Manufacturing Process of Case: High-precision CNC processing, mold injection, surface Texture treatment, comfortable and delicate touch
Features
1. Lightweight Naked camera kit.
2. BEC module design5V-2.5A@3.3V-500mAoutput.
3. The front case is machined with aluminum 7075-T6 CNC to dissipate heat for the motherboard CPU.
4. Design micro-fan heating fan.
5. Compatible with GEPRC ND8/ND16/ND32 filters.
6. BEC uses FPC flexible cable to connect with the motherboard to prevent poor contact.
7. Support 2-6S LiPo battery for powering BEC.

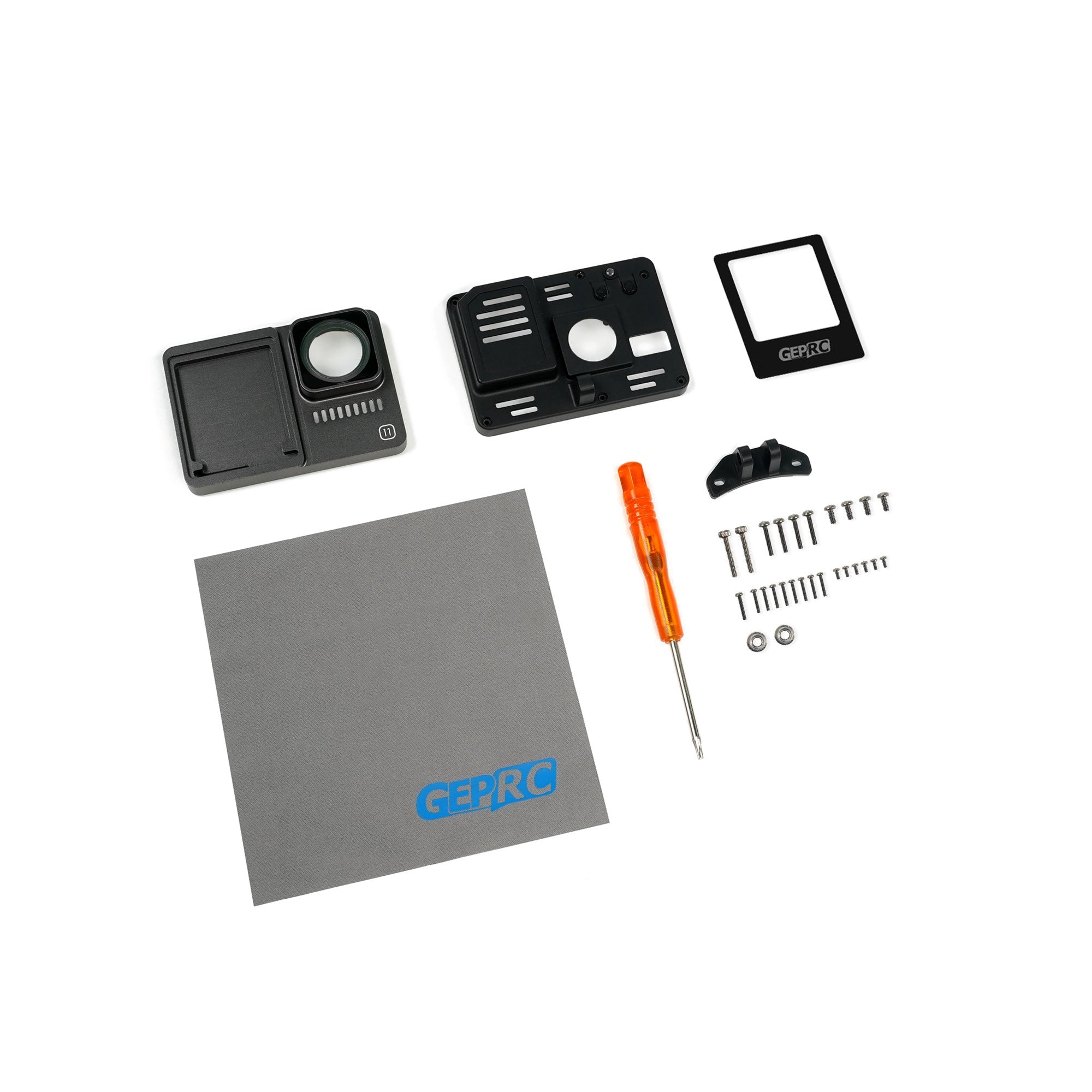

8. The Naked Camera kit supports the installation of Naked Camera GP9/10/11 cameras.
