Holybro Pixhawk 6X (ICM-45686)

The Holybro Pixhawk 6X (ICM-45686) is an advanced flight controller designed for professional UAV applications. Known for its exceptional reliability and versatility, the Pixhawk 6X provides drone enthusiasts and developers with the tools necessary to achieve superior flight performance. Its robust architecture and innovative features make it ideal for a variety of applications, from aerial photography to racing drones.

Key Features:

  • High Precision Sensors: Equipped with the ICM-45686 IMU, ensuring accurate attitude control and stabilization for enhanced flight safety.
  • Flexible Configuration: Supports multiple flight modes and customizable settings, catering to both beginners and seasoned pilots.
  • Robust Connectivity: Features numerous ports for easy integration with various peripherals, including GPS modules and telemetry systems.
  • Open-Source Software Compatibility: Supports PX4 and ArduPilot firmware, providing users with extensive options for customization and tuning.

Elevate your UAV projects with the Holybro Pixhawk 6X (ICM-45686), a reliable and powerful flight controller that meets the demands of modern drone technology.


Key Design Points

  • Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ technology & 2x Barometer sensors
  • High performance STM32H753 Processor with clock speed up to 480 MHz
  • Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
  • Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
  • All New advanced durable vibration isolation material with resonance frequency in the higher spectrum
  • Ethernet interface for high-speed mission computer integration
  • Temperature-controlled IMU board, allowing optimum working temperature of IMUs

All new Vibration Isolation Design

This new vibration isolation design uses same custom-formulated durable isolation material as the Pixhawk 6X Pro, in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone

Note:

  • The Rev 8 Version is supported in the PX4 1.14.3 release or later, as well as the Ardupilot 4.5.0 stable release or later. It ships with PX4 firmware by default. User can also use Ardupilot firmware by flashing the firmware via Mission Planner or QGroundControl.
  • Power module comparison chart

Specification

Processors & Sensors

  • FMU Processor: STM32H753
    • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
  • IO Processor: STM32F103
    • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
  • On-board sensors (Shipping Currently, Rev8)
    • Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
    • Barometer: ICP20100 & BMP388
    • Mag: BMM150
  • On-board sensors (Previous Revision, Rev 3/4)
    • Accel/Gyro: BMI088/ICM-20649
    • Accel/Gyro: ICM-42688-P
    • Accel/Gyro: ICM-42670-P
    • Mag: BMM150
    • Barometer: 2x BMP388

Electrical data

  • Voltage Ratings:
    • Max input voltage: 6V
    • USB Power Input: 4.75~5.25V
    • Servo Rail Input: 0~36V
  • Current Ratings:
    • Telem1 output current limiter: 1.5A
    • All other port combined output current limiter: 1.5A

Mechanical data

  • Dimensions
    • Flight Controller Module: 38.8 x 31.8 x 16.8mm
    • Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
    • Mini Baseboard: 43.4 x 72.8 x 14.2 mm
  • Weight
    • Flight Controller Module: 31.3g
    • Standard Baseboard: 72.5g (Aluminum)
    • Mini Baseboard: 26.5g

Reference Links

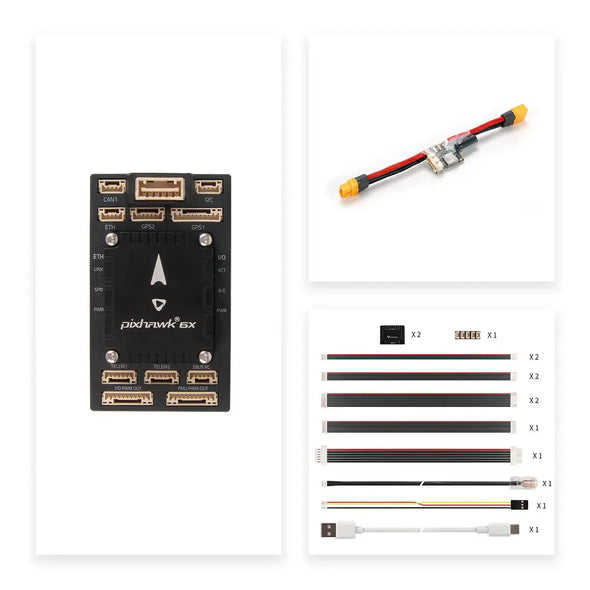

SKU 11073 includes:

  • Pixhawk 6X Flight Controller Module

SKU 20300 /20293 includes:


Accessories:

Pixhawk PWM Cable for Tekko32 4in1 ESC
