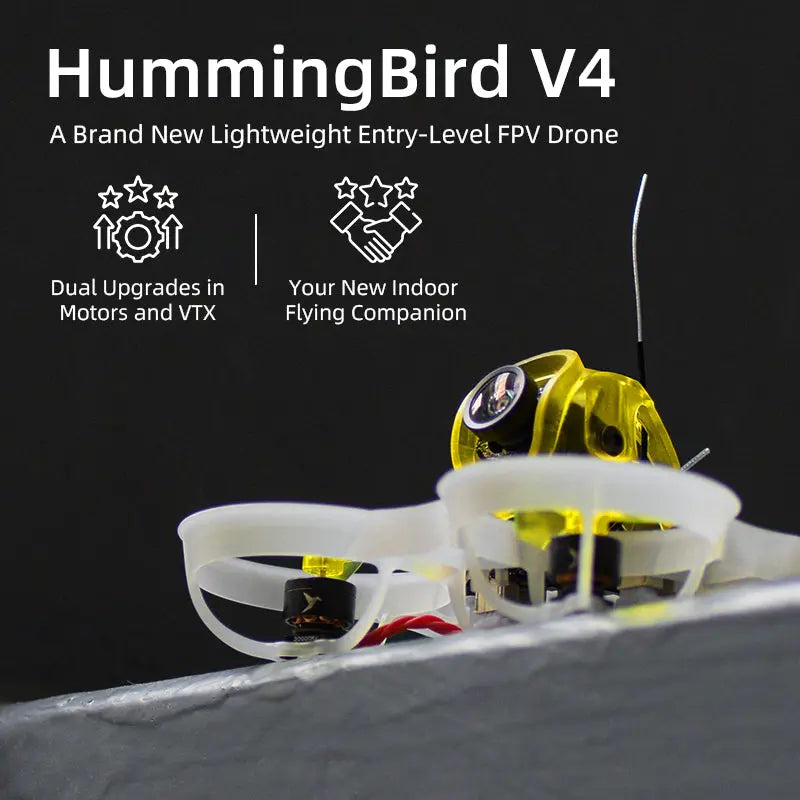

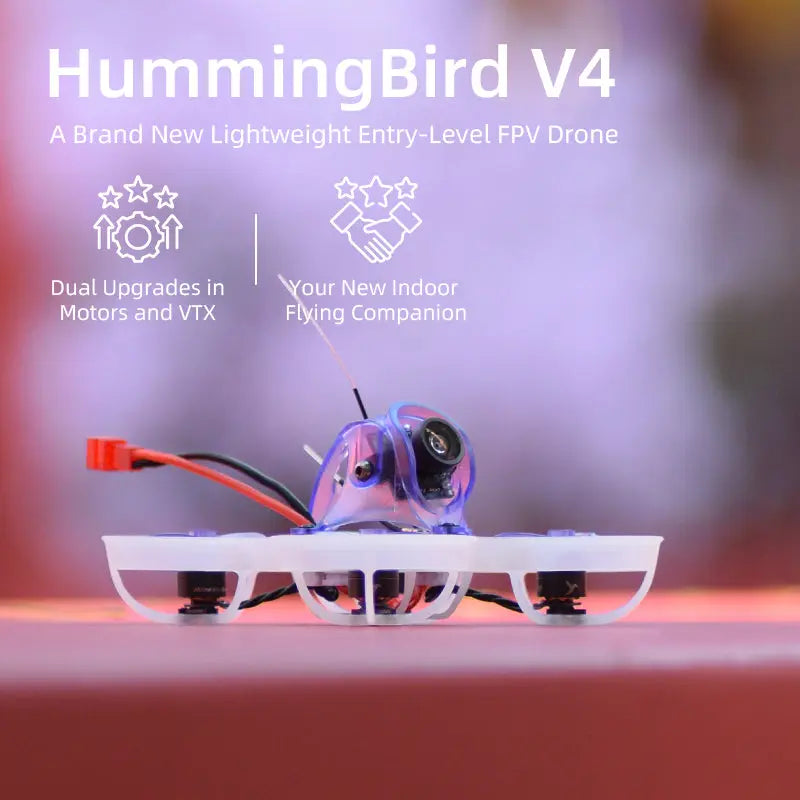

Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G

ALL Hummingbird V4 comes with Random Color

Specifications:

Drone Size: 65mm
Flight Controller: Hummingbird V4 with SmartMax 400mw VTX ELRS2.4G AIO Flight Controller Available Soon
Frame: Cockroach V3 65mm Brushless Ultra Light Frame
Motors: Hummingbird 0702 Motor 30000KV  Available Soon
Propellesr: Azi Tri-Blade 31mm Propeller Random Color
Camera: BeeEye Camera
Canopy: Goober Canopy v2 Random Color with Camera 3DPrinted adapter


Total Weight of the Drone without battery:

-19.5g (PP Material Cockroach65 v3 frame)

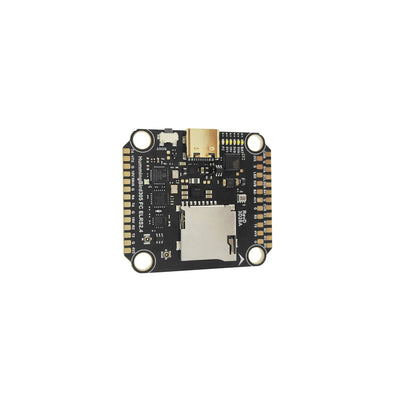

Hummingbird V4 ELRS AIO Flight Controller Specs:


MCU: STM32F411
GYRO:BMI270
VTX:  25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: 2.4G Antenna with MHF3 connector
Flight Controller Weight: 4.57g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5x25.5mm
Battery input: 1S Only
Uart1: free
Uart2: free
Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin

SPI ELRS3.x receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.x or above version. You will need to update your remote controller ELRS to 3.x version because betaflight 4.5 will no longer support any lower version of 3.0)
Please read through the SPI base information if you have difficulty with binding

Recommended Batteries:

Nitro Nectar Gold 300 mAh 1S PH2.0
Nitro Nectar Gold 250 mAh 1S PH2.0

Firmware

1. Hummingbird V4 Betaflight firmware


What’s included:

1x Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G
(Batteries are not included with the product.)
1x Azi Prop 31mm 1.0 random color. 1set.

Warning:

This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.

If you mess up the setting?

Important Notice: If you experience issues with your drone, do not flash the firmware. Simply perform a factory reset using the configuration tool (e.g., Betaflight Configurator) and then do an accelerometer calibration. For further assistance, please contact our support team.

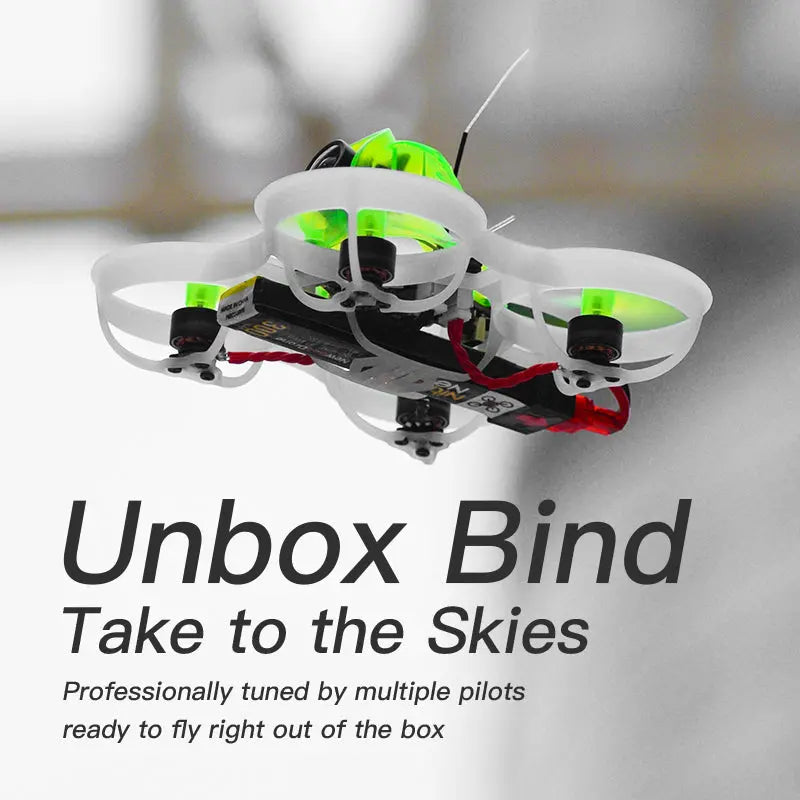

Binding procedure:

To bind, connect to USB power or a battery source. Push the bind button on the front bottom of the flight controller to trigger the binding mode. Bind it to your radio controller. (Note: The Hummingbird v4 only supports ELRS 3.x or a later version. If your remote controller is ELRS 2.5, you will need to update your ELRS TX Module.)

Video:

Hummingbird V4 Wire Diagram:
