Elevate your FPV experience with the Flywoo FlyLens 75 O3 Frame Kit. Designed for performance and durability, this frame kit provides a robust foundation for building your own lightweight drone. The FlyLens 75 is perfect for both beginners and experienced pilots, offering exceptional agility and stability during flight.
Crafted from high-quality materials, the Flywoo FlyLens 75 O3 Frame is engineered to withstand the rigors of FPV flying while minimizing weight. Its sleek design not only enhances aerodynamics but also allows for easy access to internal components, making maintenance a breeze.
Whether you’re racing through the skies or capturing stunning aerial footage, the Flywoo FlyLens 75 O3 Frame Kit will give you the performance you need to take your flying to the next level.
Key Features:
Durable Construction: Built from high-quality materials for resilience during flights.
Lightweight Design: Optimized for minimal weight, enhancing maneuverability and performance.
Easy Assembly: User-friendly design allows for quick and simple construction.
Versatile Application: Ideal for racing, freestyle flying, and aerial photography.
Transform your drone-building experience with the Flywoo FlyLens 75 O3 Frame Kit and enjoy the thrill of FPV flying like never before.
Description:

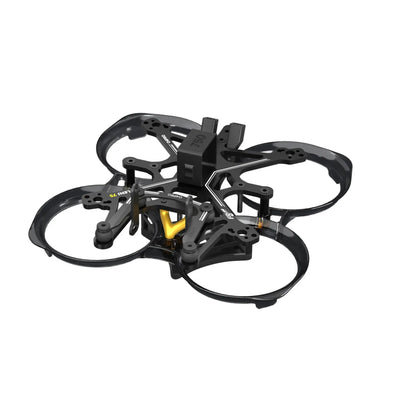

The Flylens 75 frame is a 1.6-inch whoop-type frame designed for indoor and narrow space flight. It is compatible with various mainstream digital and analog image transmission systems. The frame is equipped with an injection-molded protective ring and a carbon black treatment process.
The Flylens series opens up the field of micro-crossing machine film and television creation, providing the latest and most reliable solutions for exploring and capturing new perspectives.
Design Features：
Latest three-point CNC damping platform design to perfectly eliminate high-frequency vibration and jelly effects
Flight control hole position is 25.5x25.5mm, the image transmission compartment hole position is 20x20/25.5x25.5mm, and the motor hole position is 6.6mm \ 9mm
Compatible with various mainstream devices on the market
Highlights:
1/ Compact and lightweight design for a 1.6 inch drone.
2/ Supports O3 digital image transmission for long-range, 4K high-definition, low-latency transmission.
3/ High-strength PC injection-molded protective ring for enhanced durability and safety.
4/ Unique CNC damping platform for stable video recording.
5/ Bottom-mounted image transmission PC compartment for protection and improved heat dissipation.
6/ Quick-release frame design for easy component separation.
7/ Reverse thrust propeller configuration for stable flight and extended endurance.
Specifications:
Brand
FLYWOO
Model
Flylens 75
Main Board Thickness
2mm
CNC Gimbal Thickness
1mm
Protective Ring Material
PC+
Flight Control Hole Position
25.5x25.5mm
Image Transmission Hole Position
20/25.5mm Motor Hole
Position
6.6mm/ 9mm
Propeller Size
1.6 inch
Camera Hole Position
14mm\18mm\20mm
Recommmend Configuration :
Model
FlyLens 75 HD O3 \ O3 Lite 2S Brushless Whoop FPV Drone
O3 Frame kit (20mm Cam Size): Suitable for all 20mm-sized cameras, such as Nebula Pro, Wasp, Walksnail Micro Cam, and HDZero Micro Cam.
O3 Lite Frame kit (18mm Cam Size): Comes with a default 18mm CNC camera bracket. But You can also purchase an additional 14mm CNC camera bracket for installing such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop.
Flylens 75 Frame kit (14mm Cam Size): Suitable for all 14mm-sized cameras, such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop， Flywoo Nano Cam V3
