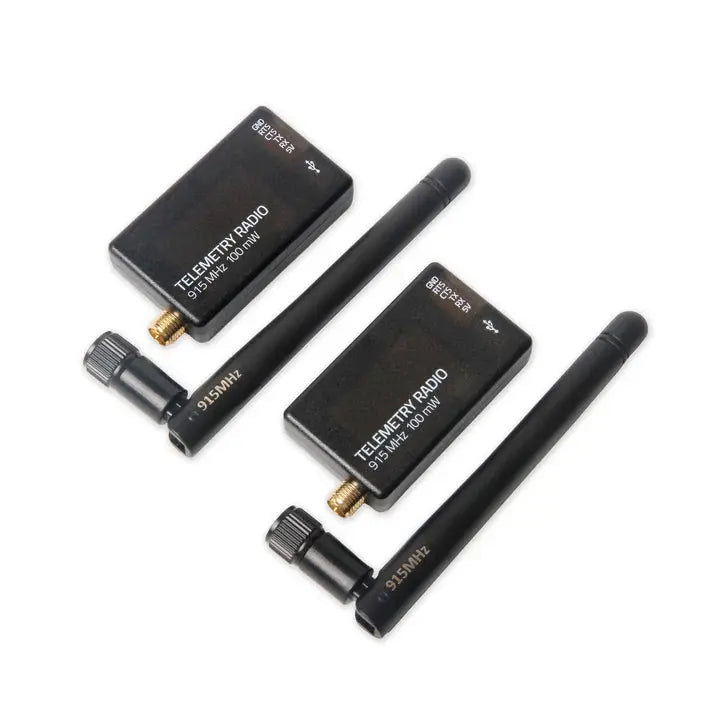

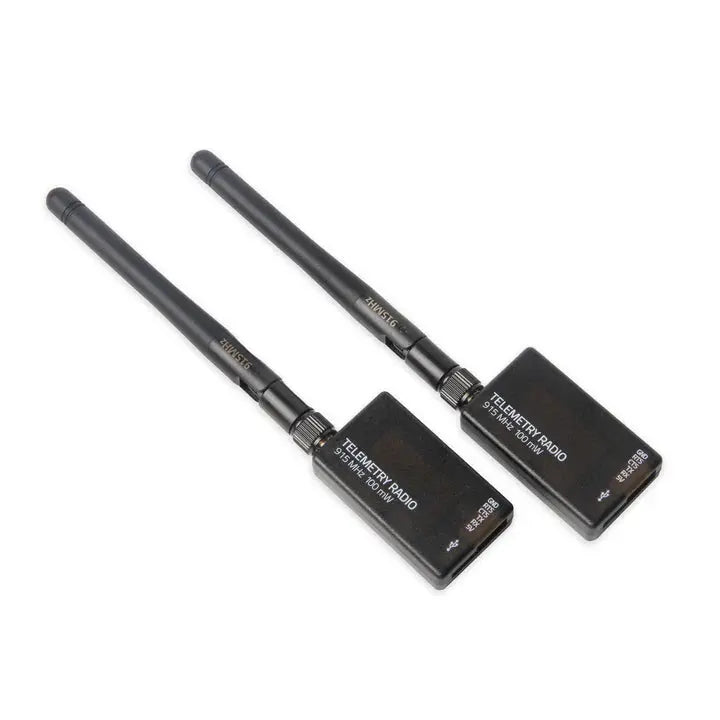

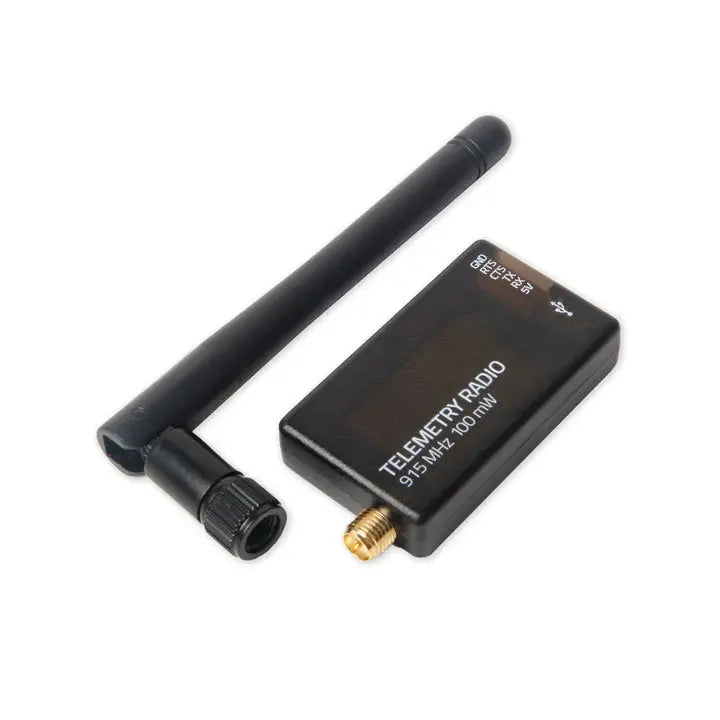

Overview

This Holybro SiK Telemetry Radio is a small, light, and inexpensive open-source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground). This radio is plug-n-play, ready for all Pixhawk Standard and other flight controllers, providing the easiest way to set up a telemetry connection between your Flight Controller and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4, and Flight Controller. The radios can be either 915 MHz or 433 MHz, and you should purchase the model that is appropriate for your country/region.

Features

• Open-source SIK firmware
• Plug-n-play for Pixhawk Standard Flight Controllers
• The Easiest way to connect your Flight Controller and Ground Station
• Interchangeable air and ground radio

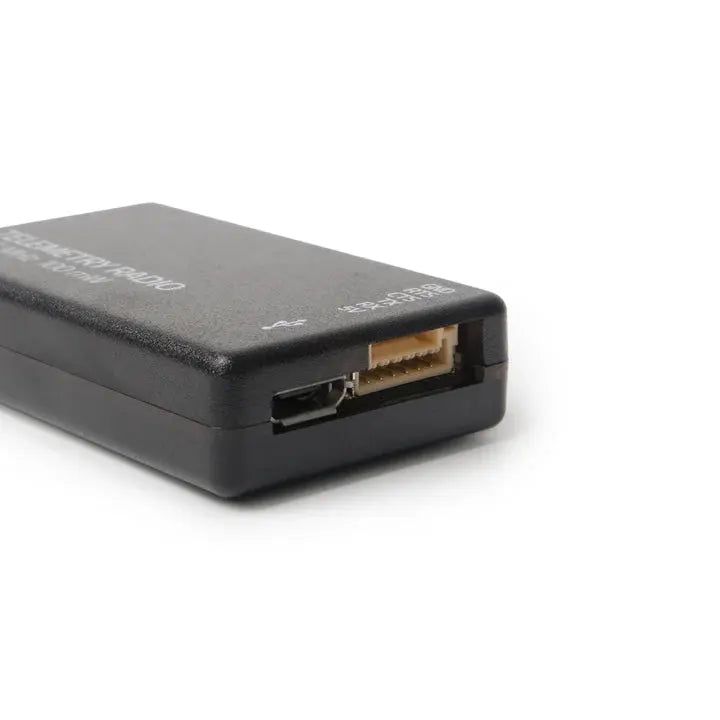

• Micro-USB port (Type-C Adapter Cable Included)
• 6-position JST-GH connector

Specifications

• 2-way full-duplex communication through adaptive TDM UART interface
• Transparent serial link
• MAVLink protocol framing

• Built in FT230X/FT23 USB to BASIC UART conversion IC

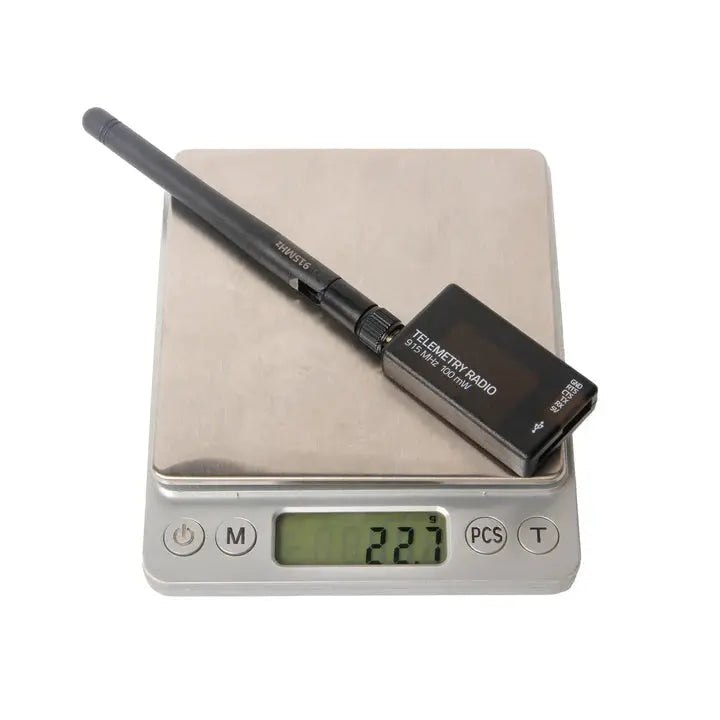

Electrical Data

• Supply voltage:
  • 100mW & 500mW version: 5V DC (from USB or JST-GH)
  • 1W version: 7~28V DC via XT30
• Transmit current: 100 mA at 20 dBm
• Receive current: 25 mA

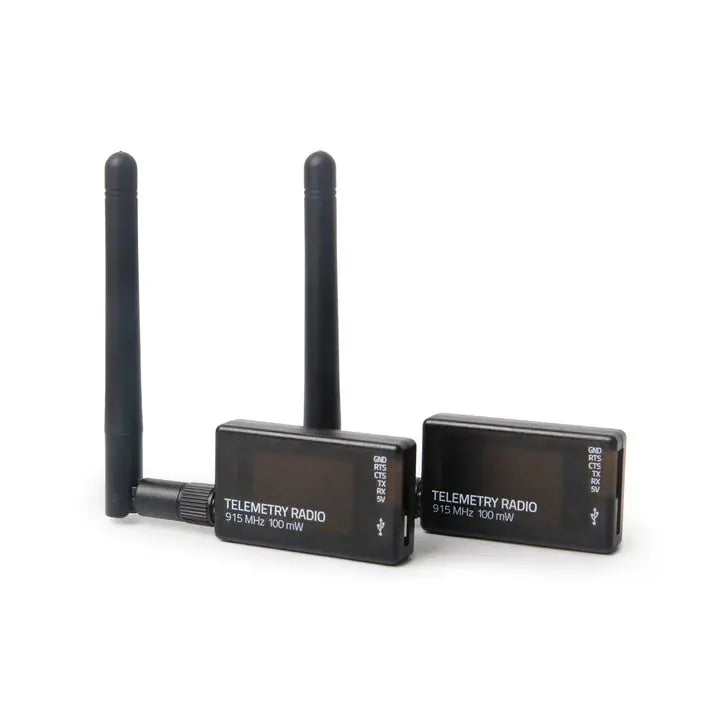

• Serial interface: 3.3 V UART

FCC IDENTIFIER

• 2AP22-HT03-V3

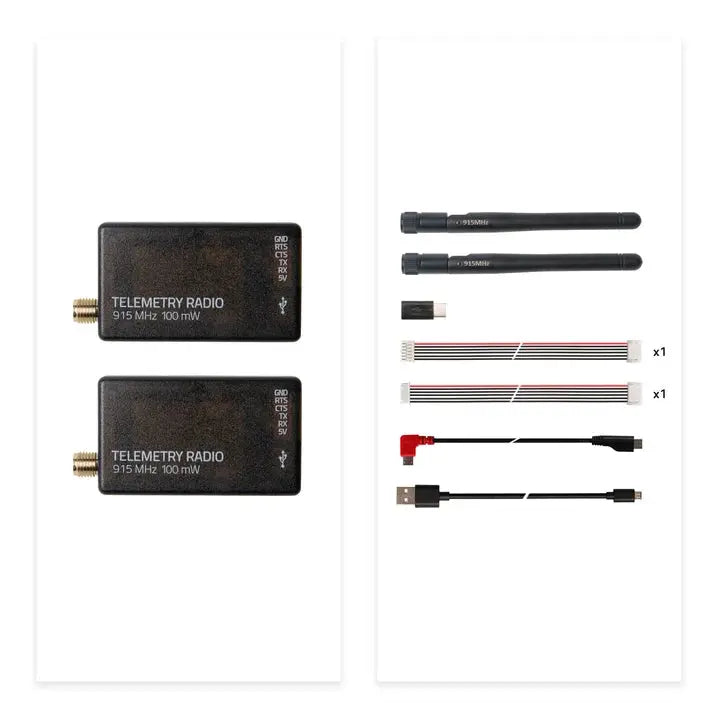

Package Included

• 100mW & 500mW options
  • Radio modules with antennas *2
  • Micro-USB to USB-A cable *1
  • Micro-USB to Micro-USB OTG adapter cable *1
  • Micro USB to Type-C Adapter
  • JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
  • JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
• Single 1W
  • 1W Radio modules with antennas *1
  • High-gain omnidirectional antenna *1
  • Male Type-C to male Type-C USB cable *1
  • Male XT30 to female XT30 adapter cable *1
  • Male XT30 to female XT60 adapter cable *1
  • JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
  • Rubber damping grommet *3
• Dual 1W
  • 1W Radio modules with antennas *2
  • High-gain omnidirectional antenna *2
  • Male Type-C to male Type-C USB cable *1
  • Male XT30 to female XT30 adapter cable *1
  • Male XT30 to female XT60 adapter cable *1
  • JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
  • Rubber damping grommet *3


Manual:

Telemetry-Radio-V3-Quick-Start-Guide

Some Tips:

https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html
