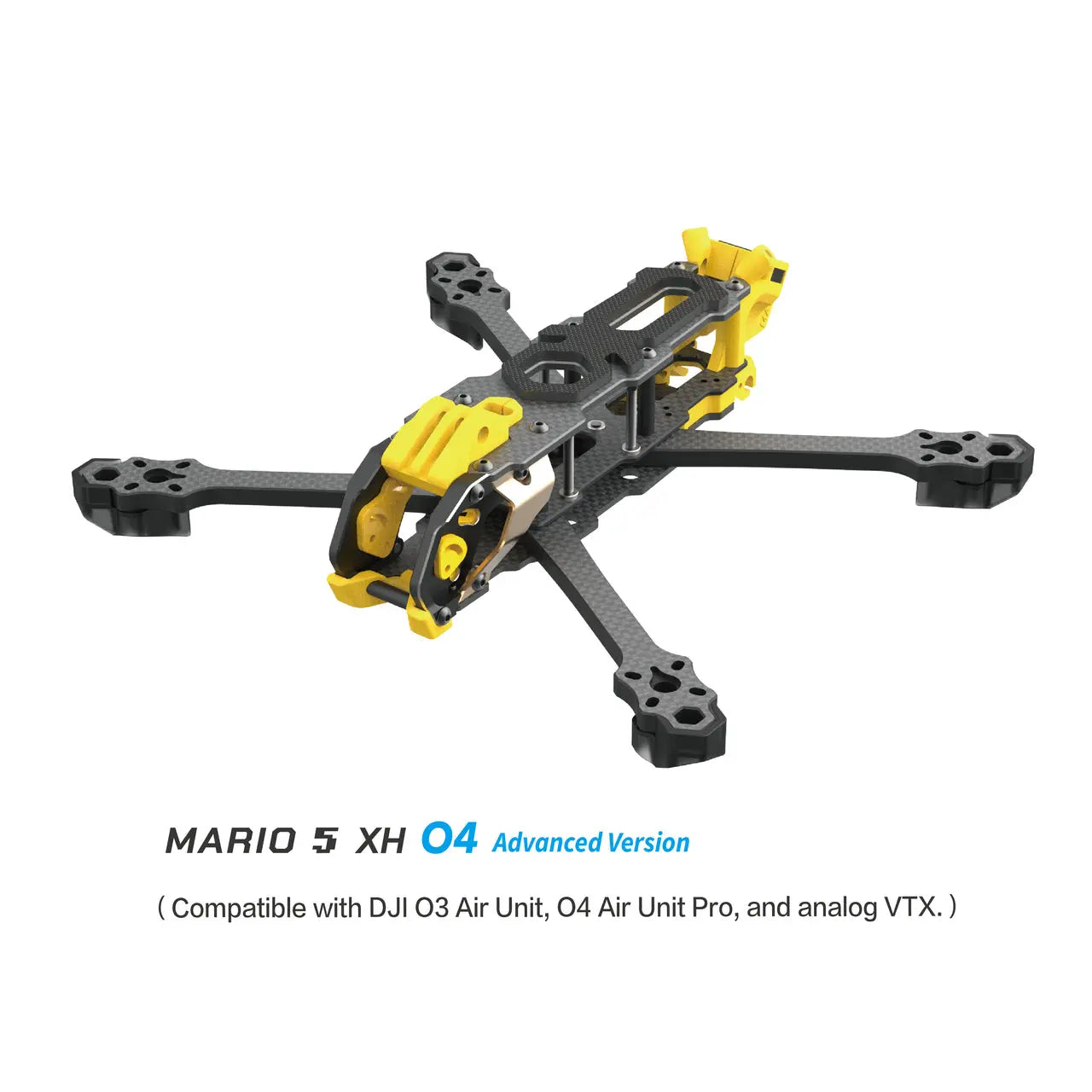

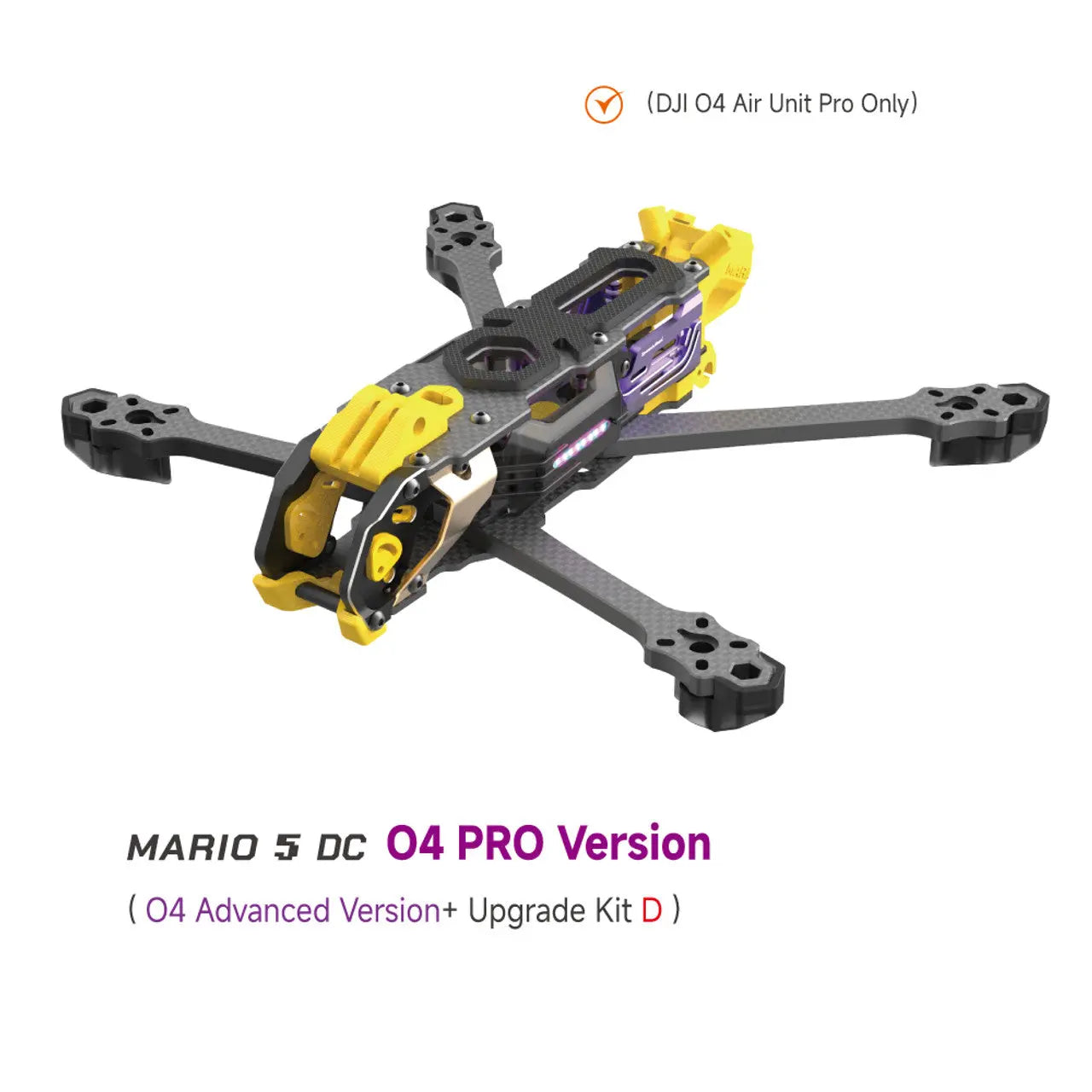

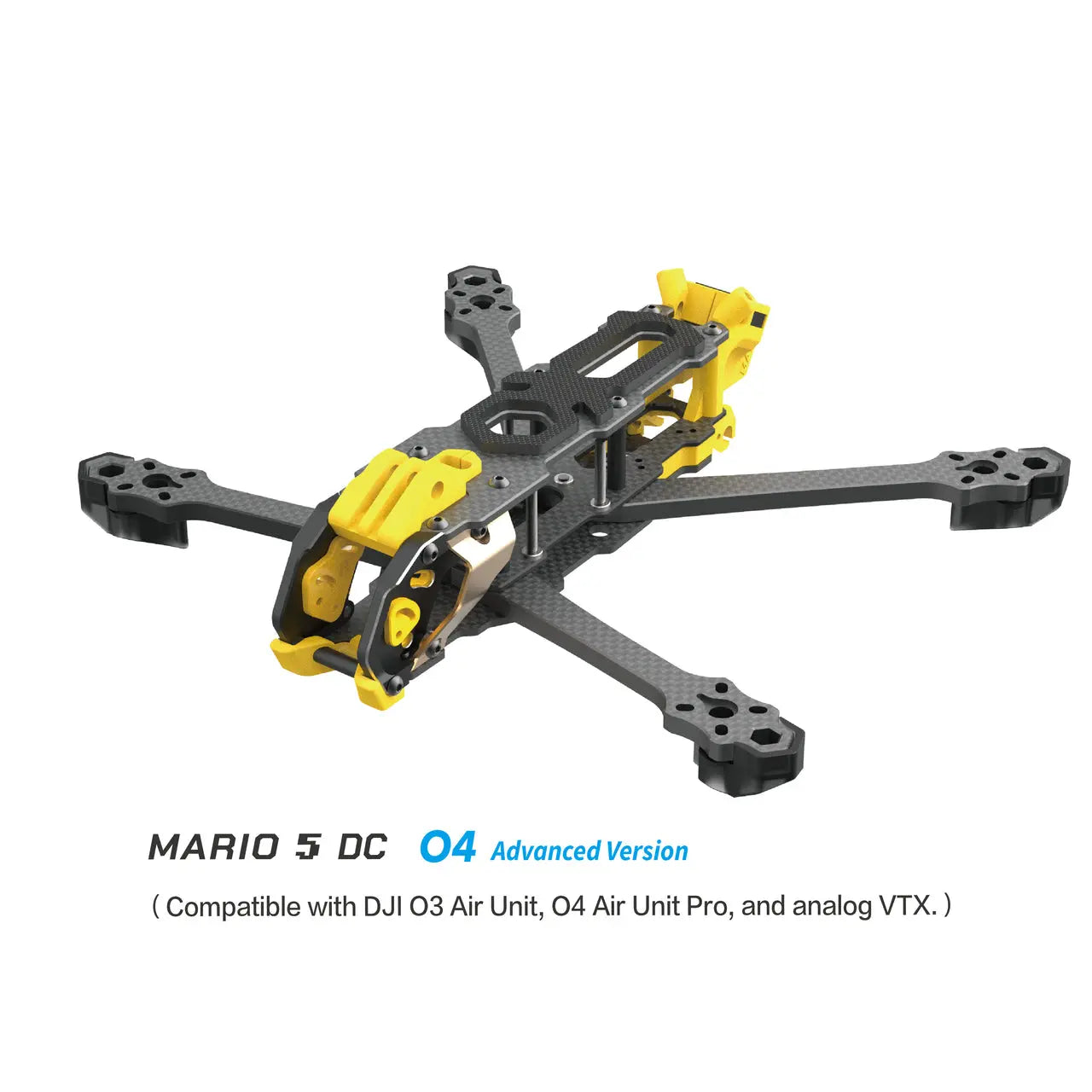

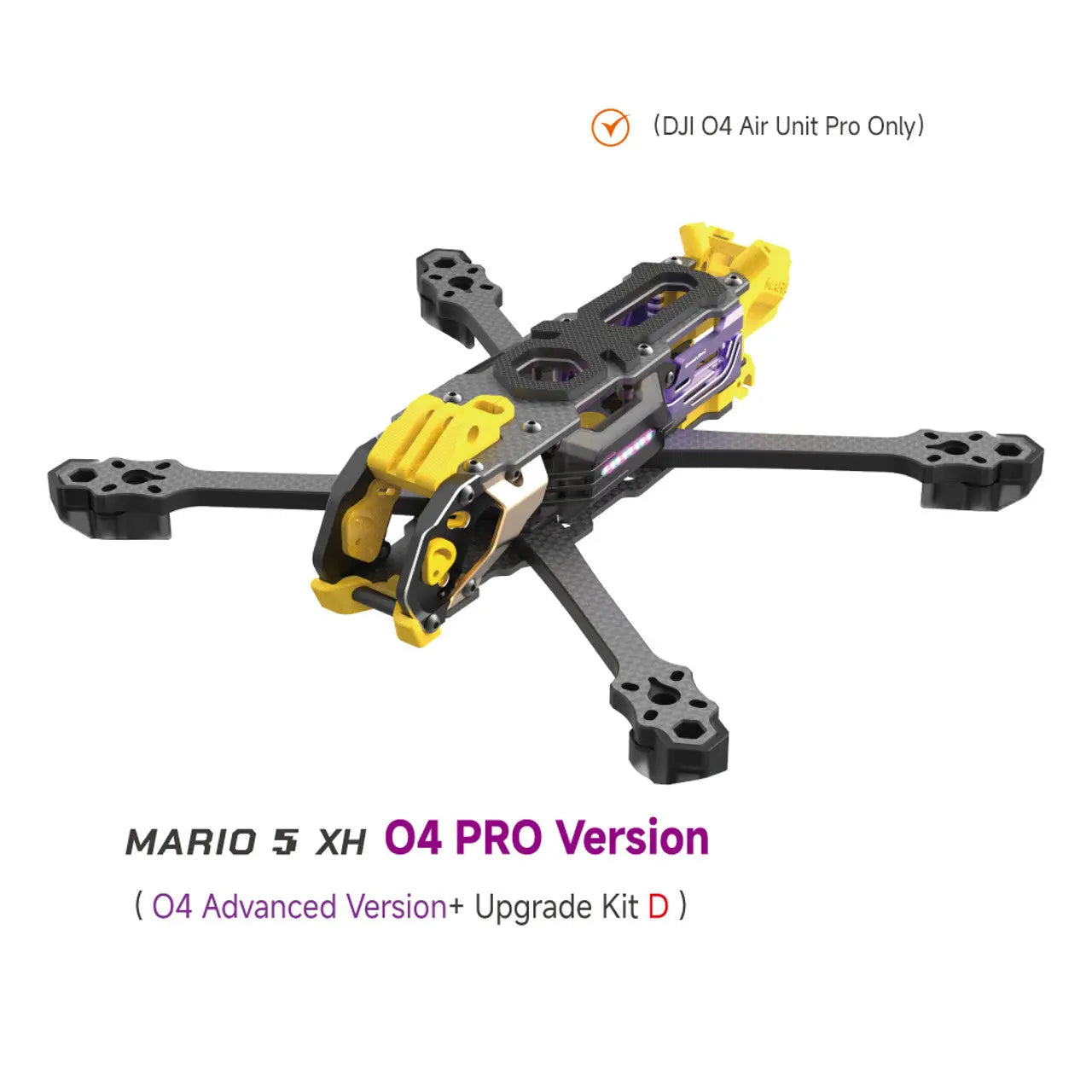

SpeedyBee Mario 5 Frame
SpeedyBee Mario 5 Frame
The SpeedyBee Mario 5 Frame is a versatile and durable 5-inch FPV drone frame designed for high-performance builds. Whether you're into freestyle, racing, or cinematic flying, the Mario 5 Frame offers a strong and lightweight carbon fiber structure that balances agility and resilience. With its easy-to-assemble design and spacious layout, it's compatible with a wide range of FPV components, making it a popular choice for both beginners and advanced pilots looking to customize their drone builds.
Key Features of SpeedyBee Mario 5 Frame:
Durable Carbon Fiber Construction : Built to withstand crashes and impacts while remaining lightweight for smooth flight performance.
5-Inch Propeller Compatibility : Perfect for freestyle and racing drones, offering a good balance between agility and control.
Spacious Design : Provides ample room for various FPV components, including large flight controllers, ESCs, and video transmitters.
Easy Assembly : Designed for quick and hassle-free assembly, making it easier to build and repair.
Versatile Mounting Options : Features multiple mounting holes and configurations for cameras, motors, and additional accessories.
With its robust design and adaptable layout, the SpeedyBee Mario 5 Frame is perfect for pilots looking to create a custom FPV drone that excels in performance and durability.
Model
SpeedyBee Mario 5 Frame
Mario 5 DC Wheelbase
227mm
Mario 5 DC Weight
129 ±5g (3D Printed Parts Excluded)
170 ±5g (3D Printed Parts and Injection)
Mario 5 XH Wheelbase
226mm
Mario 5 XH Weight
126 ±5g (3D Printed Parts Excluded)
167±5g (3D Printed Parts and Injection)
Top Plate Thickness
2.5mm(T300 3K)
Middle Plate Thickness
2.0mm(T300 3K)
Bottom Plate Thickness
2.5mm(T300 3K)
Arm Thickness
6mm(T300 3K)
Camera Mounting Screw
7mm
3D Printed Parts
Yellow TPU
Battery Anti-Slip Pad
Silicone 3mm
Motor Spring Hole Position
Φ8mm
Compatible Propeller Size
Max 5.1 Inch
Motor Mounting Hole Distance
16-19mm
FC Mounting Hole
30.5x30.5(M3)
VTX Mounting Hole
20x20(M2) / 25.5x25.5(M2)
Head Material
Aviation Aluminum Alloy
Aluminum Column Material
7075 D5*23mm/D46*22mm
Internal Mounting Height
23-31mm
Receiver Installation Space
25*13*6mm
Suitable Capacitor Size
Φ10mm*20mm
GPS Installation Size
18*18*7
Camera Compatibility
19mm/20
