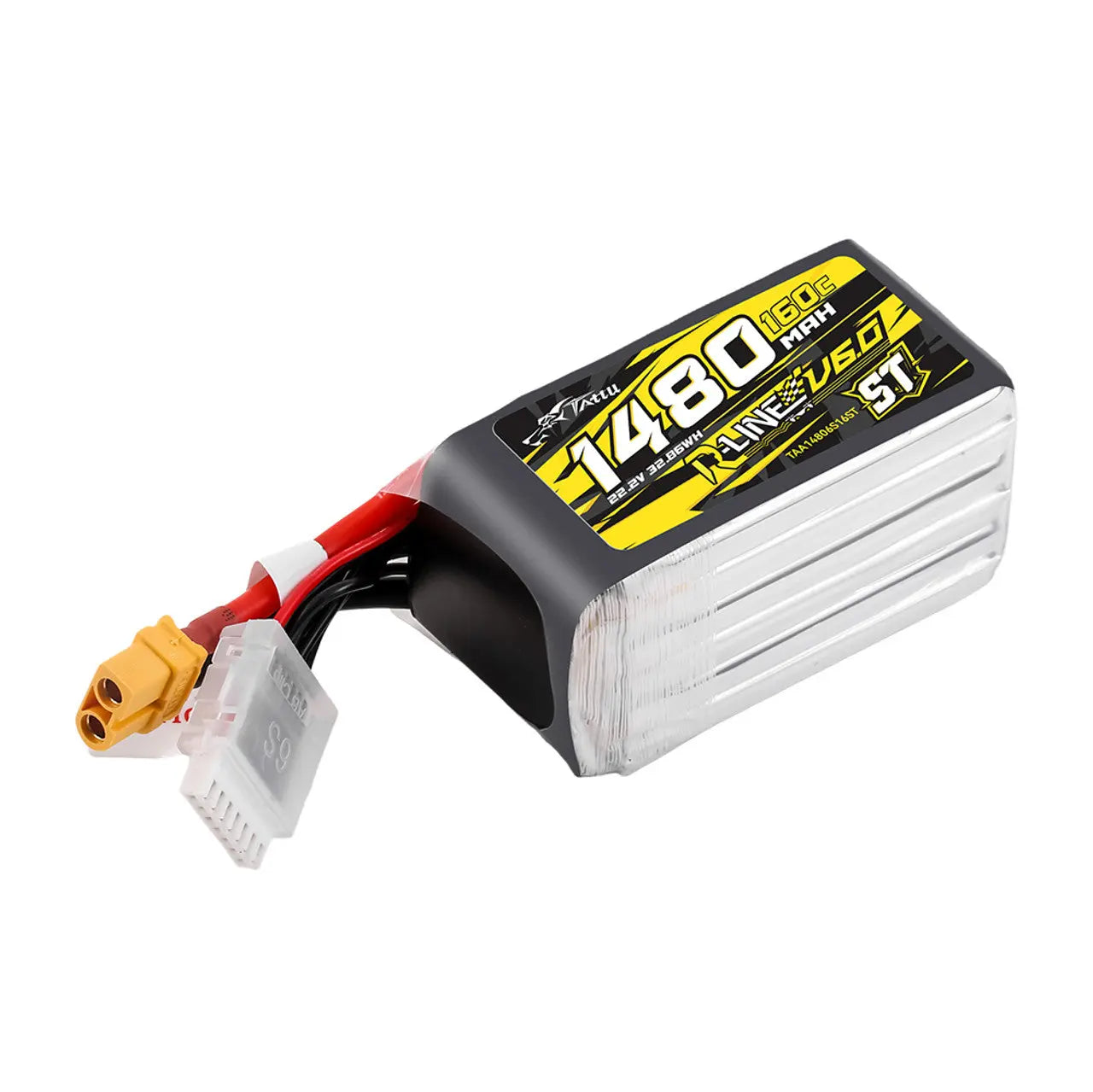

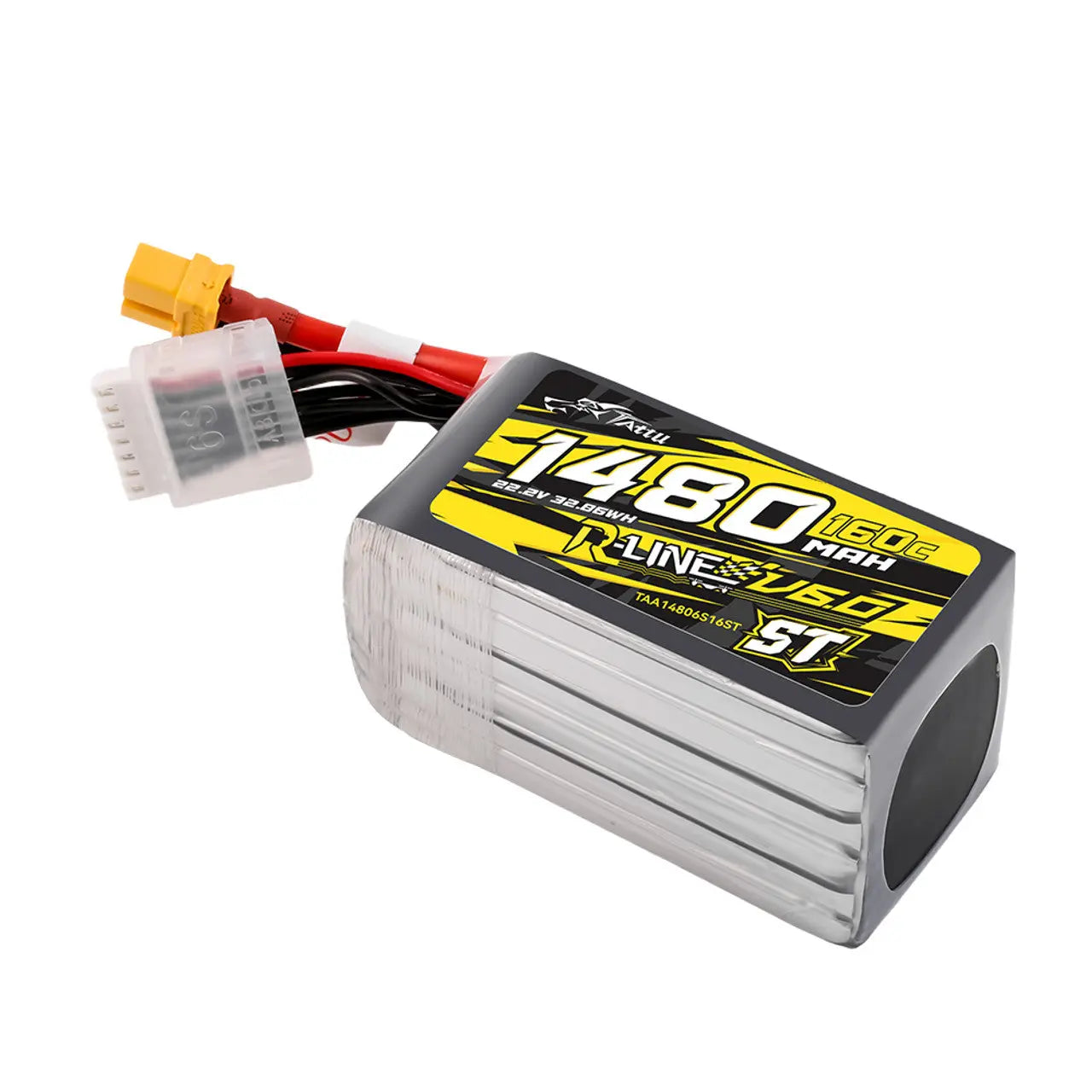

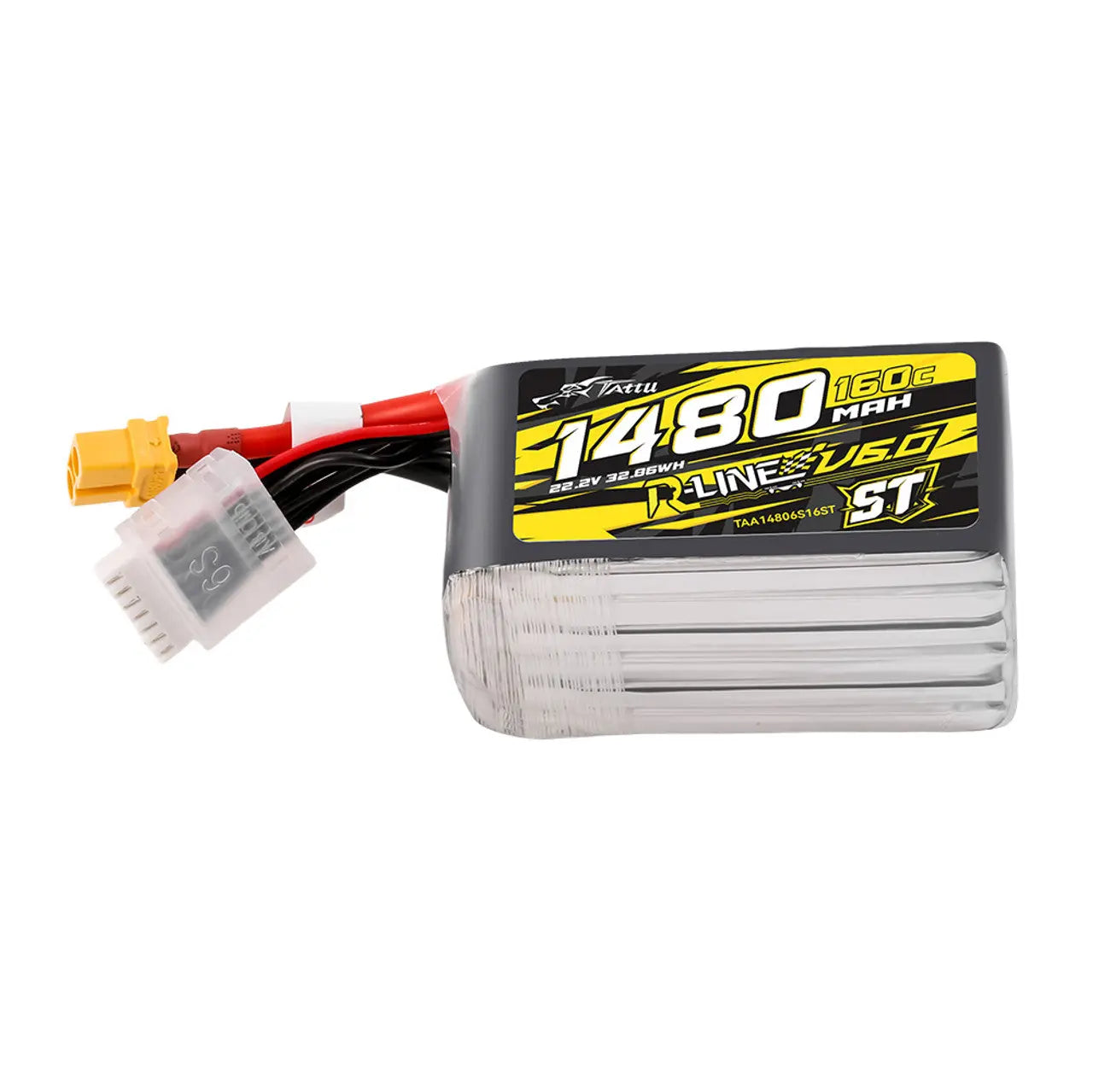

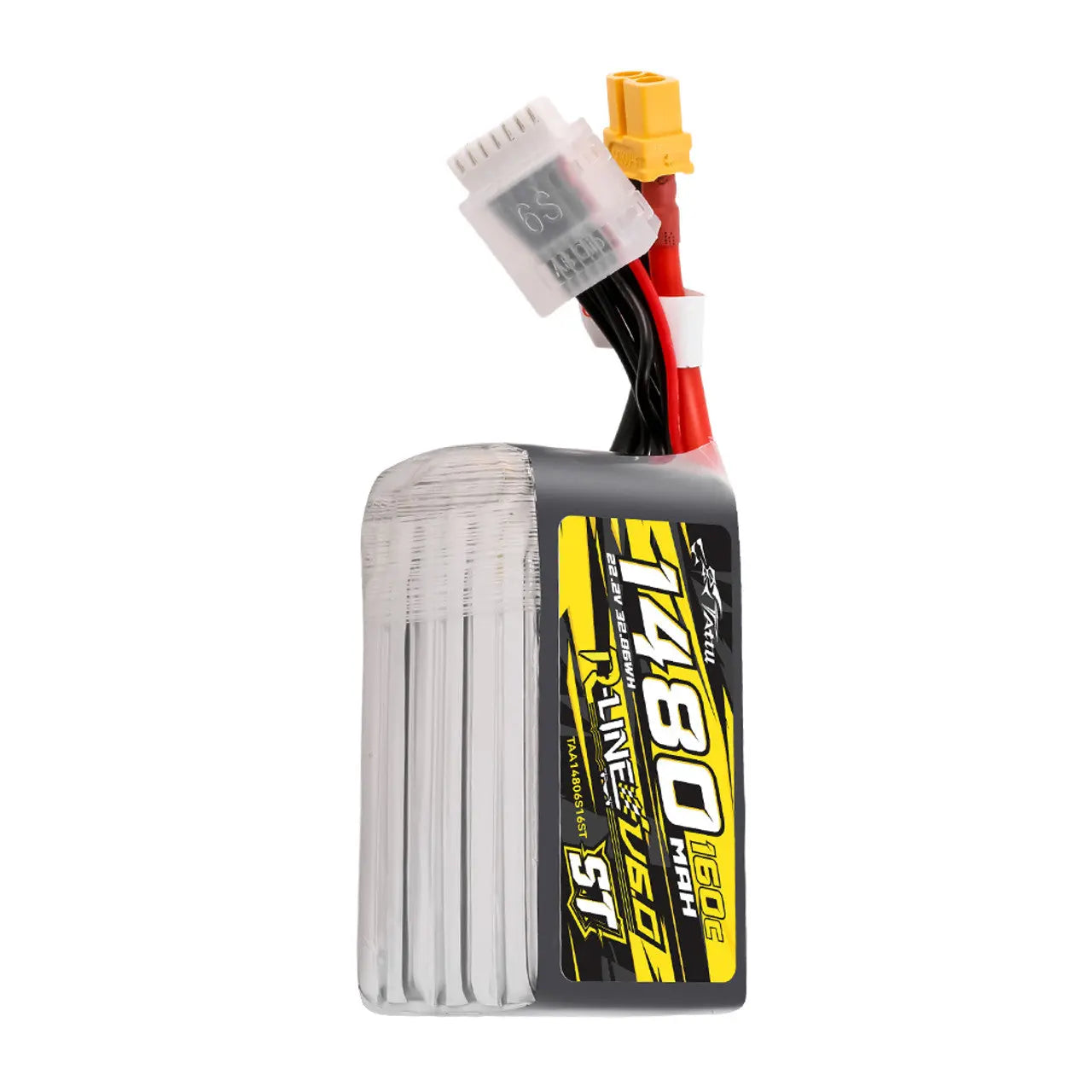

Tattu R-Line Version 6.0 1480mAh 160C 6S ST Lipo Battery with XT60 Plug

Tattu R-Line Version 6.0 Key Features

1. Higher Energy Density, Safer Design

With a new lithium salt formula and semi-solid electrolyte, the battery reaches a volumetric energy density of 316Wh/L (+26%) and a gravimetric energy density of 160Wh/kg (+17%). Reduced liquid content also means better safety and longer battery life.

2. Stable Power with 3D Conductive Tech

A combination of conductive graphite, carbon nanotubes, and graphene builds a solid 3D network, allowing efficient and steady high-current output. Power remains stable even during intense bursts.

3. Faster Response with Nano Materials

Nano-particle material and porous electrode structure shorten ion diffusion paths and reduce internal resistance (IR) by 20%, enabling quicker throttle response and stronger bursts of power.

4. Stronger Structure, Better Durability

The improved internal design enhances heat dissipation and impact resistance. Whether you’re crashing in freestyle or pushing hard in a race, R-Line V6 stays dependable.

5. Same Performence, Two Shapes

• SQ Short Version: Focused center of gravity, improved handling.
• ST Stick Version: Standard dimensions, flexible placement.

Specifications:

• Minimum Capacity: 1480mAh
• Configuration: 6S / 22.2V / 6 Cells
• Discharge Rate: 160C
• Net Weight(±20g): 220g
• Dimensions: 77*37.5*36.5mm (L x W x H)
• Charge Plug: JST-XHR
• Discharge Plug: XT60
• Shape: ST stick version

Ideal For

FPV Racing, Freestyle and Cinematic.

Click here to explore all specs, features, and models in the R-Line V6 series.

Our Advantage:

1. Your orders will be dispatched via FedEx or UPS from the USA directly.
2. Fast shipping and excellent local after-sale service guaranteed in the USA.
3. Service-priority in the online shop, like the long warranty period and the lower price for buyers.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/helicopter type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 150C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens ace and its partners fulfill the ISO9001, ISO14001 standards.

Battery Instruction: Lipo Battery Guide
