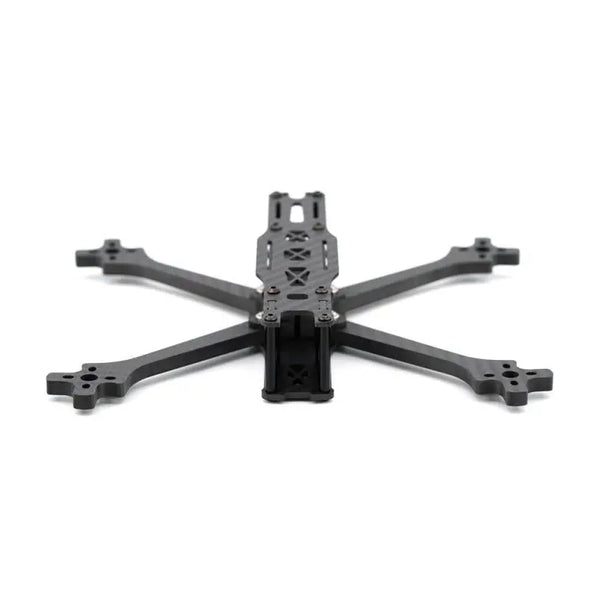

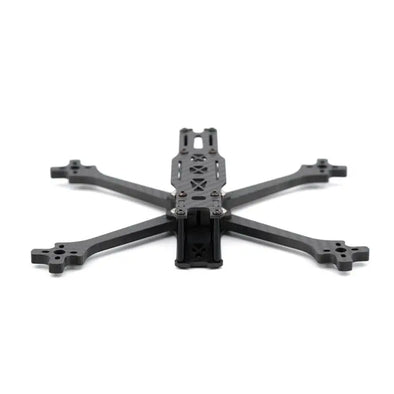

The TBS Source One V5.1 5-Inch Frame is an open-source, high-performance FPV drone frame that meets the needs of freestyle pilots. Developed by Team BlackSheep, this frame is known for its durability, versatility, and ease of build. The V5.1 upgrade brings refined structural support, minimizing vibrations and enhancing stability for smoother flights. Compatible with 5-inch propellers, it works with a broad range of FPV setups, motors, and ESCs, allowing you to fully personalize your drone.
Made from rugged carbon fiber, the Source One V5.1 frame is crafted to endure crashes and withstand tough flying conditions, making it perfect for beginners and advanced pilots alike. With a straightforward design, the frame is easy to assemble and repair, giving pilots greater freedom in the field. Push your limits with confidence and capture exceptional aerial footage using this reliable, customizable FPV frame.
The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
ABOUT THE PROJECT
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
3D Printed Parts (STL) also avaialble on github! (Coming Soon)
PACKAGE CONTAINS:
1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
1x Screw & Standoff set
TECHNICAL SPECIFICATIONS:
Wheelbase 5"
226
Top Plate
2mm
Middle Plate
2mm
Bottom Plate
2.5mm
Arms Spacer
6mm
Camera plate
2mm
Standoff height
30 and 22mm
Arm thickness 5"
6mm
Stack Mounting
30.5 × 30.5mm & 20 x 20
Weight 5"
*123.5g
HARDWARE:
16X M3x10 allen screw
4X M3x12 allen screw
4X M3x14 allen screw
4X OD 5mm M3 30mm standoff
4X OD 5mm M3 22mm standoff
8x M3 press insert nut
RECOMMENDED PARTS:
The part recommendations are put together by our engineers and pilots. We strive for reliability and high quality in all of our selections, which may cost a bit extra but it allows you to enjoy the frame much more!
BUDGET BUILD (~$230)
FC: HGLRC Titan 60A FC AIO ESC: 4x Flycolor Raptor 30A BlHeli-S Motors: 4x MasterPilot 2750kV or MasterPilot PRO 2750kV Camera: RunCam Racer 5 (1.8mm) VTx: TBS Unify Pro RACE or TBS Unify Pro HV SMA 800mW Antenna: TBS Linear Whip or TBS Triumph SMA Props: HQ V1S Props or Gemfan Hulkie or Gemfan Flash
TBS POWERCUBE BUILD (~$300)
FC, ESC, VTx, OSD: TBS PowerCube FPVision 2in1 Motors: 4x MasterPilot 2750kV or MasterPilot PRO 2750kV Camera: RunCam Racer 5 (1.8mm) Antenna: TBS Linear Whip or TBS Triumph SMA Props: HQ V1S Props or Gemfan Hulkie or Gemfan Flash
PRO FREESTYLE BUILD (~$350)
FC: BrainFPV Radix & PDB ESC: 4x TBS BulletProof DSHOT600 25A ESC Motors: 4x ETHIX Mr.Steele SILK V2 2345kV Motor Camera: RunCam Racer 5 (1.8mm) VTX: TBS Unify Pro HV 800mW Antenna: TBS Linear Whip or TBS Triumph SMA Props: HQ V1S 5x4.5x3
